HKS 22004-AN004 Exhaust Slide Cam Sprocket for NISSAN SR20DE(T) Engine

Description HKS 22004-AN004 Exhaust Slide Cam Sprocket for NISSAN SR20DE(T) Engine

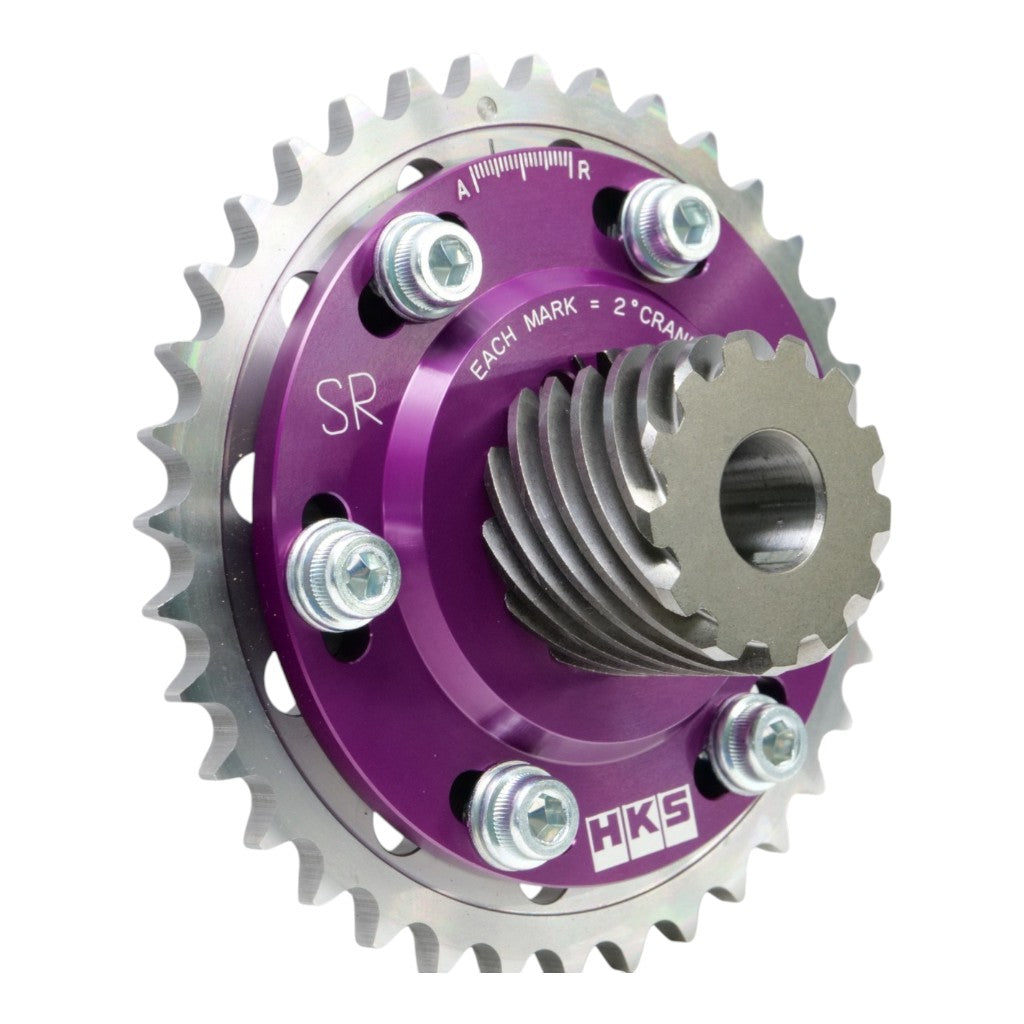

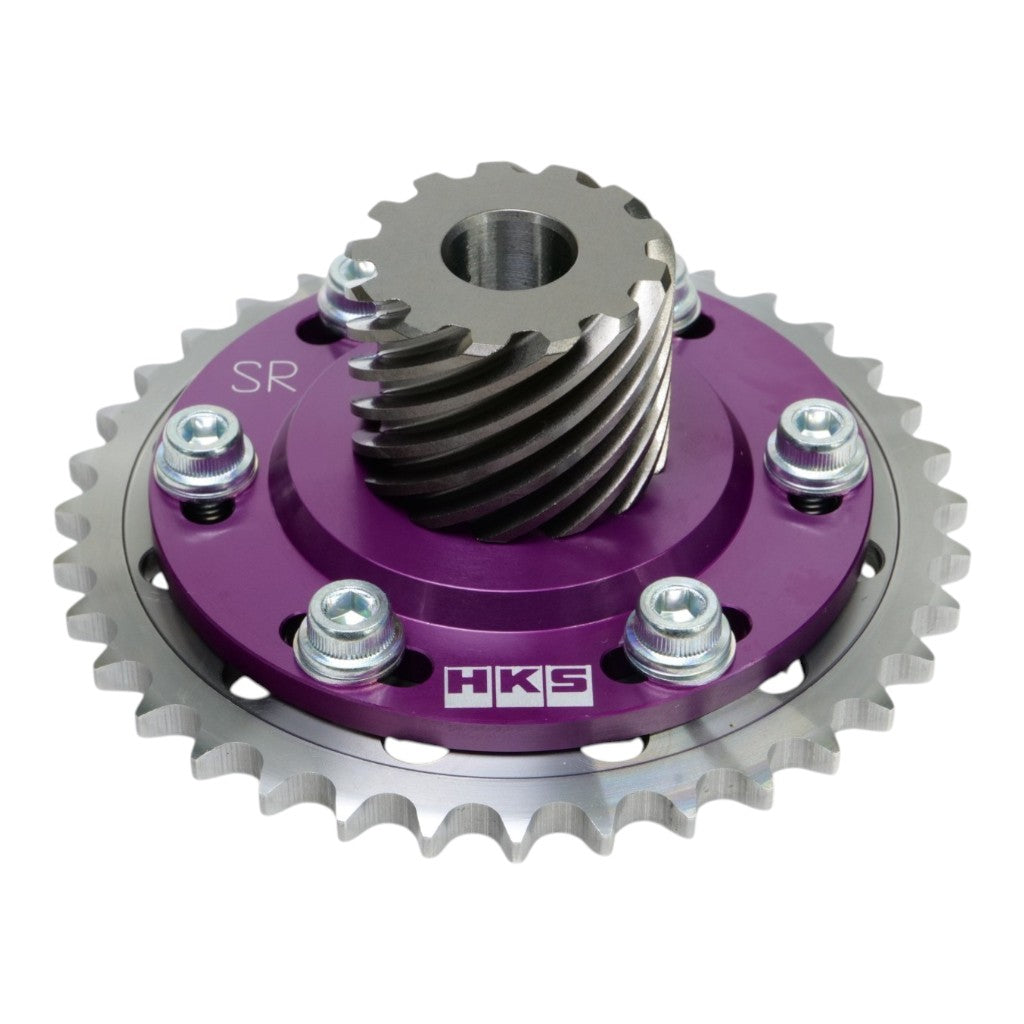

The HKS Slide Cam Sprocket for SR20DE(T) engines is an updated version of a well-established component, designed to enable precise adjustment of camshaft timing. Retaining its proven functionality, the latest revision includes a pre-installed drive gear on the exhaust (EX) side, simplifying installation and eliminating the need to reuse or source an OEM gear.

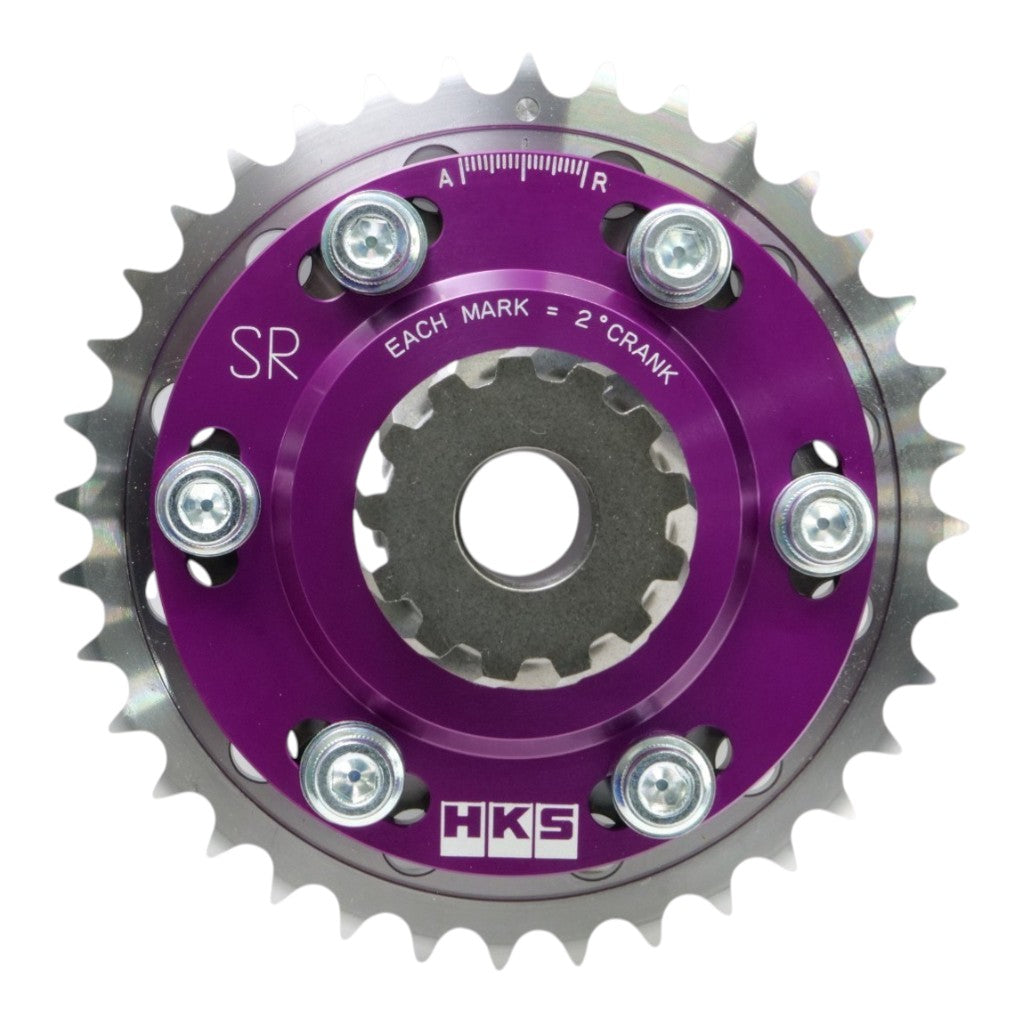

This adjustable cam sprocket allows accurate valve timing correction in response to engine modifications such as camshaft profile changes, increased duration, and altered overlap. With an adjustment range of ±20° (crank angle) and scale markings corresponding to approximately 2°, it enables precise tuning. The center position aligns with OEM timing, while engraved “A” (Advance) and “R” (Retard) indicators provide clear visual reference for accurate setup.

The component is effective with both stock and performance camshafts, with optimal results achieved when paired with HKS camshafts and recommended valve timing settings.

• Adjustable cam timing for precise engine tuning
• ±20° crank angle adjustment range with ~2° increments
• Pre-installed drive gear on EX side for simplified installation
• Clear advance and retard markings for accurate adjustment
• Compatible with stock and upgraded camshaft configurations

Specifications:

• Application: SR20DE / SR20DET engines
• Adjustment Range: ±20° (crank angle)
• Scale Increment: ~2° per mark
• Reference Position: OEM equivalent

Remarks:

• Compatible with exhaust (EX) side of longitudinal engine applications
• Pre-pressed drive gear eliminates the need to transfer OEM gear
