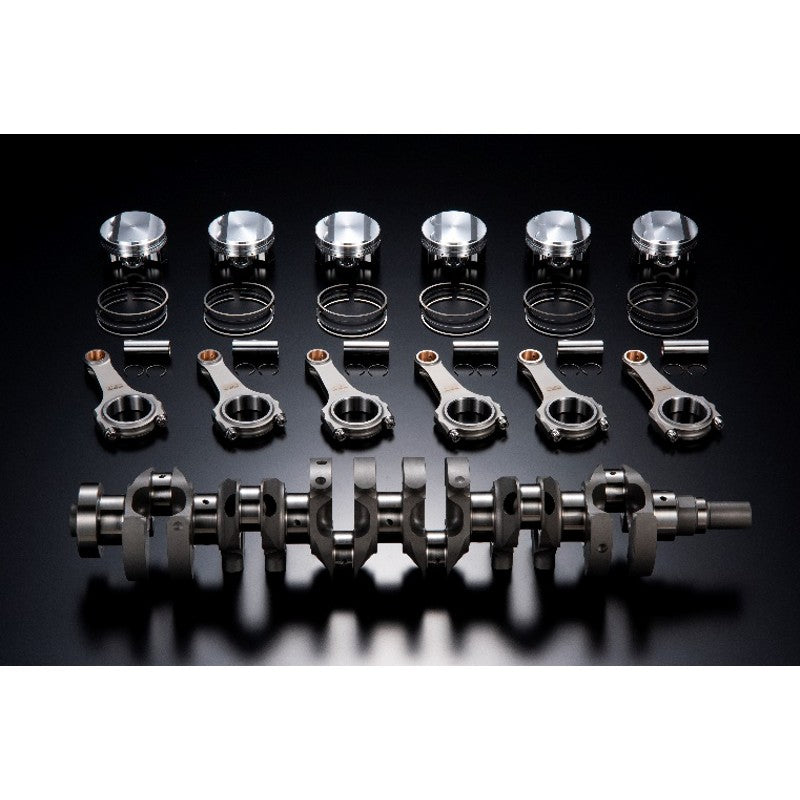

HKS 21004-AN023 Capacity Upgrade Kit RB26 2.8L dia. 86.5 STEP2 BCD for NISSAN Skyline GT-R (R32/R33/R34)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 21004-AN023 Capacity Upgrade Kit RB26 2.8L dia. 86.5 STEP2 BCD for NISSAN Skyline GT-R (R32/R33/R34)
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Based on the 2.8L STEP 2 kit and upgraded with lightweight, high-rigidity forged "BCD" pistons.

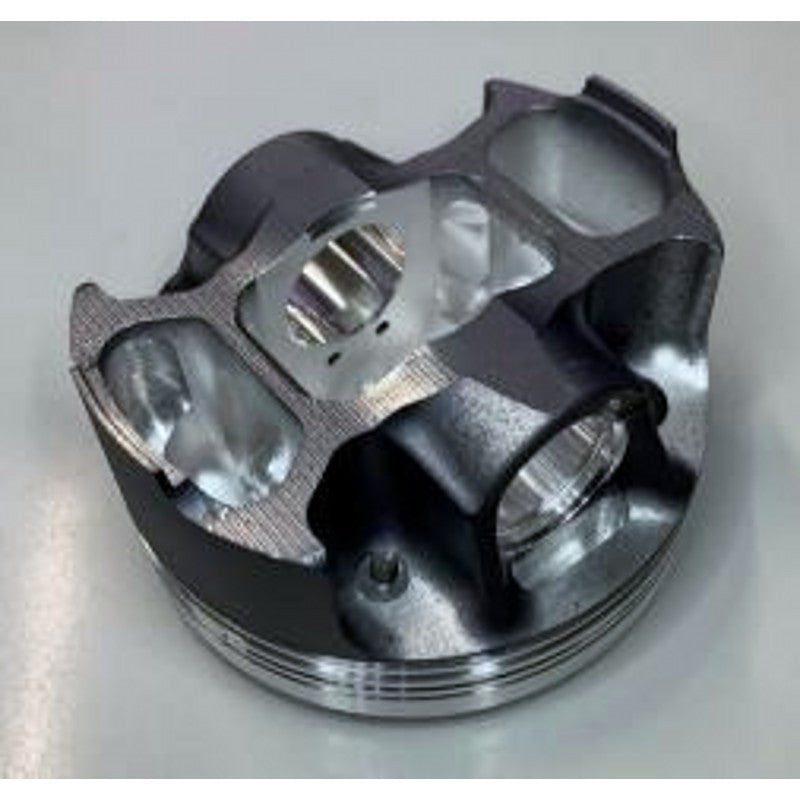

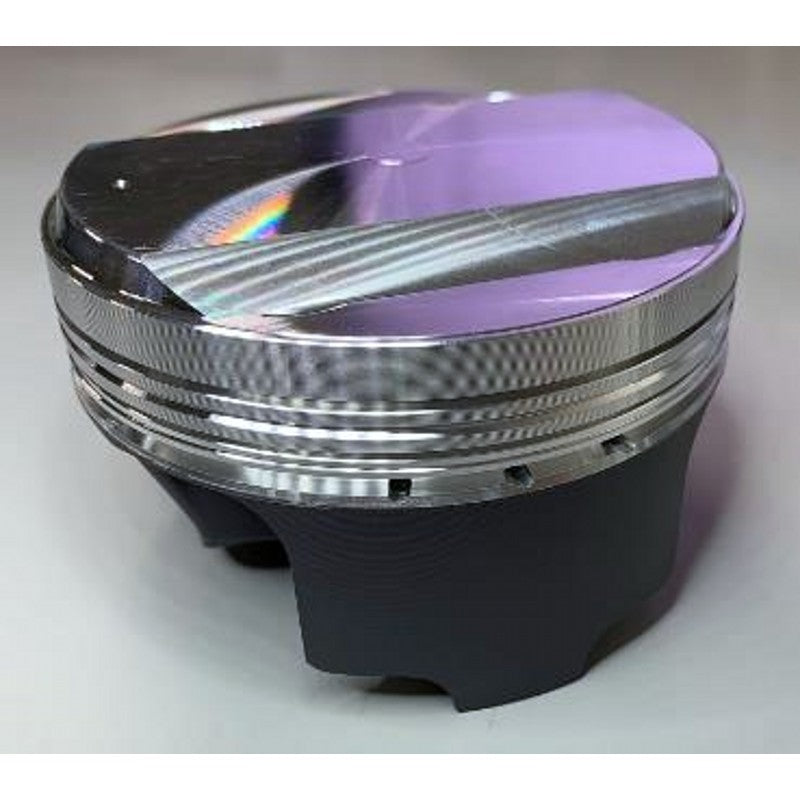

Piston Kit
- It achieves a thin wall by employing the A2618 alloy, which is resistant to high temperatures.
- We have increased rigidity structurally by adopting a bridge structure.
- Profile optimization has shortened the Piston skirt height and reduced weight.
- Short piston pit with the lightweight boss part.
- Friction is reduced with a two-layer coating of fluorocarbon resin and molybdenum.

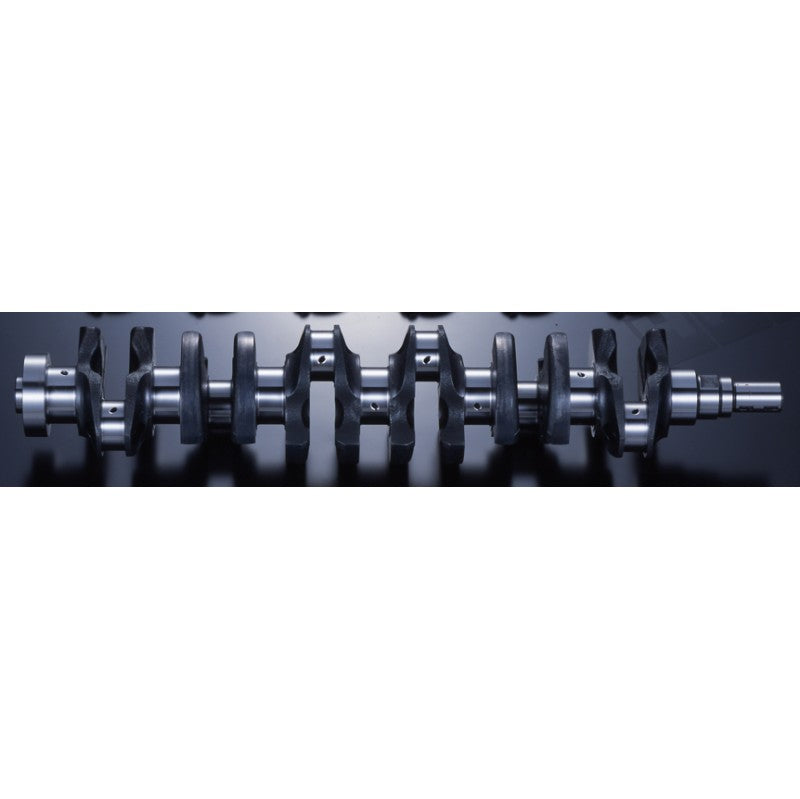

Crankshaft stroke 77.7 mm
- The exclusive material is used, and adopting a full counter provides a good rotation balance and makes it possible for high rotation.
- The response improves by reducing the weight of the pin journal and the center part.

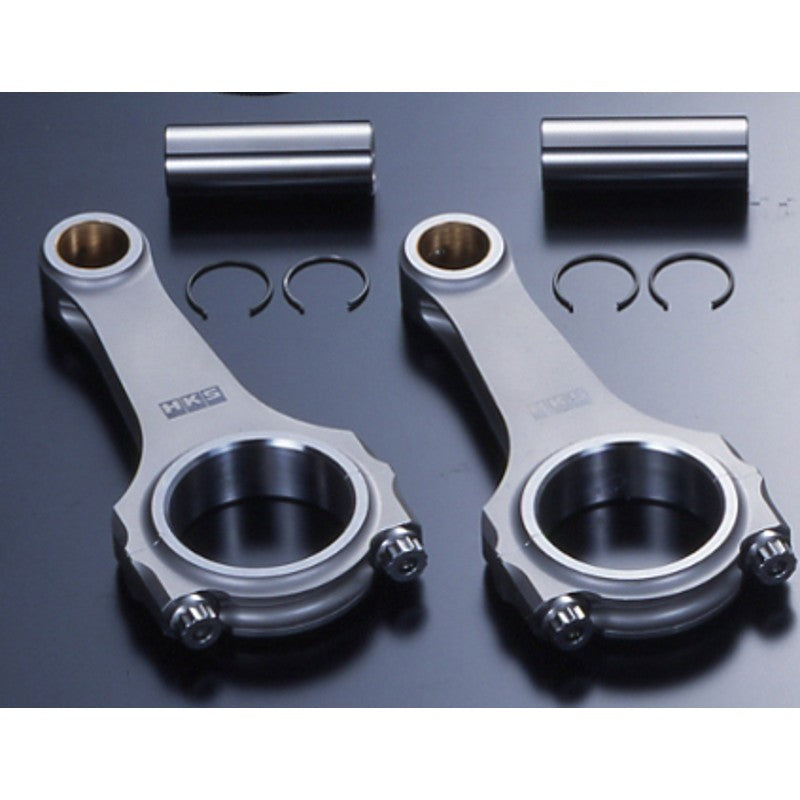

Connecting Rod
- Exclusive forged material is used. An H-beam is adapted to withstand a powerful explosion load. WPC treatment is applied to the surface to improve fatigue strength.
Specification
|
| HKS 2.8L KIT | Stock |
| Bore | 86.5 mm | 86.0 mm |
| Stroke | 77.7 mm | 73.7 mm |
| Compression Ratio (t=1.2) | 8.7 | - |
| Allowable rotating speed | 9,000 rpm | 7,600 rpm |
| Displacement | 2,740 cc | 2,568 cc |
