HKS 21004-AN022 Capacity Upgrade Kit BCD STEP-2 for NISSAN Sklyline GT-R (R32/R33/R34) RB26 2.8L
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 21004-AN022 Capacity Upgrade Kit BCD STEP-2 for NISSAN Sklyline GT-R (R32/R33/R34) RB26 2.8L
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
BCD Piston Kit + Connecting Rods + Crankshaft
Based on the 2.8L STEP2 kit and upgraded with lightweight, high-rigidity forged "BCD" pistons.

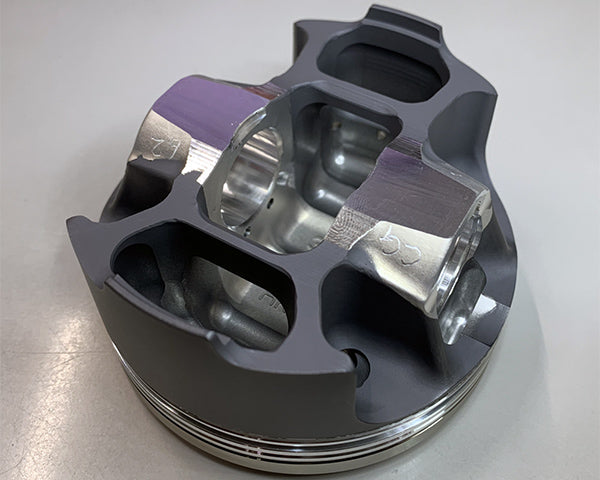

BCD = A bridge design is a truss structure that is employed at the back of the piston to enhance the rigidity of the piston.
Specifications
| HKS 2.8L KIT | Stock | |
|---|---|---|
| Bore | 87.0mm | 86.0mm |
| Stroke | 77.7mm | 73.7mm |
| Compression Ration (t=1.2) | 8.7 | - |
Max RPM |
9,000rpm | 7,600rpm |
| Displacement | 2,771cc | 2,568cc |

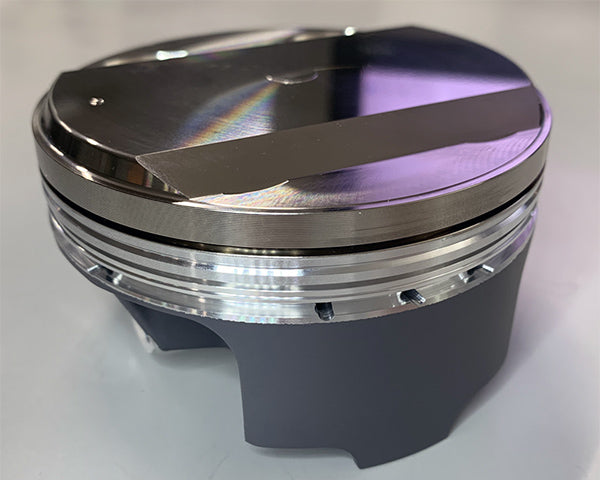

Piston Kit, Piston weight: 334g Piston Pin weight: 97g
- Lightweight A2618 aluminum alloy billet piston with high temperature strength
- Bridge design improves structural rigidity.
- Profile optimization has shortened the Piston skirt height and reduced weight.
- Short piston pit with lightweight boss part.
- 2 layers of molybdenum coating to eliminate friction and improve initial functionality of the whole system.

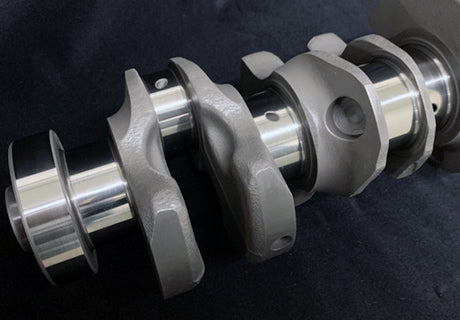

Crankshaft Stroke 77.7 mm
- Billet full counter crankshaft
- Counterweights are efficiently located to decrease overall weight and improve overall balance.
- Response is improved by reducing the weight of the pin journal and the center section by cutting the core of the pin journal to reduce the weight.

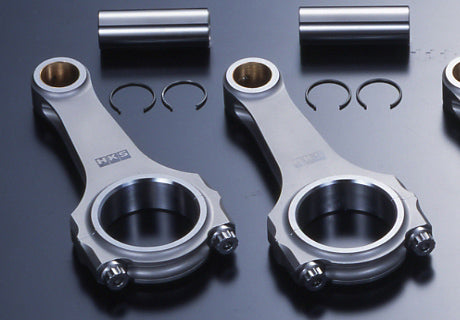

Connecting rods
- Nickel Chrome Steel Billet H-Beam Connecting rods.
- WPC treatment to improve strength
CAPACITY UPGRADE KIT RB26 2.8L LINEUP
| STEP ZERO | STEP 1 | STEP 2 | NEW STEP 3 | NEW HIGH RESPONSE | |
|---|---|---|---|---|---|
| Concept & Target | Capacity upgrade in engine O/H Mainly driving in street Improve response at an affordable price |
Improve torque & power by capacity and turbo upgrade Increase allowable RPM by high lift camshaft |
Increase more power by big turbo without losing response Increase allowable RPM by high lift camshaft Mainly for track race |
Next stage of STEP2 in high power and response Latest technology for ultimate performance |
Ultimate response with new designed ultra lightweight components Latest technology for ultimate performance |
| Recommend Turbo | Stock GTIII-SS | GTIII-SS GTIII-2530 | GTIII-RS GTIII-4R | GTIII-5R | GTIII-2530 |
| Allowable RPM | 8000rpm | 8500rpm | 9000rpm | 9000rpm | 9000rpm |
| Comp. ratio (t=1.2) | 8.7 | 8.7 | 8.7 | 8.7 | 8.7 |
| Max power (approx.) | 550PS | 600PS | 800PS | 900PS | 700PS |
| Piston | Forged φ86.5 or 87 - 21pin | Forged φ86.5 or 87 - 21pin | Forged φ87 - 21pin Nickel plating OBER coating |
A2618 alloy billet φ87 - 22pin Bridge Structure Double-layer MOLYBDEN coating |
A2618 alloy billet φ87 - 22pin Bridge Structure Double-layer MOLYBDEN coating |
| Piston Weight | 401g | 401g | 401g | 324g | 324g |
| Piston Pin | φ21 (105.2g) | φ21 (105.2g) | φ21 (105.2g) | φ22 (97g) | φ22 (97g) |
| Connecting Rod | HKS Forged billet H-beam φ2 (SCM) |
HKS Forged billet H-beam φ21 (SCM) |
HKS Forged billet H-beam φ21 (SNCM) |
HKS Forged billet H-beam φ22 (SNCM) |
HKS Forged billet H-beam φ22 (SNCM) |
| Crankshaft | Forged lightweight full counter (20.1kg) |
Forged full counter (24.4kg) |
Forged full counter (22.9kg) |
Billet full counter (20.6kg) |
Billet full counter (19.3kg) |
| Moment of inertia Ratio ?to STEP ZERO) |
100% | 132% | 119% | 113% | 102% |
| Allowable Torque | 55 kgf?m | 60 kgf?m | 80 kgf?m | 120 kgf?m | 70 kgf?m |
