HKS 21004-AH002 Piston and Connecting Rod STEP 3 for S07A Engine
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 21004-AH002 Piston and Connecting Rod STEP 3 for S07A Engine
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
The enhanced piston and connecting rod correspond to the high supercharging pressure and output for the S07A engine.

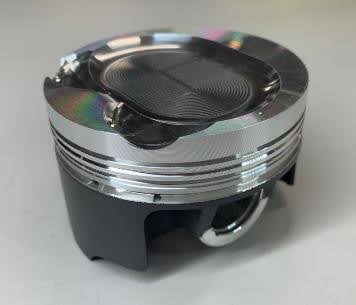

Piston
- It achieves lightweight by allowing the wall thinner by adopting the A2618 material with high-temperature strength.
- The lightweight comes from eliminating waste material by billet manufacturing.

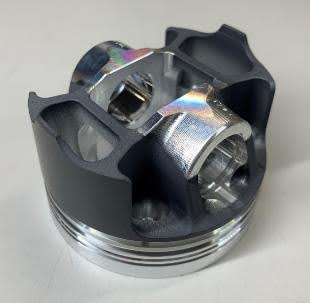

- Rigidity has been structurally improved by adopting the bridge structure. As a result, the product achieves a perfect balance between lightweight and rigidity.
- The crown-shaped surface has the same shape as the OEM one.
- It also achieves improved anti-seizure properties and reduced friction by adopting a 2-layer coating.
Connecting Rod
- Billet chrome steel I-beam connecting rod. It increased the strength by approximately 74% against the OEM product.
- Applying the WPC treatment on the surface to improve the fatigue strength.
Specification
- Bore 64.0 mm
- Stroke 68.2 mm
- Compression Ratio (t=0.55) 9.2
- Displacement 658 cc
