HKS 21003-AT009 Piston Kit Step 3 (D-87.5) for TOYOTA GR Yaris (G16E-GTS) 2020- Photo-0

HKS 21003-AT009 Piston Kit Step 3 (D-87.5) for TOYOTA GR Yaris (G16E-GTS) 2020-

AED 11,575.87

Tax included. Shipping calculated at checkout

HKSP/N: 21003-AT009 GTIN: 4957266631898
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

HKS 21003-AT009 Piston Kit Step 3 (D-87.5) for TOYOTA GR Yaris (G16E-GTS) 2020-

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

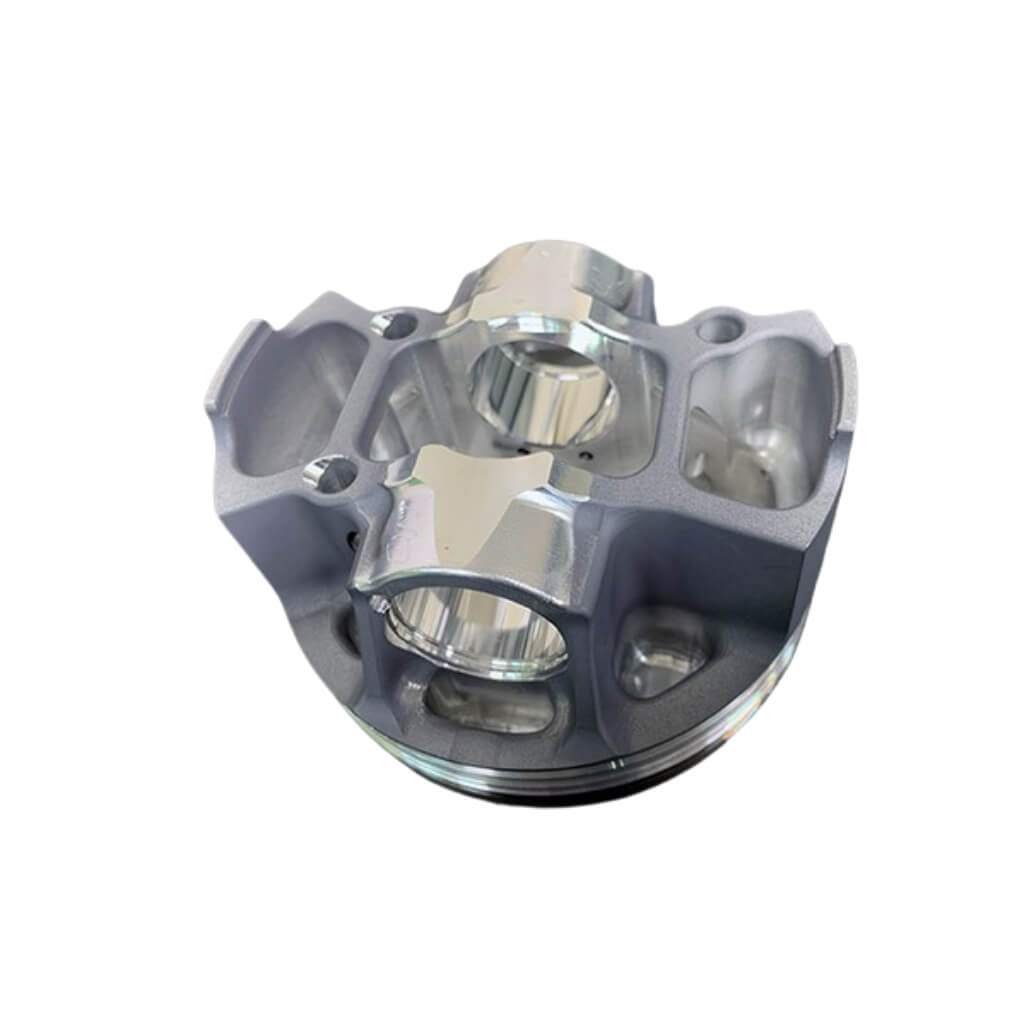

Billet Piston Kit Bore: d-87.5 / Weight: 352g

  • To enhance knock resistance and achieve higher compression ration, we have adopted HKS's unique "Triple Tumble" crown structure. (Triple Tumble crown structure)
  • The piston crown's design creates a third tumble flow on the intake side as the piston moves upward. This quickly spreads the flame near the edge of the intake side, which helps prevent engine knock.
  • High-temperature-resistant A2618 material and precision machining combine to deliver significant weight.
  • "Bridge Concept Design" (BCD) structure enhances structural rigidity and contributes to weight reduction.
  • Three oil jets deliver cooling oil precisely for effective cooling.
  • Nickel plating above the top ring groove improves knock resistance and wear resistance.
  • A two-layer coating enhances anti-seizure properties and reduces friction.
  • Original shortening piston pin design reduces the weight of the piston pin boss section.
  • Titanium coating on the top ring enhances durability.
  • Precisely machined edges prevent heat spots.
