HKS 15004-AT114 Oil Cooler Kit for TOYOTA GR Yaris (GXPA16) 2020-

Description HKS 15004-AT114 Oil Cooler Kit for TOYOTA GR Yaris (GXPA16) 2020-

The HKS Oil Cooler Kit is engineered to provide stable oil temperature control for high-output engines and circuit driving conditions. The renewed design ensures compatibility with both GR Yaris GEN1 and GEN2 models, including MT and DAT configurations.

To support GEN2 models equipped with a sub-radiator and DAT transmission, the oil line routing has been revised and a newly developed filter mount has been introduced. When combined with the factory water-cooled oil cooler, the system effectively suppresses oil temperature rise during continuous high-load or track driving.

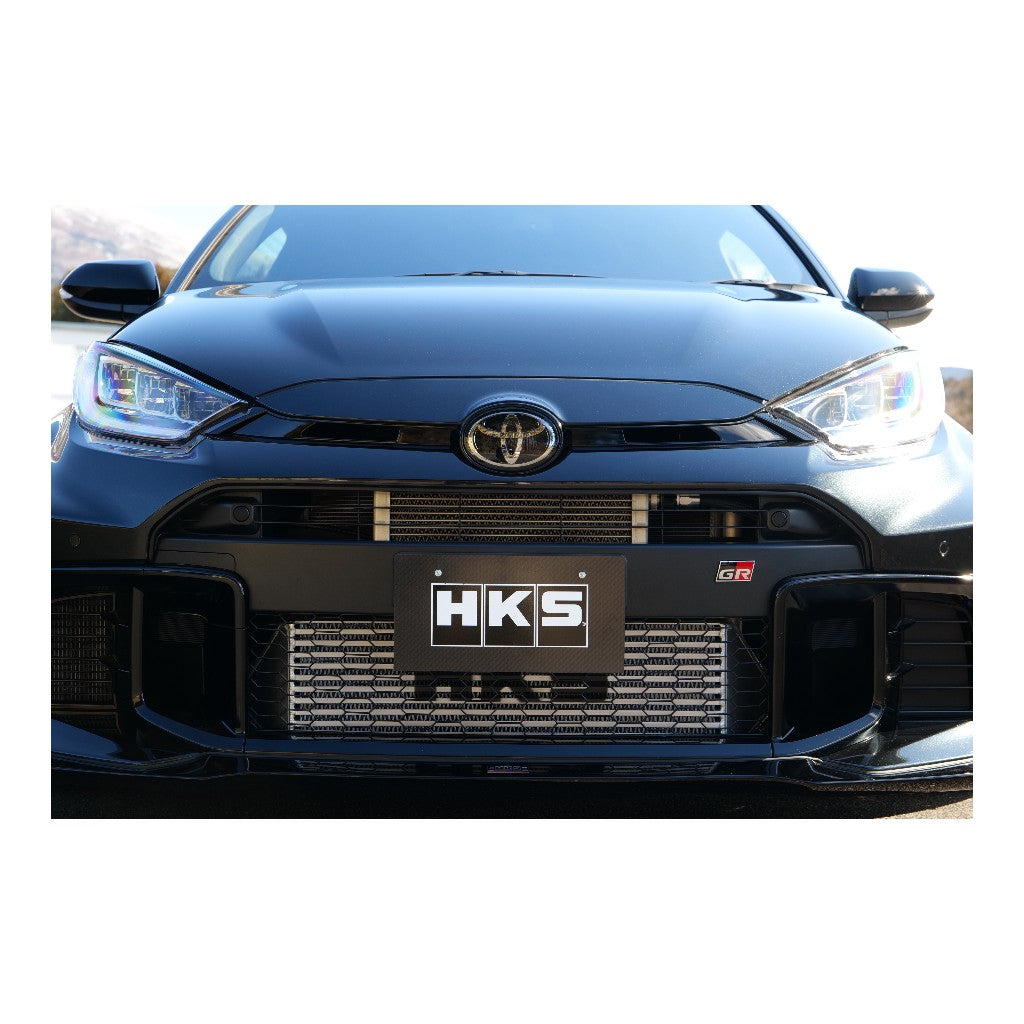

A turn-flow type core is utilized to achieve high cooling performance despite limited core surface area. The vehicle-specific core layout maximizes airflow through the front bumper opening while minimizing any influence on engine coolant temperature.

• Stable oil temperature control for track and high-load use
• Turn-flow type oil cooler core
• Revised oil line routing for GEN2 compatibility
• Newly designed oil filter mount
• Compatible with GEN1 and GEN2 (MT / DAT)

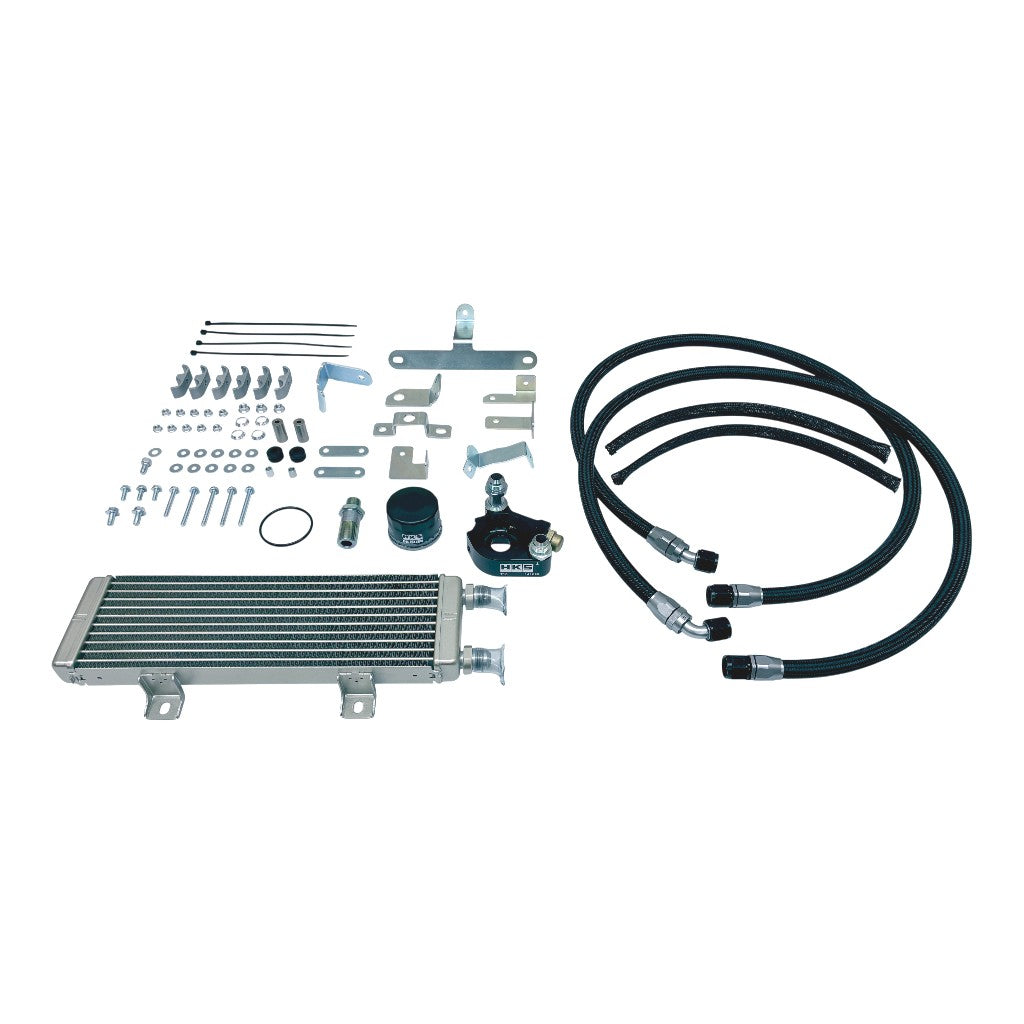

Kit Components:

• Oil cooler core
• Mounting brackets
• #10 black mesh hoses
• Oil adapter
• Oil filter
• Installation hardware

Installation Notes:

• Minor vehicle modification required: radiator upper air guide plate and engine under cover (LH).
• Engine oil capacity increases by approximately 500 ml after installation.
• Use dedicated oil filter HKS Part No. 52009-AK015.

Remarks:

• Compatible with vehicles equipped with Cooling Package.
• Installable on MT and DAT models (GRMN compatibility not confirmed).
