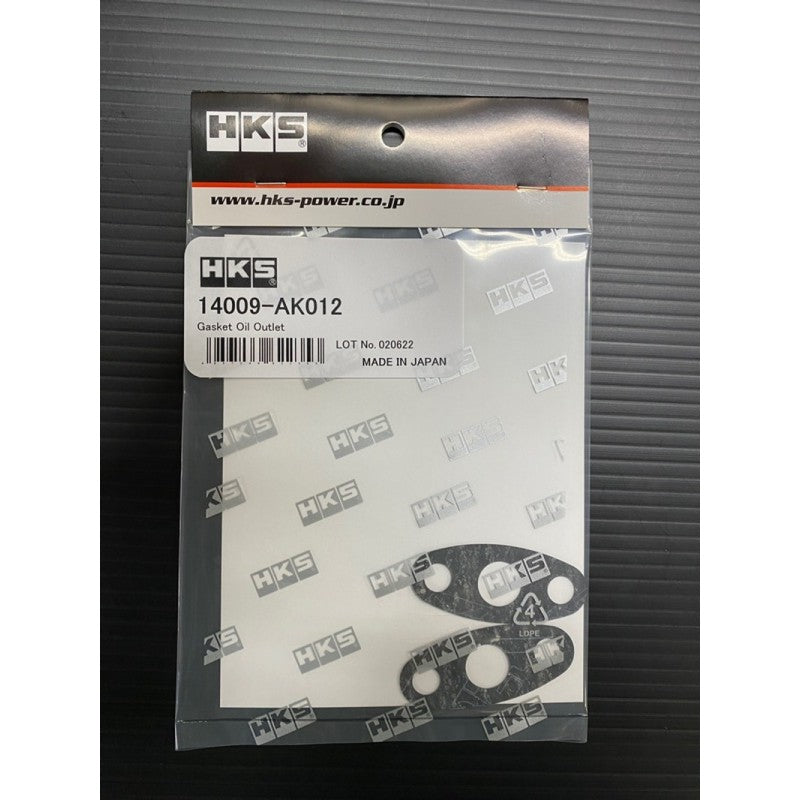

HKS 14009-AK012 Gasket for Oil Outlet GT49
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 14009-AK012 Gasket for Oil Outlet GT49
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
Pickup available, usually ready in 1 hour
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
The gasket for the oil outlet for HKS GT Turbine Series. Functional spare parts for maintenance and repair.
Summary
- Specially designed for the oil outlet shape in HKS GT Turbine Series (GT4950_BB, GT5565_BB, GT6290_BB).*
- Compatible with the oil inlet for GT75100_BB, GT75115_BB
Specification
- Compatible bolt size : M8
- Mounting hole pitch : 38 mm
- Flow path diameter: 13.5 mm
- Thickness : 0.5 mm
Components
- Gasket for Oil outlet * 2 pcs
Compatibility
| GT4950_BB | GT5565_BB | GT6290_BB | GT75115_BB | GT75115_BB | |
| OIL INLET | - | - | - | ● | ● |
| OIL OUTLET | ● | ● | ● | 14009-AK002 | 14009-AK002 |
* The existing 14008-AK001 cannot use because the outline of the gasket will contact the turbo main unit when attached.
