HKS 14007-AH006 Fuel Upgrade Kit for HONDA S2000 (F20C) 1999-2004
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
HKS 14007-AH006 Fuel Upgrade Kit for HONDA S2000 (F20C) 1999-2004
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Fuel Upgrade Kit containing high-capacity injectors, fuel pump, and restrictor for GT Supercharger.
- 6 jet injection hole.
- Improved injector performance has increased the output volume, while shorting the invalid injection time compared to the previous 650 cc (yellow) type. (Voltage 14V and Fuel pressure 300 kPa Former 650 cc: 1350 μsec >>> New 750 cc: 1030 μsec).
- No modifications are required for installation. The factory wiring harness can be used without modification.
- O-rings (2-piece) and spacer (backup ring) have been included to the fuel line connector for improved sealing.
- All injectors are tested. 4 injectors with similar performance are combined into one kit for one vehicle.
- Fuel Upgrade Kit for AP1, which includes a dia.44 restrictor for GT Supercharger and GT2 Supercharger and a large capacity fuel pump (at 260 I/h 300 kPa).

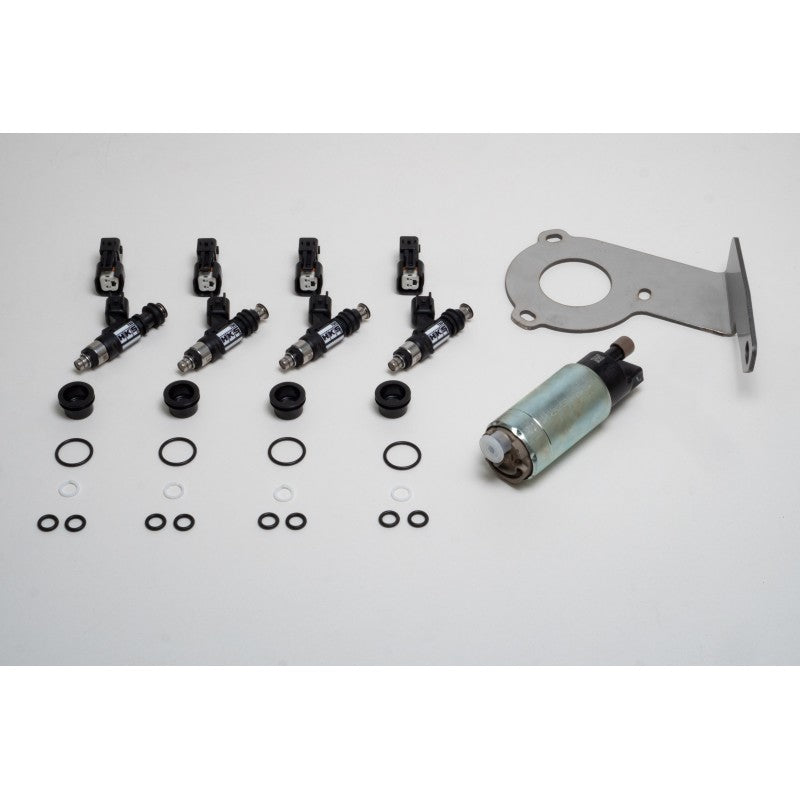

Components
- Injector (x4)
- Conversion Connector
- O-Ring
- Backup Ring (Spacer)
- Head-Side Collar

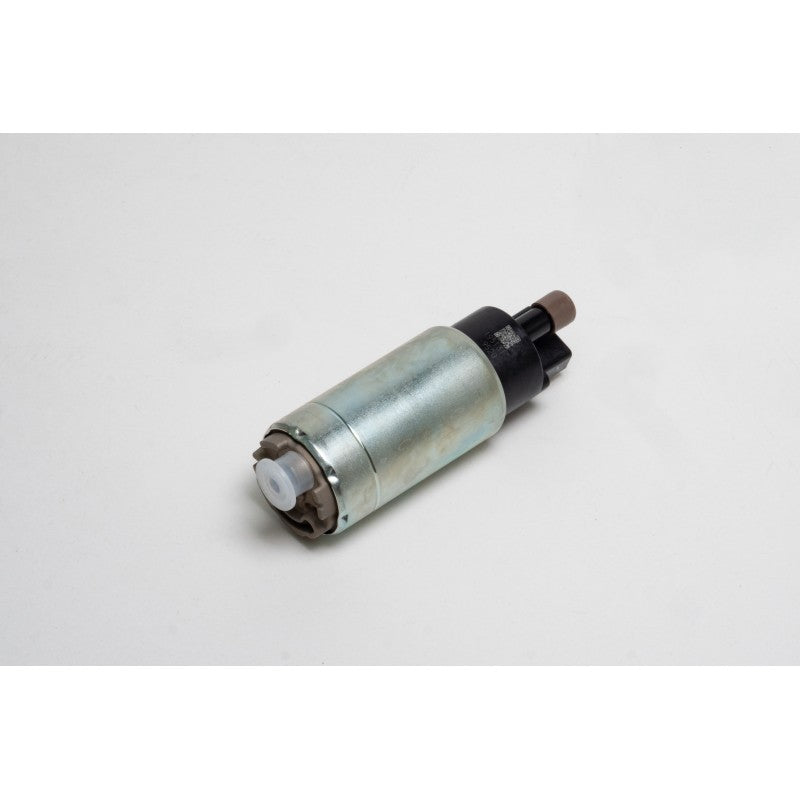

- High-Capacity Fuel Pump
- Dia.44 restrictor, etc.
Note
- Please upgrade the fuel rail according to vehicle specifications.
Invalid Injection Time
| Supply Voltage （V） | 8 | 10 | 12 | 14 | 16 | 18 |
| 300kPa | 2470 | 1680 | 1270 | 1025 | 855 | 710 |
| 350kPa | 2715 | 1790 | 1335 | 1070 | 880 | 725 |
