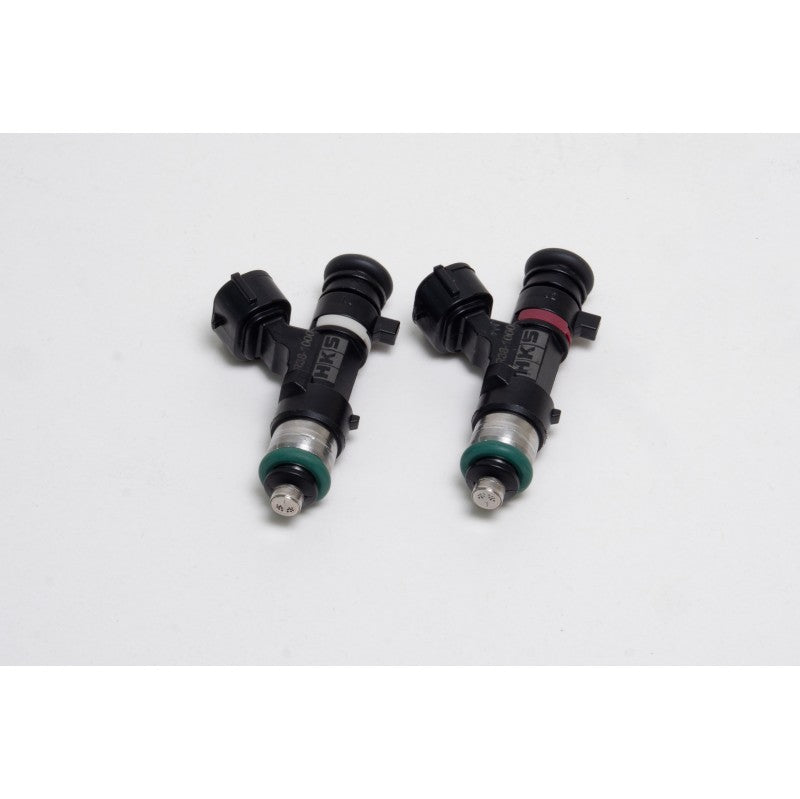

HKS 14002-AN005 Injector Upgrade Kit for NISSAN GT-R (R35)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
- Specifically designed injectors that directs fuel to the valve bevels to match the port shape of the VR38.
- While standard high-capacity injectors have one jet, which hits the wall surface of the port junction directly. This product has two jets that matches the port geometry. The 14-hole layout allows for angled injection, allowing fuel to be directed between the valve stem and port wall towards the valve bevel.
- Stabilizes combustion by preventing fuel from adhering to walls and reduces fuel flow into the combustion chamber in a liquid state.
- The stock connector shape eliminates the need for modification.
- Designed to match the static flow rate of one unit in the range of ±1%.

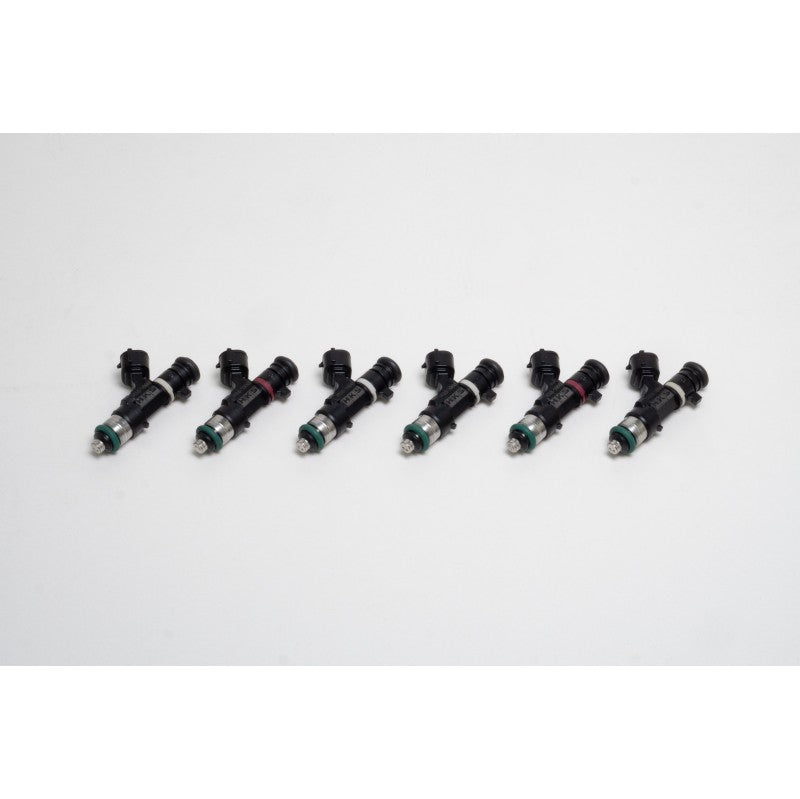

Components
- Injectors for #2 and #5
- Injectors for #1, #3, #4, #6
Note
- This product is not intended to use as an injector for twin injector kits because it has an injection angle.
- Please upgrade the fuel pump and fuel rail according to vehicle specifications.
Invalid Injection Time: 350 kPa
| Supply Voltage （V） | 8 | 10 | 12 | 14 | 16 | 18 |
| Invalid Injection Time (μsec) | 2205 | 1245 | 816 | 590 | 449 | 321 |
