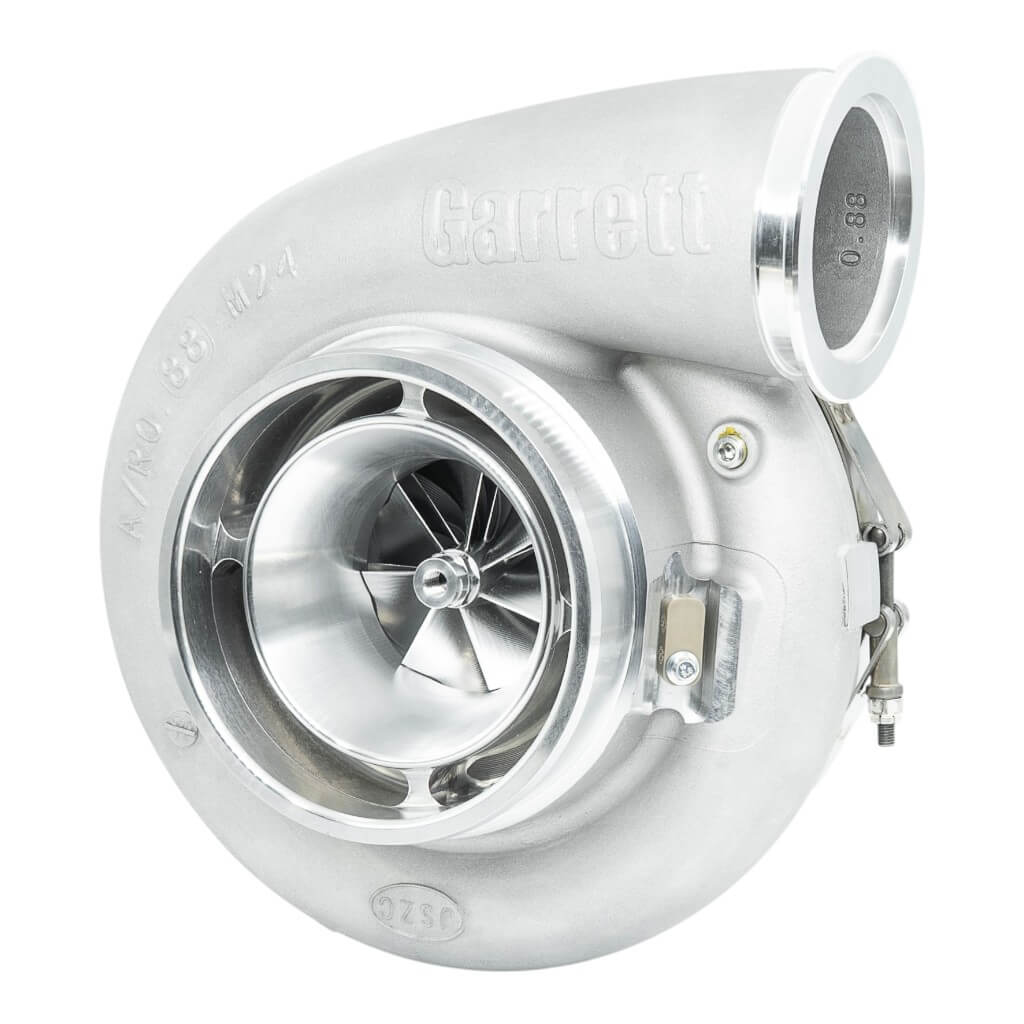

GARRETT 953234-5001S Turbocharger Supercore G-XRace GXR47-76 Ultra Street, 76mm
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 953234-5001S Turbocharger Supercore G-XRace GXR47-76 Ultra Street, 76mm
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description GARRETT 953234-5001S Turbocharger Supercore G-XRace GXR47-76 Ultra Street, 76mm
The GARRETT G-XRace GXR47-76 turbocharger supercore is engineered for high-performance drag racing applications, specifically designed for Ultra Street classes with a 76.6 mm compressor inducer regulation. Incorporating advanced XBoost technology, this unit delivers increased power output, enhanced efficiency, and improved boost capability under extreme operating conditions.
Specifications
- Model: GXR47-76
- Part Number: 953234-5001S
- Horsepower Rating: 1700 hp
- Compressor Inducer: 76.6 mm
- Compressor Exducer: 116 mm
- Turbine Inducer: 93 mm
- Turbine Exducer: 88 mm
- XBoost technology improves overall power and performance
- Increased compressor flow capacity for enhanced airflow performance
- Improved pressure ratio capability for higher boost pressure
- High-flow efficiency delivers cooler and denser intake air
- Lightweight aluminum backplate reduces turbocharger weight
- Flange-style speed sensor port for accurate turbo speed monitoring
- Designed for Ultra Street drag racing classes (76.6 mm inducer rule)
