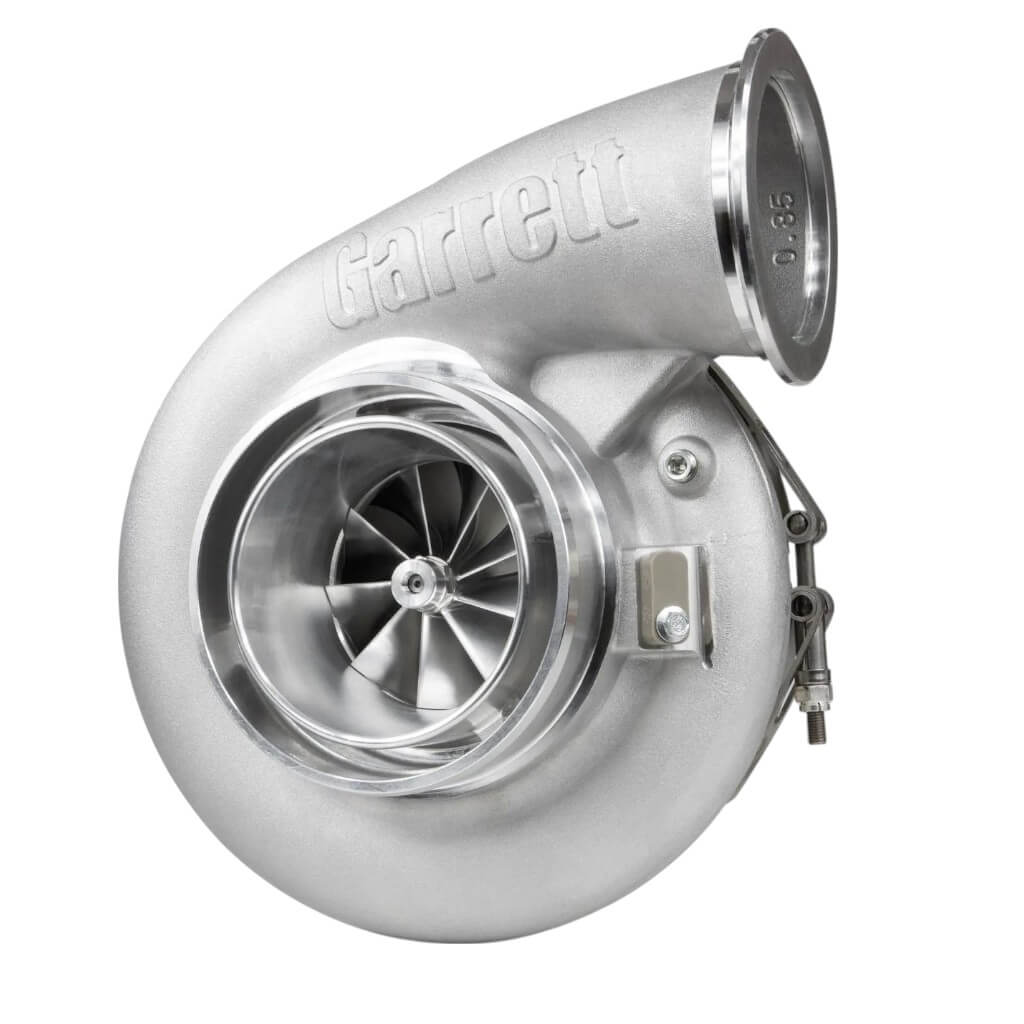

GARRETT 938339-5004S Supercore G-Series II G45-1610 Photo-0

GARRETT 938339-5004S Supercore G-Series II G45-1610

Sale priceAED 13,635.17

Tax included. Shipping calculated at checkout

GARRETTP/N: 938339-5004S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 04.09.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 938339-5004S Supercore G-Series II G45-1610

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description GARRETT 938339-5004S Supercore G-Series II G45-1610

The Garrett G45-1610 Supercore from the G-Series II line delivers exceptional power potential and race-ready efficiency for high-performance applications. Built on decades of motorsport engineering, this upgraded unit integrates the latest compressor aerodynamics to produce up to 10% higher flow than its G-Series Gen I predecessor. Designed for compatibility with existing Gen I turbine and compressor housings, the G45-1610 supports up to 1610 horsepower and is suitable for engine displacements ranging from 2.0L to 8.0L. Equipped with a robust Inconel turbine wheel and forged compressor internals, this Supercore balances thermal resilience and maximum flow under extreme load conditions.

Specifications

  • Compressor Inducer: 79 mm
  • Compressor Exducer: 98 mm
  • Compressor Wheel Material: Forged Fully Machined
  • Compressor A/R: 0.85
  • Turbine Inducer: 89 mm
  • Turbine Exducer: 82 mm
  • Turbine Trim: 84
  • Turbine Wheel Material: Inconel
  • Frame Size: 45
  • Rotation: Standard
  • Cooling: Oil & Water Cooled
  • Minimum Horsepower: 750 HP
  • Maximum Horsepower: 1610 HP
  • Minimum Engine Displacement: 2.0 L
  • Maximum Engine Displacement: 8.0 L
  • Maximum Allowable Turbocharger Speed: 125,000 RPM
