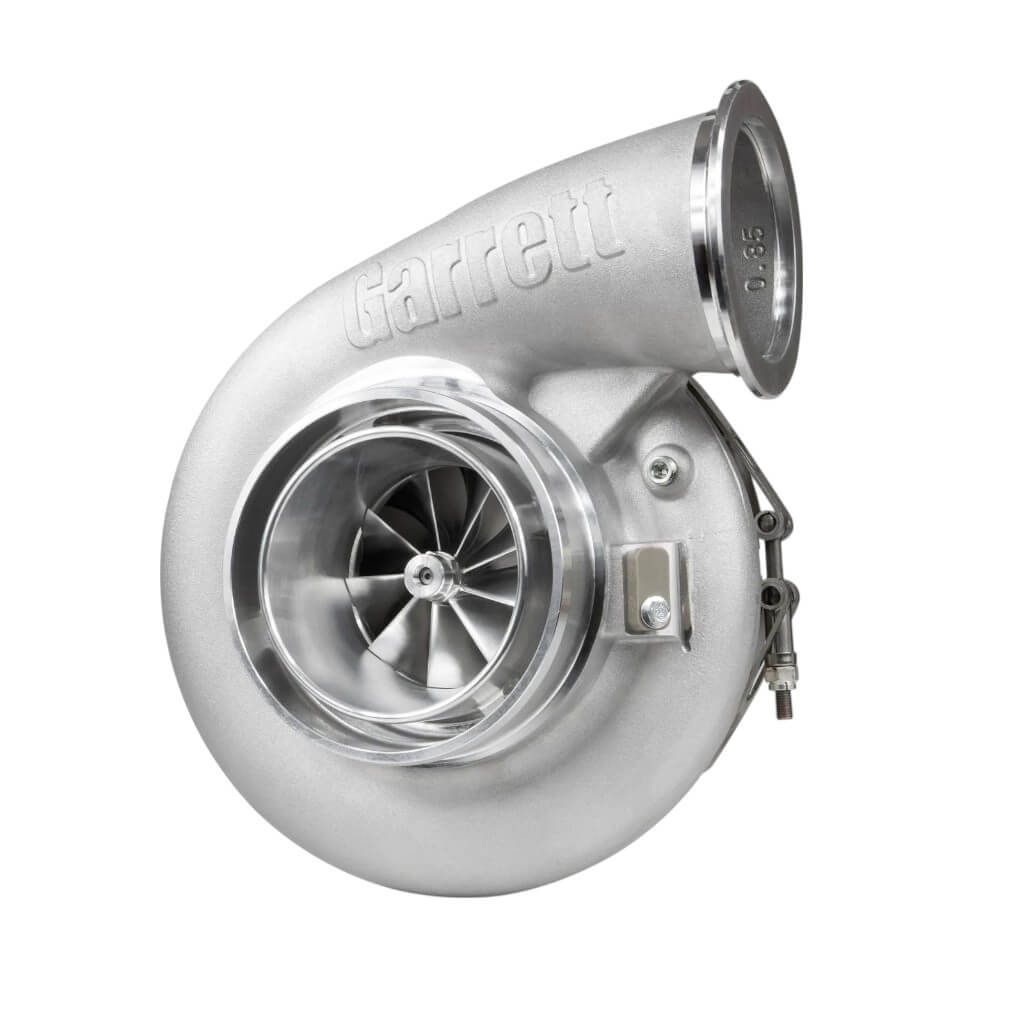

Description GARRETT 938339-5003S Supercore G-Series II G42-1585
The Garrett G-Series II G42-1585 Supercore turbocharger offers cutting-edge performance for motorsport professionals, tuners, and high-performance vehicle enthusiasts. Featuring the latest compressor aerodynamics, this unit delivers up to 10% higher compressor flow compared to G-Series Gen I models. Designed as a drop-in upgrade for existing G-Series I setups, the G42-1585 combines forged, fully machined compressor components with a high-temperature Inconel turbine for exceptional durability and efficiency under demanding conditions.
Specifications
- Compressor Inducer: 79 mm
- Compressor Exducer: 98 mm
- Compressor Wheel Material: Forged Fully Machined
- Compressor A/R: 0.85
- Turbine Inducer: 82 mm
- Turbine Exducer: 75 mm
- Turbine Trim: 84
- Turbine Wheel Material: Inconel
- Frame Size: 42
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Minimum Horsepower: 475 HP
- Maximum Horsepower: 1585 HP
- Minimum Engine Displacement: 2.0 L
- Maximum Engine Displacement: 7.0 L
- Maximum Allowable Turbocharger Speed: 125,000 RPM
