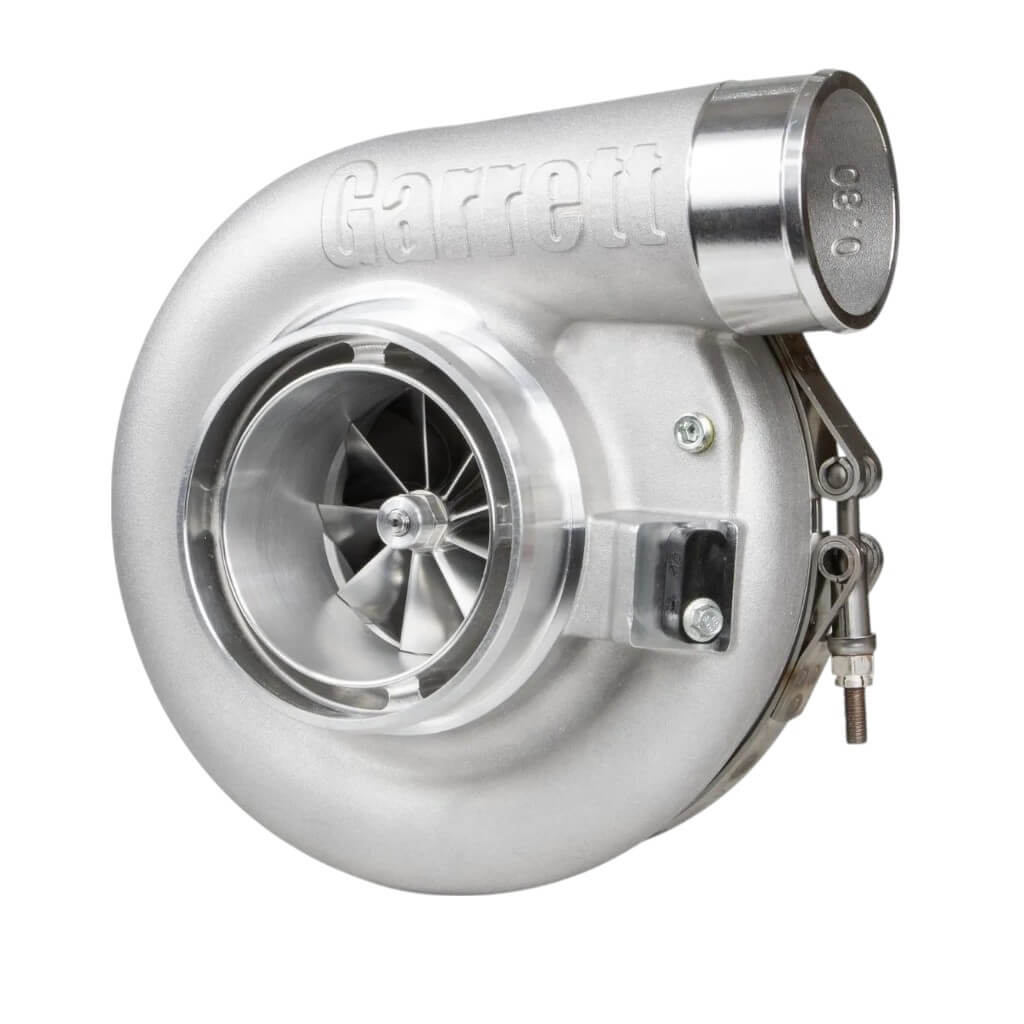

GARRETT 938272-5001S Supercore G-Series II G40-1000 Photo-0

GARRETT 938272-5001S Supercore G-Series II G40-1000

AED 10,210.87

Tax included. Shipping calculated at checkout

GARRETTP/N: 938272-5001S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 26.07.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 938272-5001S Supercore G-Series II G40-1000

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description GARRETT 938272-5001S Supercore G-Series II G40-1000

The Garrett G40-1000 Supercore from the G-Series II range delivers proven motorsport engineering in a compact, high-performance turbocharger core. Designed for engines producing between 500 and 1000 horsepower, this unit incorporates next-generation compressor aerodynamics for up to 10% more flow over its G-Series Gen I counterpart. With compatibility for existing Gen I turbine and compressor housings, the G40-1000 is an ideal upgrade for tuners seeking maximum performance gains with minimal installation complexity. Precision-balanced internals, including a forged compressor wheel and Inconel turbine, ensure durability and efficiency at high speeds and temperatures.

Specifications

  • Compressor Inducer: 62 mm
  • Compressor Exducer: 88 mm
  • Compressor Wheel Material: Forged Fully Machined
  • Compressor A/R: 0.80
  • Turbine Inducer: 77 mm
  • Turbine Exducer: 70 mm
  • Turbine Trim: 84
  • Turbine Wheel Material: Inconel
  • Frame Size: 40
  • Rotation: Standard
  • Cooling: Oil & Water Cooled
  • Bearing: Ceramic Dual Ball Bearing
  • Minimum Horsepower: 500 HP
  • Maximum Horsepower: 1000 HP
  • Minimum Engine Displacement: 2.0 L
  • Maximum Engine Displacement: 6.0 L
  • Maximum Allowable Turbocharger Speed: 125,000 RPM
