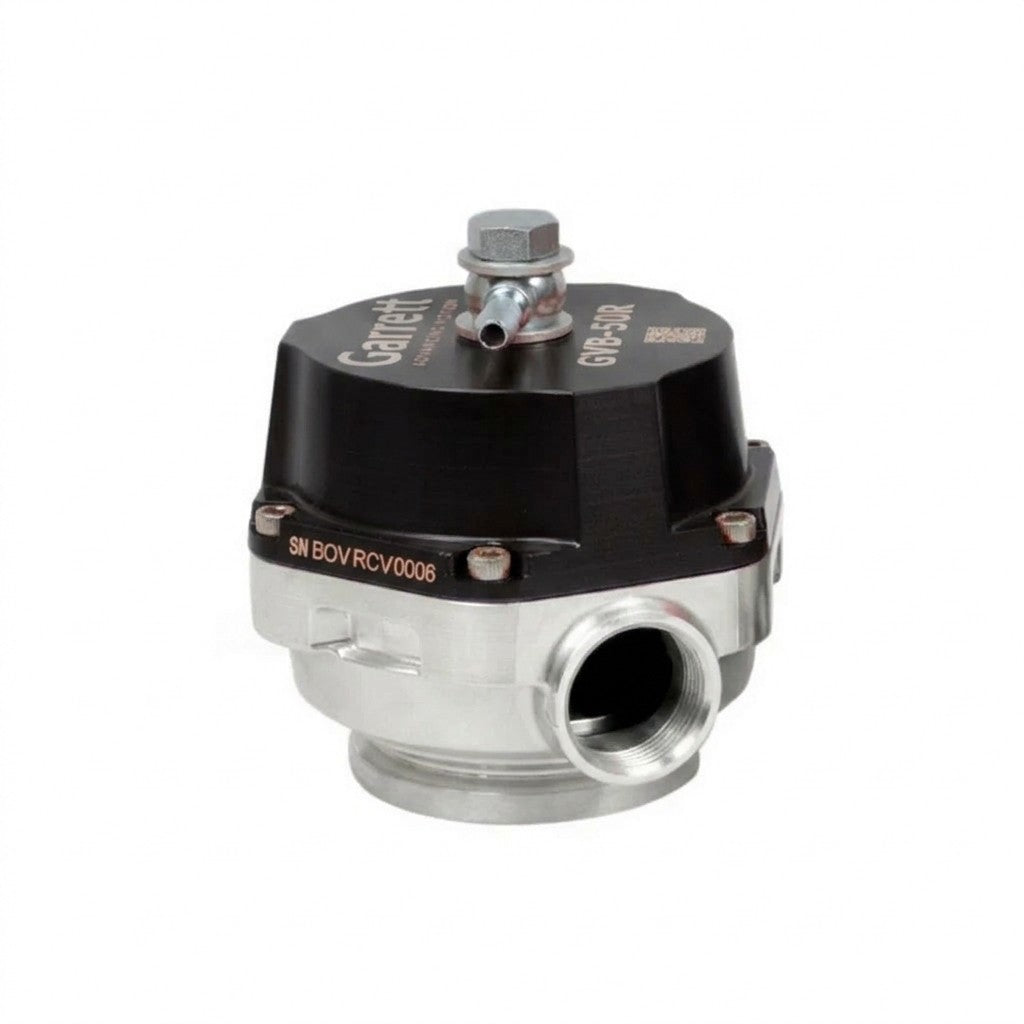

GARRETT 914959-0003 Blow-off valve RCV GVB-50R 50mm Black

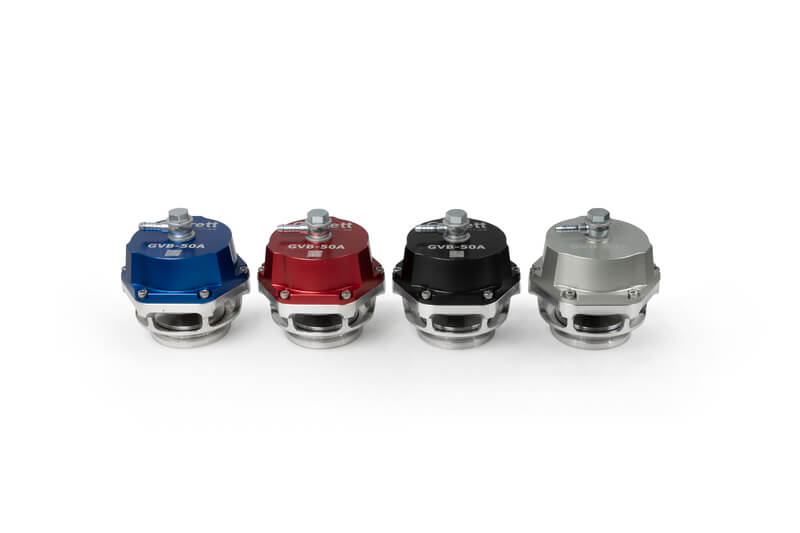

Garrett Vent / Blow-Off Valves are created by the engineers that designed G-Series turbochargers and GVW Wastegates. GVB-50 is a high-flowing BOV with a 50mm valve, available in four striking color combinations. Select between vent to atmosphere (VTA) and recirculating (RCV) housing options. Delivering a maximum flow up to 350 CFM / .21kg/s (RCV) as a result of advanced CFD design software used to simulate, visualize, and quantify airflow before manufacturing started (GVB-50R RCV). The proprietary designed, high-temperature Nomex reinforced elastomer diaphragm ensures unmatched durability and fatigue resistance. A plated stem and bushing lower friction and improve wear resistance.

GVB Blow-Off Valves are set to 10 PSI of base pressure and offer configurable rates from 0.2 Bar / 3 PSI - 0.9 Bar / 13 PSI. Unlike the other products on the market, Garrett includes five springs enabling fine tuning of the pressure setting to optimize
BOV performance, and therefore overall turbo system performance. The single vacuum port streamlines functionality.

Every kit contains- all fasteners, springs, fittings, V-bands, clamps, and flanges.

Features:

• CFD tested for maximum flow and thermal efficiency
• Replaceable components to increase service life
• Robust design for easy diaphragm replacement
• 6061 Anodized aluminum actuator cover and fully-machined billet housing
• Maximum flow 350 CFM / .21kg/s for GVB-50R
• Four outlet adapters for the recirculating valve. Adapters sold separately
• Base pressure 0.7 Bar / 10 PSI (blue and white spring installed)
• Configurable springs settings include: 3 / 4 / 6 / 7 / 9 / 10 / 12 / 13 PSI
• Wrought Aluminum Alloy Weld Flange
• 17/7 PH Stainless Steel Springs
• Plated stem and bushing for lowered friction and wear resistance
• High temp nomex reinforced diaphragm
• Stainless steel fittings and fasteners
