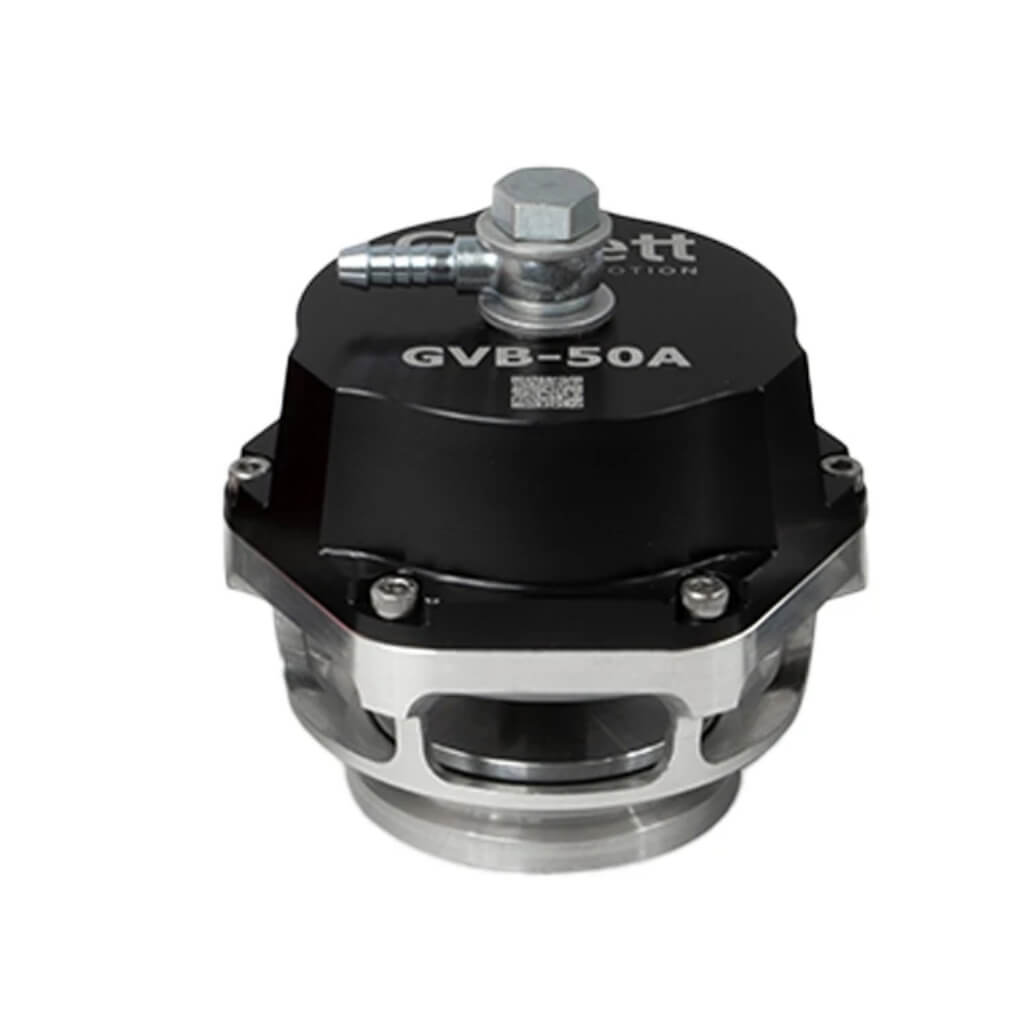

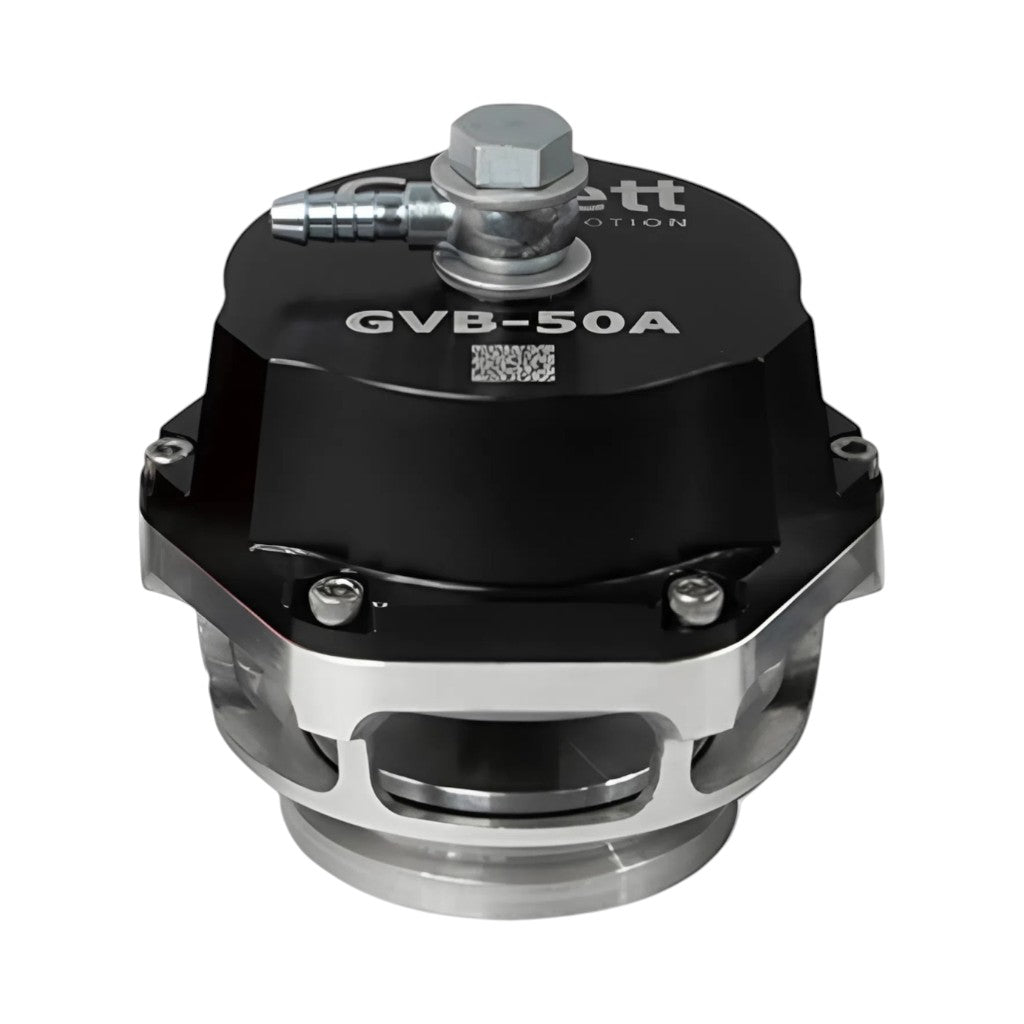

GARRETT 914956-0003 Blow-Off Valve VTA GVB-50A 50mm Black
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
GARRETT 914956-0003 Blow-Off Valve VTA GVB-50A 50mm Black
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Garrett Vent / Blow-Off Valves are created by the engineers that designed G-Series turbochargers and GVW Wastegates. GVB-50 is a high-flowing BOV with a 50mm valve, available in four striking color combinations. Select between vent to atmosphere (VTA) and recirculating (RCV) housing options.
Every kit contains- all fasteners, springs, fittings, V-bands, clamps, and flanges.
Features
- CFD tested for maximum flow and thermal efficiency
- Replaceable components to increase service life
- Robust design for easy diaphragm replacement
- 6061 Anodized aluminum actuator cover and fully-machined billet housing
- Maximum flow 350 CFM / .21kg/s for GVB-50R
- Four outlet adapters for the recirculating valve. Adapters sold separately
- Base pressure 0.7 Bar / 10 PSI (blue and white spring installed)
- Configurable springs settings include: 3 / 4 / 6 / 7 / 9 / 10 / 12 / 13 PSI
- Wrought Aluminum Alloy Weld Flange
- 17/7 PH Stainless Steel Springs
- Plated stem and bushing for lowered friction and wear resistance
- High temp nomex reinforced diaphragm
- Stainless steel fittings and fasteners
