GARRETT 913840-5001S Super core GBC35-700
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

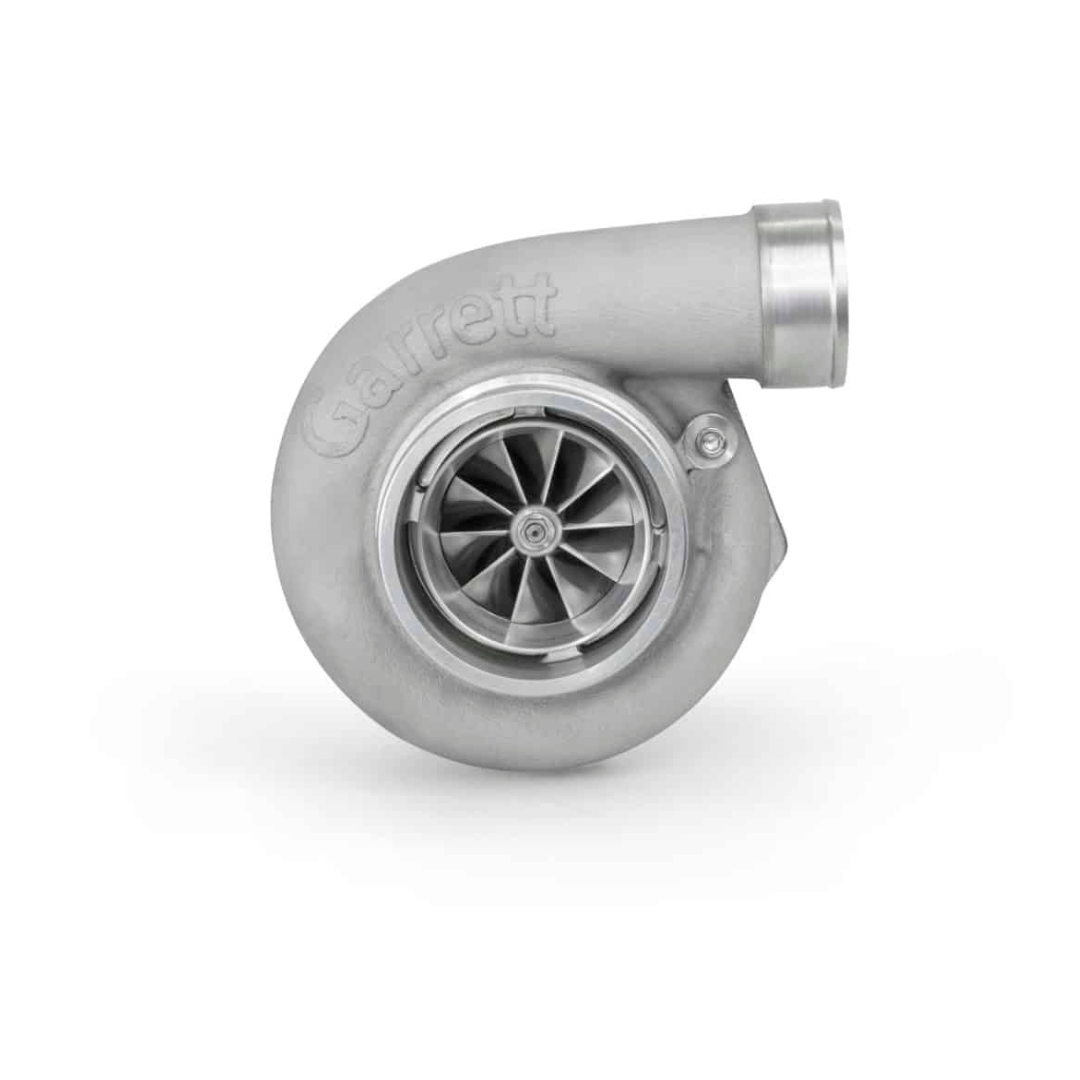

GARRETT 913840-5001S Super core GBC35-700
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Garrett Boost | Club Line turbochargers are high performance journal bearing products in a cost effective price range. GBC combines modern, high flowing aerodynamics with a robust journal bearing rotating group to make a powerful and affordable turbocharger.
- 58mm compressor inducer | 76mm compressor exducer
- Outline interchangeable with GBC37-900
- 400 –700 horsepower capability
- Billet compressor wheel with extended tip design for higher pressure ratios
- Journal bearing rotating group with 360-degree thrust bearing
- Machined boost signal port with installed plug
- Modern turbine wheel aerodynamics
- Oil-cooled center housing
Forged, fully-machined compressor wheels with advanced aero is offered in 58mm inducer size and 76mm exducer. GBC35-700 can support from 400-700 horsepower. The compressor wheel is a 58 trim and the Compressor housing A/R is 0.72 A/R. This turbocharger can support up to 68 lbs/min of airflow and up to 4.1 pressure ratio.
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.
GBC35-700 characteristics:
HP: 400 -700
Disp: 2.0L-5.0L
Compressor:
Inducer: 58mm
Exducer: 76mm
Trim: 58
A/R: 0.72
Turbine:
Inducer: 68mm
Exducer: 62mm
Trim: 84
