GARRETT 908830-0002 Wastegate kit GVW-60 1 Bar / 14.5 PSI 60mm Blue
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 908830-0002 Wastegate kit GVW-60 1 Bar / 14.5 PSI 60mm Blue
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

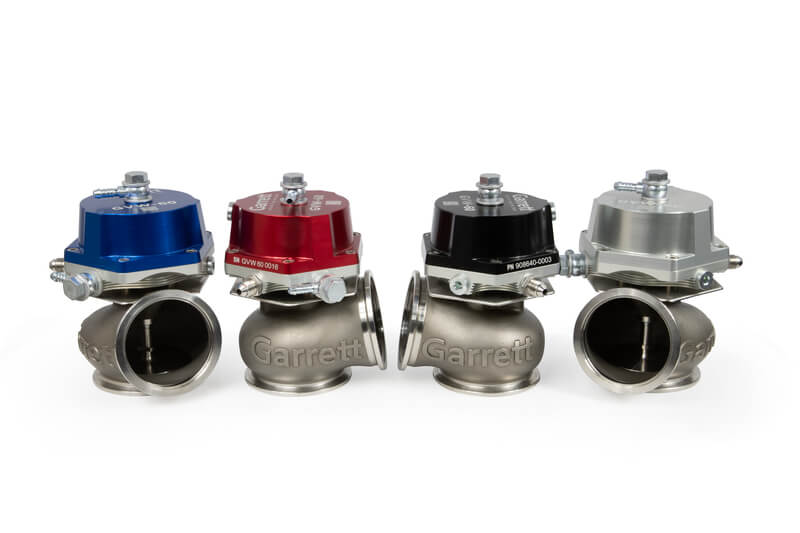

Garrett Vent / External wastegates are created by the engineers that designed G-Series and GTX Gen II turbochargers. Available in four sizes: 40mm / 45mm / 50mm / 60mm and four color combinations: Red / Blue / Black / Silver.
The valve housing is cast from high temp stainless steel and rated for exhaust temperatures up to 1050 degrees; C. CFD optimized for maximum flow and thermal efficiency. Nomex reinforced elastomer diaphragm provides exceptional durability and fatigue resistance.
GVW wastegates are set to 1 Bar / 14.5 PSI of base pressure and can be configured from 0.2 Bar / 2.9 PSI - 1.7 Bar / 24.7 PSI (considering 1:1 backpressure). The actuator design allows for multiple air/liquid fitting orientations. All fasteners, springs, fittings, V-bands, clamps, and flanges included.
Features:
- CFD tested for maximum flow and thermal efficiency
- Optimized actuation stability and temperature resistance for
superior durability - Replaceable valve and bushing components to increase service life
- Robust design for easy diaphragm replacement
- Liquid-cooled actuator ports for use on severe applications (up to
52% reduction in body temp) - Anodized aluminum actuator cover
