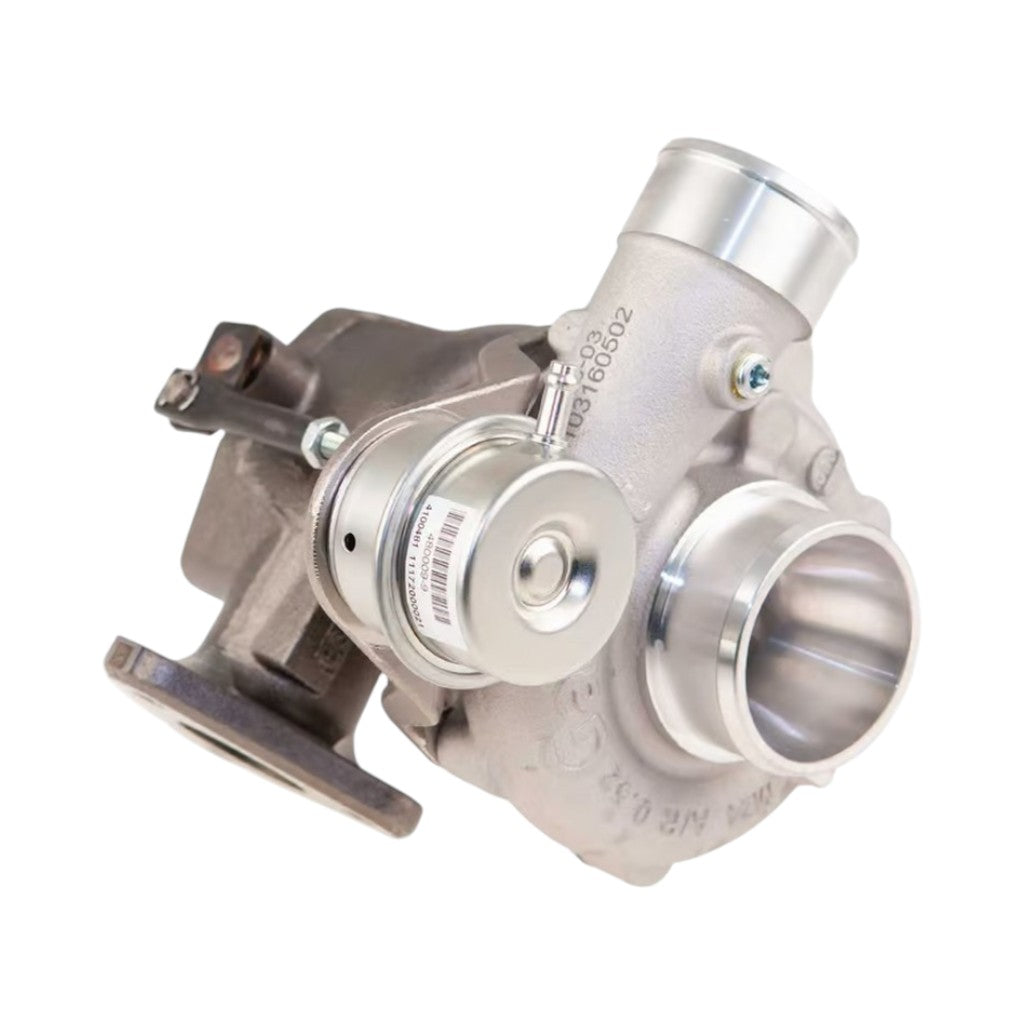

GARRETT 896052-5003S Turbocharger GBC17-250 0.50 A/R, T25 / 5-bolt, Internal Wastegate Photo-0

GARRETT 896052-5003S Turbocharger GBC17-250 0.50 A/R, T25 / 5-bolt, Internal Wastegate

AED 3,812.17

Tax included. Shipping calculated at checkout

GARRETTP/N: 896052-5003S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 18.06.2026
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 896052-5003S Turbocharger GBC17-250 0.50 A/R, T25 / 5-bolt, Internal Wastegate

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description GARRETT 896052-5003S Turbocharger GBC17-250 0.50 A/R, T25 / 5-bolt, Internal Wastegate

The Garrett GBC-Series turbocharger range is developed for small to medium displacement engines, delivering efficient performance in compact configurations.

Specifications

  • Turbo Series: GBC-Series
  • Compressor Inducer: 36 mm
  • Compressor Exducer: 49 mm
  • Turbine Inducer: 44 mm
  • Turbine Exducer: 40 mm
  • A/R 0.50
  • Supports 150 - 250 HP applications
  • CFD-optimized forged and machined compressor wheel
  • Journal bearing system with 360 degree thrust bearing
  • Ductile iron (SiMo+) turbine housing for durability
  • Inconel turbine wheel for high-temperature resistance
  • Integrated internal wastegate with 0.5 bar actuator
  • Oil-cooled center housing (CHRA)
  • T25 turbine inlet and 5-bolt outlet configuration
  • V-band mounting interface for CHRA
