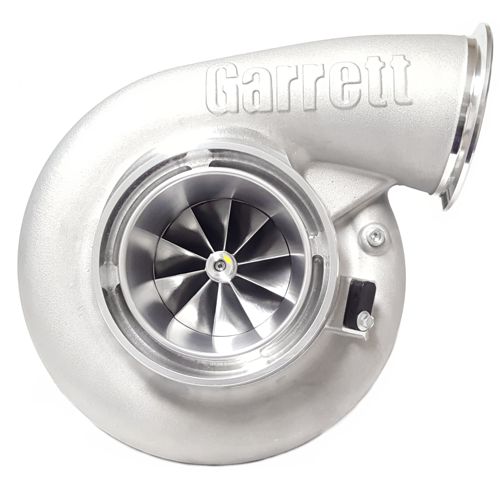

GARRETT 888169-5006S Super core - G45-1600
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 888169-5006S Super core - G45-1600
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Garrett G-Series G45-1600 (80MM compressor inducer diameter) Supercore only (Turbo W/O turbine housing)capable of 1600HP!
Product Features:
- Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
- G Series compressor aero increases flow up to 16% (compared to GTX4508R)
- 80mm compressor inducer sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter (please check relevant rulebook)
- Dual ceramic ball bearing with steel cages
- G Series turbine aero increases flow 14% (compared to GTX4508R)
- Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
- Lightweight aluminum backplate
- Fully machined speed sensor and pressure ports
- Water fittings included with super core
- Fully machined speed sensor and pressure ports
- Water fittings included with super core
Product Specifications:
- Compressor Wheel Inducer: 80mm
- Compressor Wheel Exducer: 109mm
- Compressor Wheel Trim: 54
- Compressor Housing A/R: 0.85
- Turbine Wheel Inducer: 89mm
- Turbine Wheel Exducer: 82mm
- Turbine Wheel Trim: 84
WARNING: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits. Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) . The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers 781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART MODULE ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void warranty on product.
