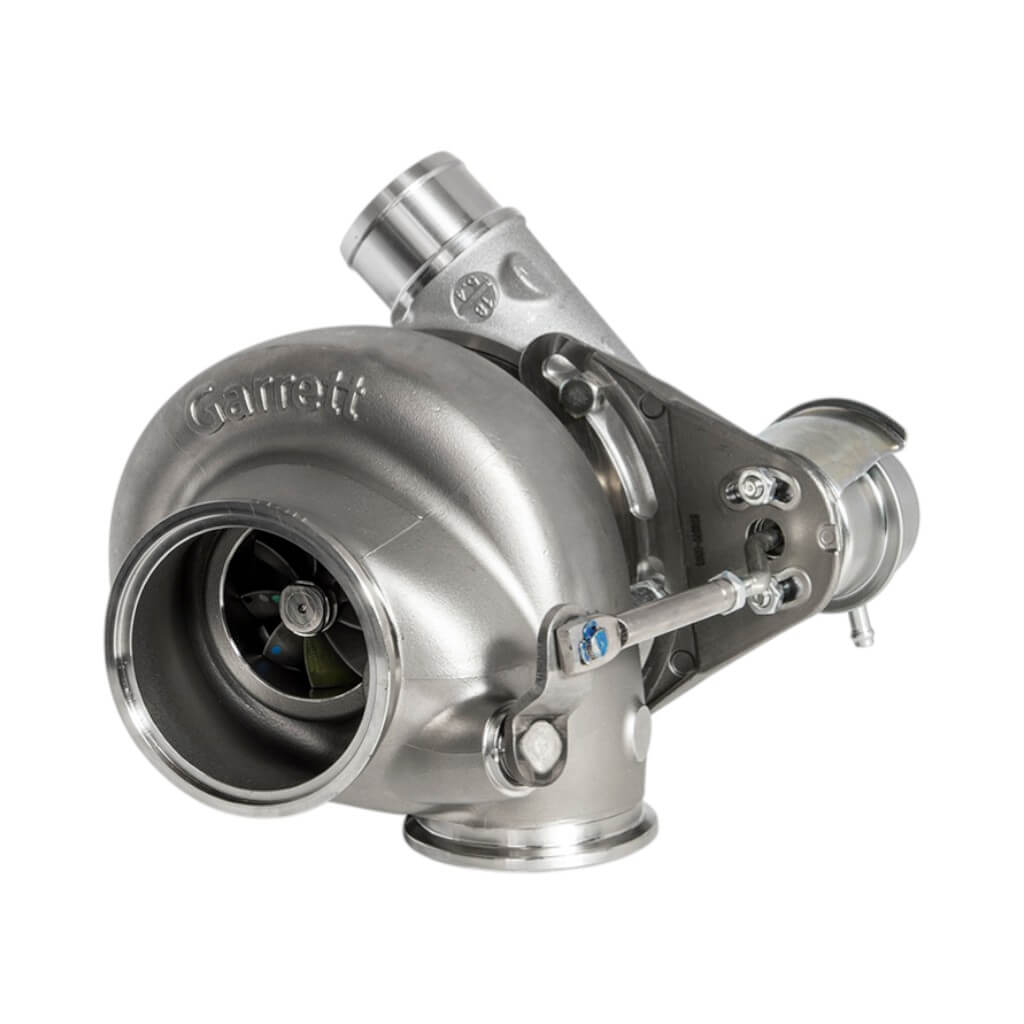

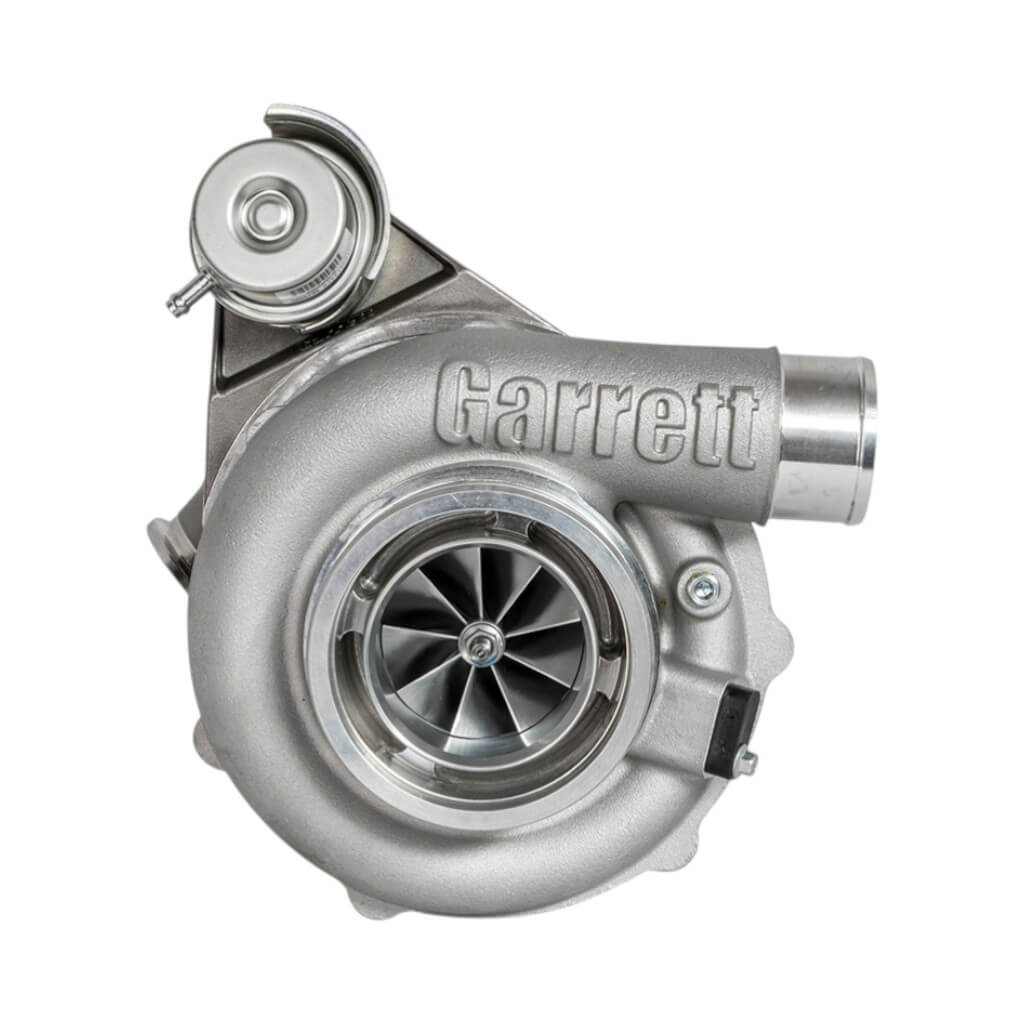

GARRETT 880704-5003S Turbocharger G30-660 1.01 A/R, V-Band / V-Band, Internal Wastegate

Description GARRETT 880704-5003S Turbocharger G30-660 1.01 A/R, V-Band / V-Band, Internal Wastegate

The Garrett G30-660 turbocharger is part of the G Series and is designed for high-performance configurations requiring high airflow and power output. It is suitable for engines ranging from 2.0 to 3.5 liters and supports power outputs of 350–660 hp. The advanced aerodynamics of the compressor and turbine ensure increased efficiency and airflow capacity.

Technical Specifications

• Turbine model: G30-660
• Power: 350–660 hp
• Engine displacement: 2.0–3.5 L
• Compressor wheel: 54 mm
• Efficiency: up to 79%
• Turbine A/R ratio: 1.01
• Connection type: V-band / V-band
• Westgate: Indoor
• Actuator pressure: 0.5 bar
• Maximum speed: 165,000 rpm
• The aerodynamics of the G Series compressor for increased power
• MAR-M alloy turbine wheel (up to 1050C)
• Stainless steel turbine housing (up to 1050C)
• Includes an oil restrictor and cooling fittings
• Ports for speed and pressure sensors

Warning: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits.  Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) . The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers  781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART Module ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.
