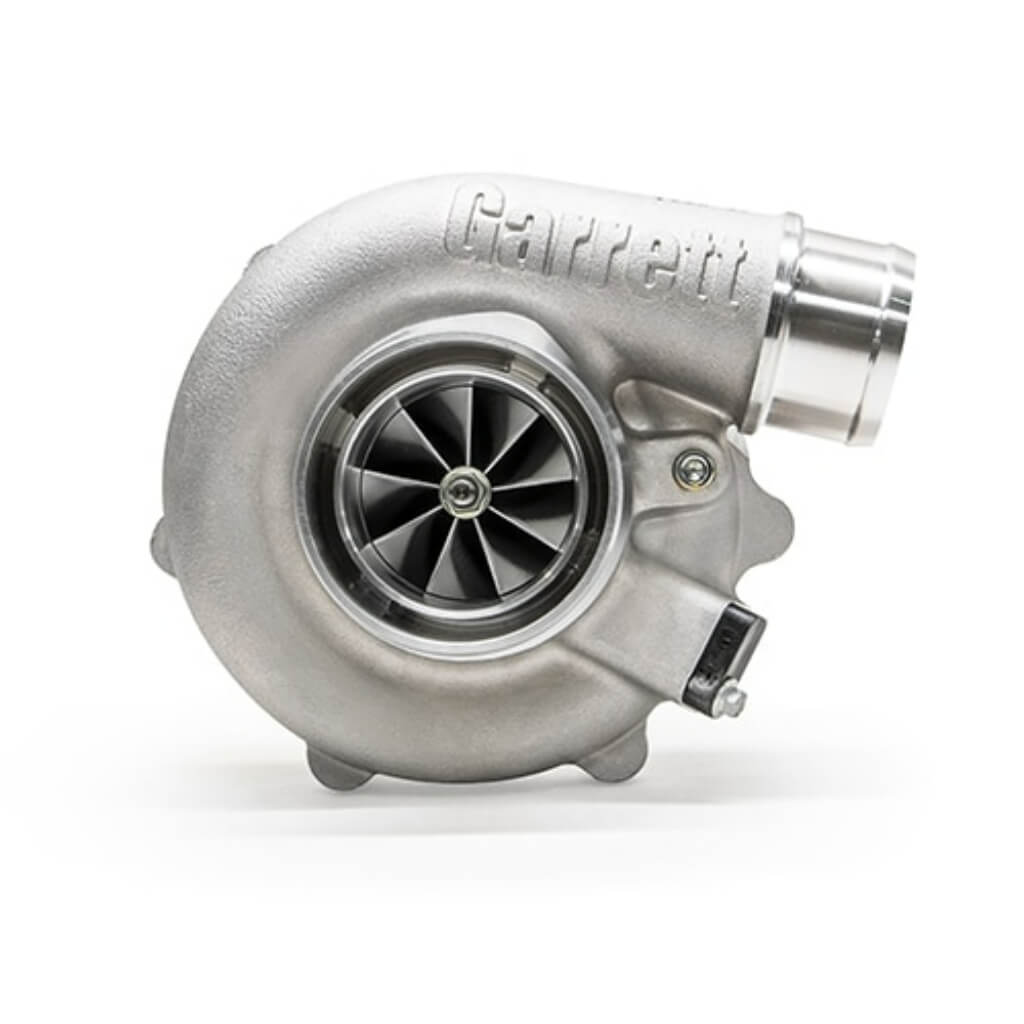

GARRETT 880695-5001S Super Core Turbocharger without Turbine Housing for GARRETT G35-900

Description GARRETT 880695-5001S Super Core Turbocharger without Turbine Housing for GARRETT G35-900

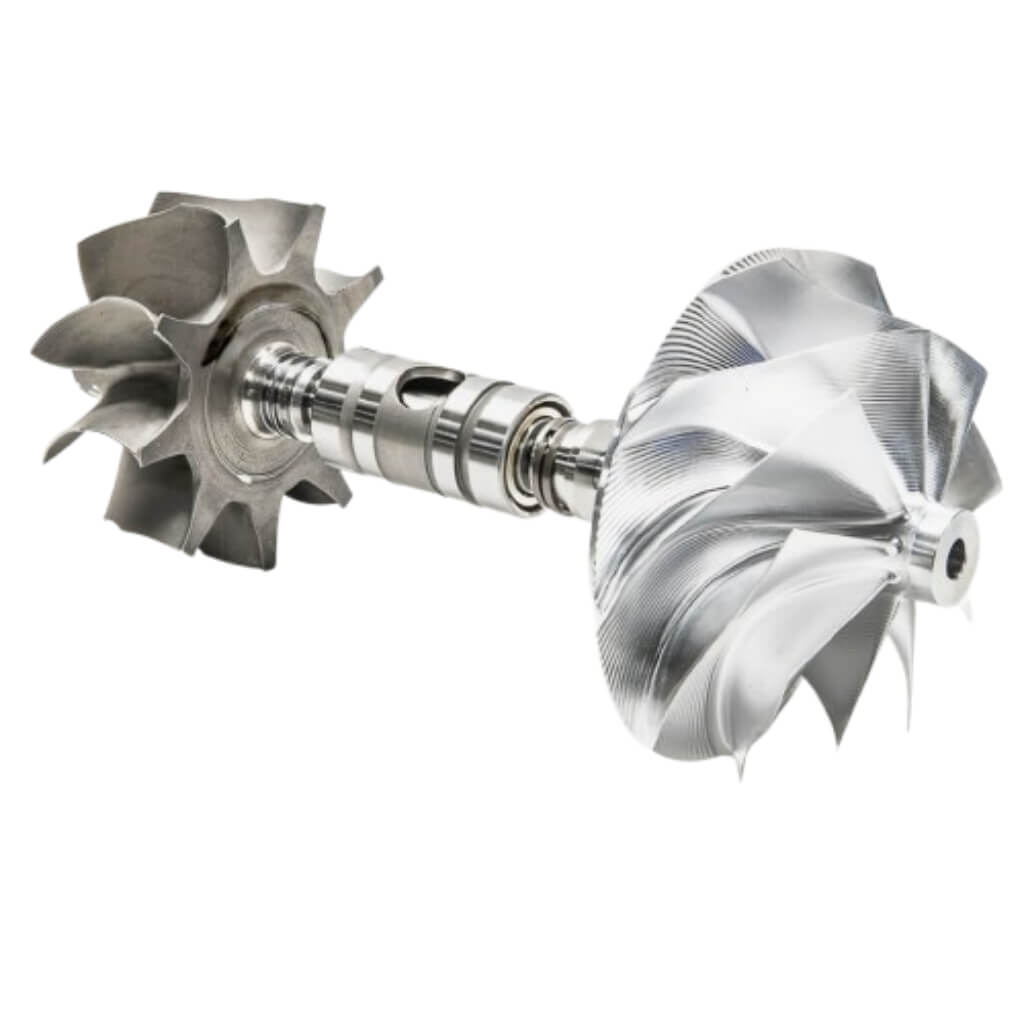

The GARRETT 880695-5001S Super Core is a G35-900 turbocharger assembly supplied without a turbine housing. Designed with the latest Garrett G-Series technology, it delivers exceptional aerodynamic efficiency and durability in a compact package. The forged milled compressor wheel, optimized using CFD analysis, ensures maximum airflow and performance, while the high-flow compressor housing integrates a plug-and-play speed sensor port for precise monitoring. Dual ceramic ball bearings provide superior spool response and reliability, supported by water and oil cooling for thermal stability. With a MAR-M 1050 C turbine wheel capable of withstanding extreme exhaust gas temperatures, this Super Core is engineered for motorsport and high-performance applications.

• CFD-optimized, forged milled compressor wheel
• High-flow compressor housing with integrated speed sensor port
• Standard rotation configuration
• Dual ceramic ball bearing cartridges for durability
• Includes -4AN oil restrictor fitting with 1 mm orifice
• Four large water jacket ports for increased cooling
• Twin piston rings on compressor and turbine sides
• MAR-M 1050 C turbine wheel for extreme temperature resistance
• Water- and oil-cooled bearing system

Specifications:

• Compressor Inducer: 62 mm
• Compressor Exducer: 76 mm
• Turbine Inducer: 68 mm
• Turbine Exducer: 62 mm
