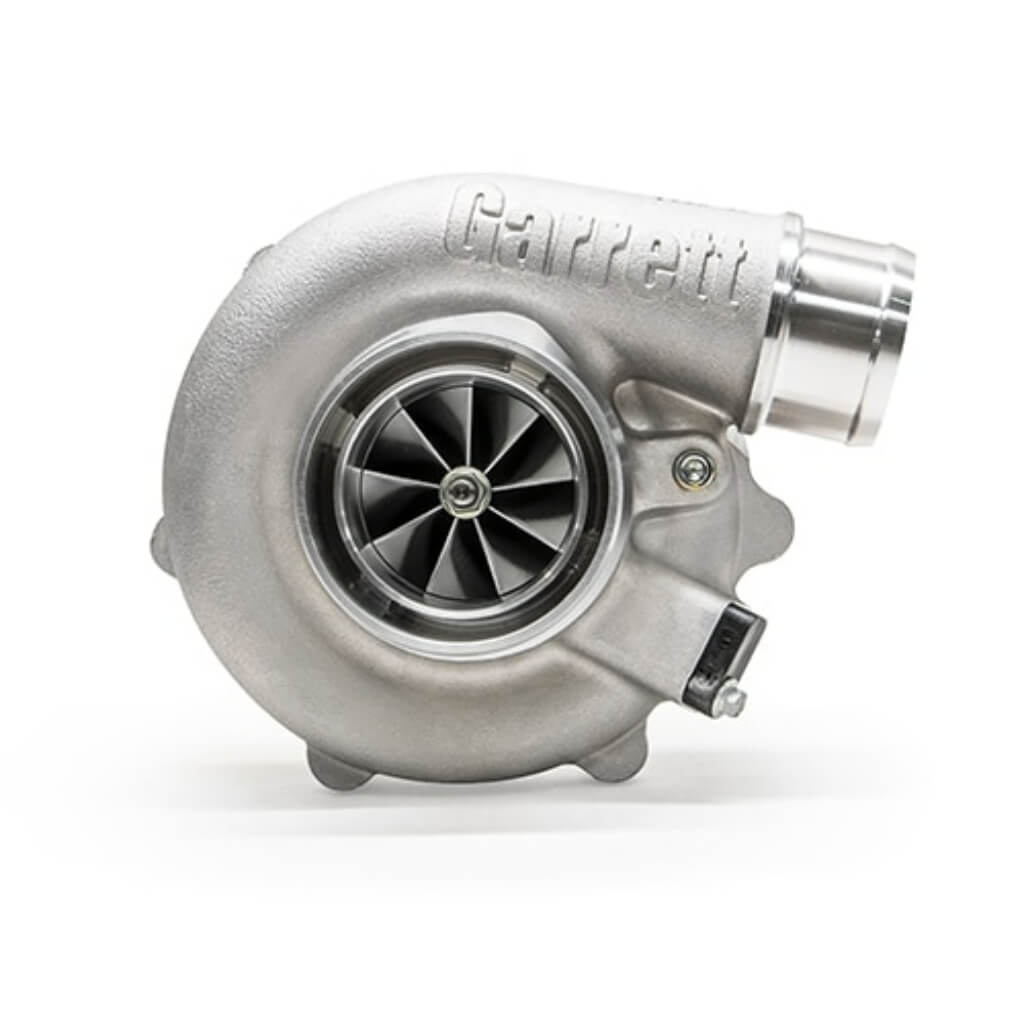

GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660 Photo-0
GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660 Photo-1

GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660

AED 6,458.35

Tax included. Shipping calculated at checkout

GARRETTP/N: 880693-5001S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 27.10.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660

The GARRETT 880693-5001S Super Core is a G30-660 turbocharger core unit supplied without a turbine housing. Built with the latest Garrett G-Series innovations, it combines cutting-edge aerodynamics and high-performance materials in a compact design. The forged milled compressor wheel is CFD-optimized for maximum efficiency, while the high-flow compressor housing integrates a speed sensor port for precise monitoring. Dual ceramic ball bearings ensure rapid spool and durability, with additional support from water and oil cooling. The MAR-M 1050 C turbine wheel offers exceptional thermal resistance, making this turbo ideal for motorsport and high-performance applications.

  • CFD-optimized, forged milled compressor wheel
  • High-flow compressor housing with integrated speed sensor port
  • Standard (clockwise) rotation
  • Dual ceramic ball bearing cartridges
  • Includes -4AN oil restrictor fitting with 1 mm orifice
  • Four large water jacket ports for enhanced cooling
  • Twin piston rings on compressor and turbine sides
  • MAR-M 1050 C turbine wheel for high-temperature durability
  • Water- and oil-cooled bearing housing

Specifications:

  • Compressor Inducer: 54 mm
  • Compressor Exducer: 67 mm
  • Turbine Inducer: 60 mm
  • Turbine Exducer: 55 mm
