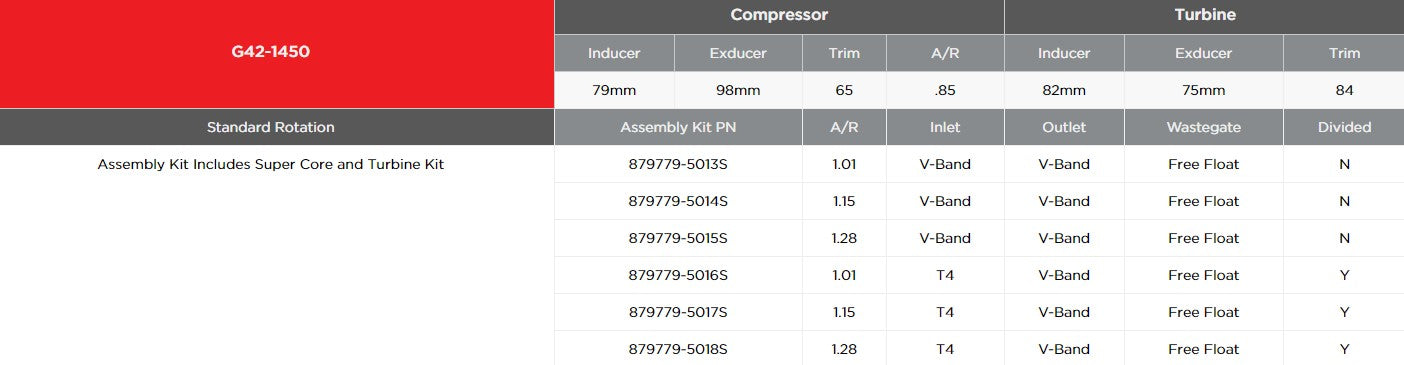

Garrett® G42-1450
Horsepower: 525-1450
Displacement: 2.0L-8.0L
- G Series compressor aero (10 blade)
- 131 Lbs/Min compressor flow
- 0.85 A/R comp housing
- V-band comp outlet 4.2 inch / 107mm (Same as GTX42)
- 5 inch / 127mm compressor inlet (Same as GTX42)
- Water fittings included (-6an fittings *same as G25)
- Stainless steel turbine housings rated up to 950 deg C
Technology and Features

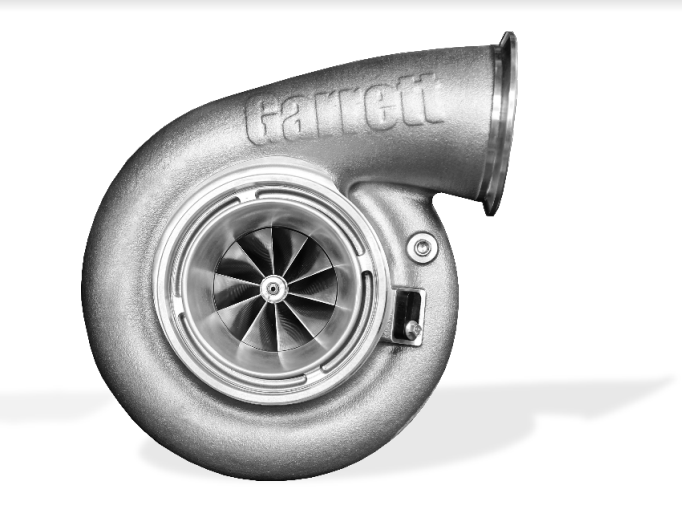

Compressor Housing
Garrett® G42-1450 available only with standard housing
- (A) Fully machined ported shroud to help reduce compressor surge.
- (B) A fully machined speed sensor port provides racers the option to add a speed sensor. Comparing shaft speed and boost levels on a compressor map will help determine ideal operating conditions to ensure peak power over a wider operating range.
- (C ) The fully machined pressure port.
* Sold separately, the Garrett ® G Series speed sensor kits have new part
numbers and are not compatible with GT/GTX kits. Easier to install and will
not need to be adjusted for length like previous sensors. Simply remove bolt
that secures the plug, insert the speed sensor and re-tighten the bolt.
Speed Sensor Kits G Series Street Kit: 781328-0003 (includes speed sensor, wire harness, gauge) G Series Pro Kit: 781328-0004 (includes speed sensor, wire harness)
WARNING: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits. Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) . The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers 781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART MODULE ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void warranty on product.
