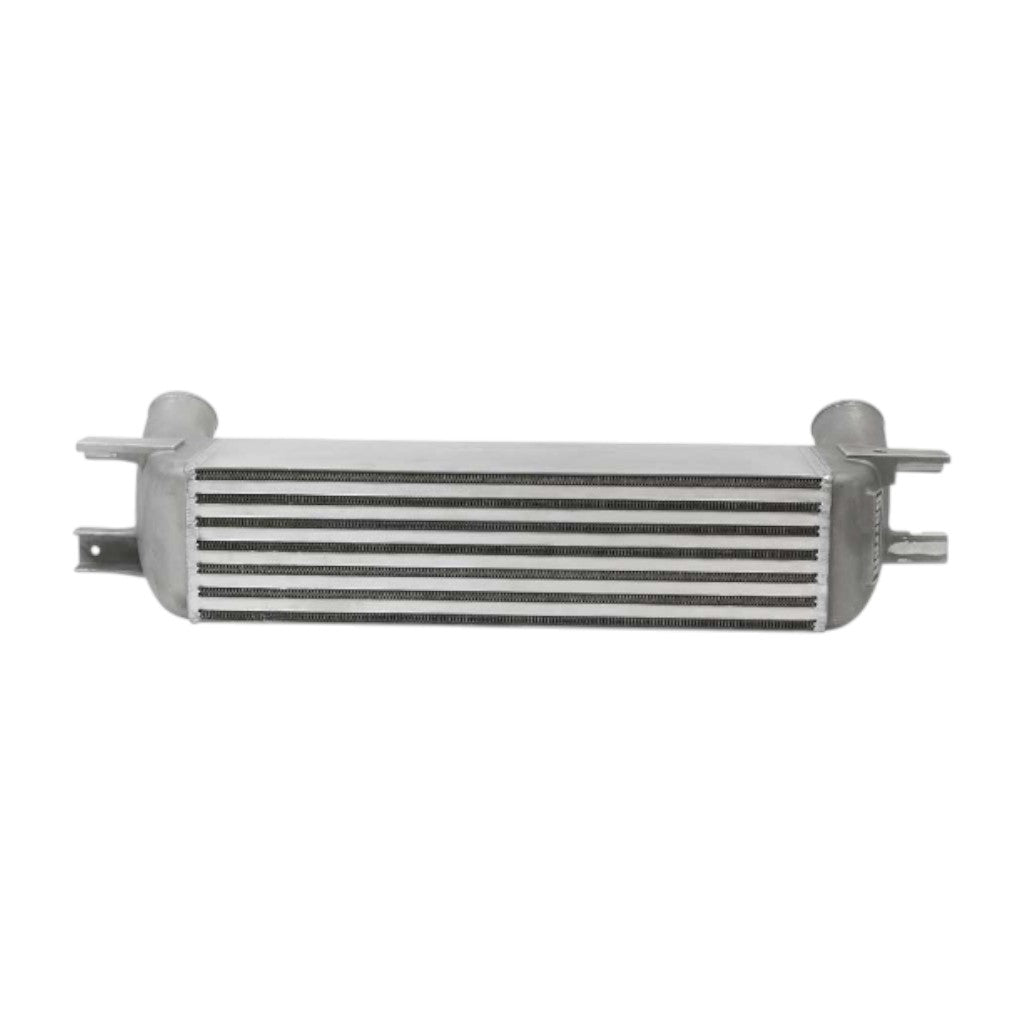

GARRETT 857564-6001 Intercooler Upgrade for FORD Mustang EcoBoost 2.3 L

Description GARRETT 857564-6001 Intercooler Upgrade for FORD Mustang EcoBoost 2.3 L

The GARRETT 857564-6001 intercooler upgrade is engineered as a direct-fit solution for the 2015+ Ford Mustang EcoBoost 2.3L, designed to support up to 600 horsepower. Manufactured with advanced aluminum bar-and-plate construction and an offset fin core, it delivers superior heat dissipation and durability. CFD-optimized cast aluminum end tanks minimize recirculation while maximizing airflow, resulting in up to 30% lower pressure drop and up to 40°C reduction in charge air temperatures compared to stock. With a 60% larger core, the intercooler ensures reliable performance in high-power applications. Installation takes approximately 2.5 hours using basic hand tools and retains compatibility with factory hoses, clamps, and bolts.

• Direct-fit upgrade for 2015+ Mustang EcoBoost 2.3L
• Rated up to 600 horsepower
• Aluminum offset fin bar-and-plate core with TIG-welded end tanks
• 60% larger core volume compared to OEM
• Reduces charge air temperatures by up to 40°C
• Decreases pressure drop by up to 30%
• Extended inlet/outlet ports for secure hose connection
• Installs in ~2.5 hours with basic tools

Specifications:

• Core Length: 21 in
• Core Height: 5.4 in
• Core Width: 5.32 in
• Inlet Diameter: 2.75 in
• Weight: 16.5 lbs
