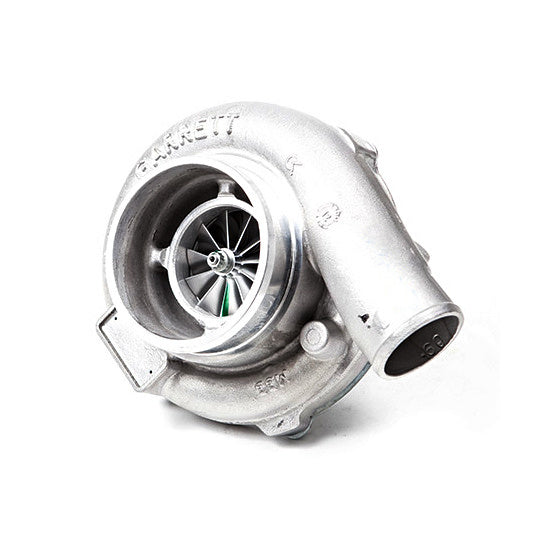

GARRETT 836028-5003S Turbocharger GT3076R w/o Housing Kit Photo-0
GARRETT 836028-5003S Turbocharger GT3076R w/o Housing Kit Photo-1

GARRETT 836028-5003S Turbocharger GT3076R w/o Housing Kit

AED 4,977.03

Tax included. Shipping calculated at checkout

GARRETTP/N: 836028-5003S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 27.09.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 836028-5003S Turbocharger GT3076R w/o Housing Kit

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Ball bearing.
Oil & Water cooled bearign system.
Upgrade turbocharger for GT3071R non-wastegated ball-bearing turbocharger; turbine housing flanges are outline interchangeable
Ideal for medium displacement engines making up to 525 hp
Turbine housing option available.

Note: The 700382-0012 GT3076R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing. (It includes a CHRA and compressor housing.)


Turbo Part Number Model Turbine side Compressor side
New Part Old Part O.D.mm I.D.mm TRIM A/R O.D.mm I.D.mm TRIM A/R
836028-5003S 700382-5012S GT3076R 60.0 55.0 84 w/t 76.2 57.0 56 .60



HORSEPOWER 310HP - 525HP
DISPLACEMENT 2.0L - 3.0L

C.H.R.A. Part Number
New Part CHRA Old Part CHRA
836000-5003S 700177-5007S


Applicable Garrett P/N's:
Applicable Garrett alternative numbers
TBO -  700382-0012
CHRA - 700177-0007

TURBINE HOUSING OPTIONS (O/V T3 / 4-Bolted )
PART NUMBER A/R TYPE
740902-0003 0.63 Free Float
740902-0002 0.82 Free Float
740902-0001 1.06 Free Float
TURBINE HOUSING OPTIONS (O/V T3 / V-Band)
PART NUMBER A/R TYPE
740902-0009 0.63 Free Float
740902-0008 0.82 Free Float
740902-0007 1.06 Free Float
TURBINE HOUSING OPTIONS Hi Sil  (O/V T4 / V-Band )
PART NUMBER A/R TYPE
740902-0015 0.63 Free Float
740902-0014 0.82 Free Float
740902-0013 1.06 Free Float
TURBINE HOUSING OPTIONS Ni-Resist ( Div V-Band / V-Band)
PART NUMBER A/R TYPE
740902-0024 0.61 Free Float
740902-0023 0.83 Free Float
740902-0022 1.01 Free Float
TURBINE HOUSING OPTIONS Ni-Resist (  Div T3 / V-Band )
PART NUMBER A/R TYPE
740902-0030 0.61 Free Float
740902-0029 0.83 Free Float
740902-0028 1.01 Free Float
TURBINE HOUSING OPTIONS Ni-Resist ( V-Band / V-Band)
PART NUMBER A/R TYPE
740902-0036 0.61 Free Float
740902-0035 0.83 Free Float
740902-0034 1.01 Free Float
