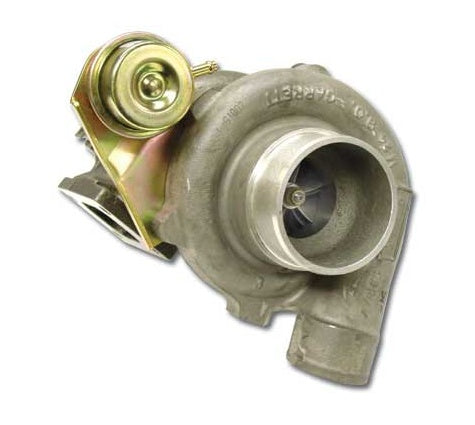

GARRETT 836026-5020S Turbocharger GT2871R 8mm BB Upgrade 0.86 A/R
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Ball bearing.
Oil & Water cooled bearign system.
Direct replacement upgrade turbocharger for GT2860RS (739548-0001)
Comes as a kit; end housings are not assembled onto CHRA.
T25 turbine inlet flange.
Great size for applications w/packing constrains.
Ideal for smaller displacement engines making up to 400 Hp.
Turbine housing option available.
HORSEPOWER 280HP - 475HP
DISPLACEMENT 1.8L - 3.0L
| Turbo Part Number | Model | Turbine side | Compressor side | |||||||
| New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R | |
| 836026-5020S | 743347-5002S | GT2871R | 53.8 | 47.0 | 76 | .86 | 71.0 | 53.1 | 56 | .60 |
| C.H.R.A. Part Number | |
| New Part CHRA | Old Part CHRA |
| 835998-5010S | 446179-5032S |
Applicable Garrett P/N's:
TBO - 743347-0002
CHRA - 446179-0032
743347-5001S
743347-5002S
743347-5003S
743347-5004S
743347-5001
743347-5002
743347-5003
743347-5004
743347-1
743347-2
743347-3
743347-4
