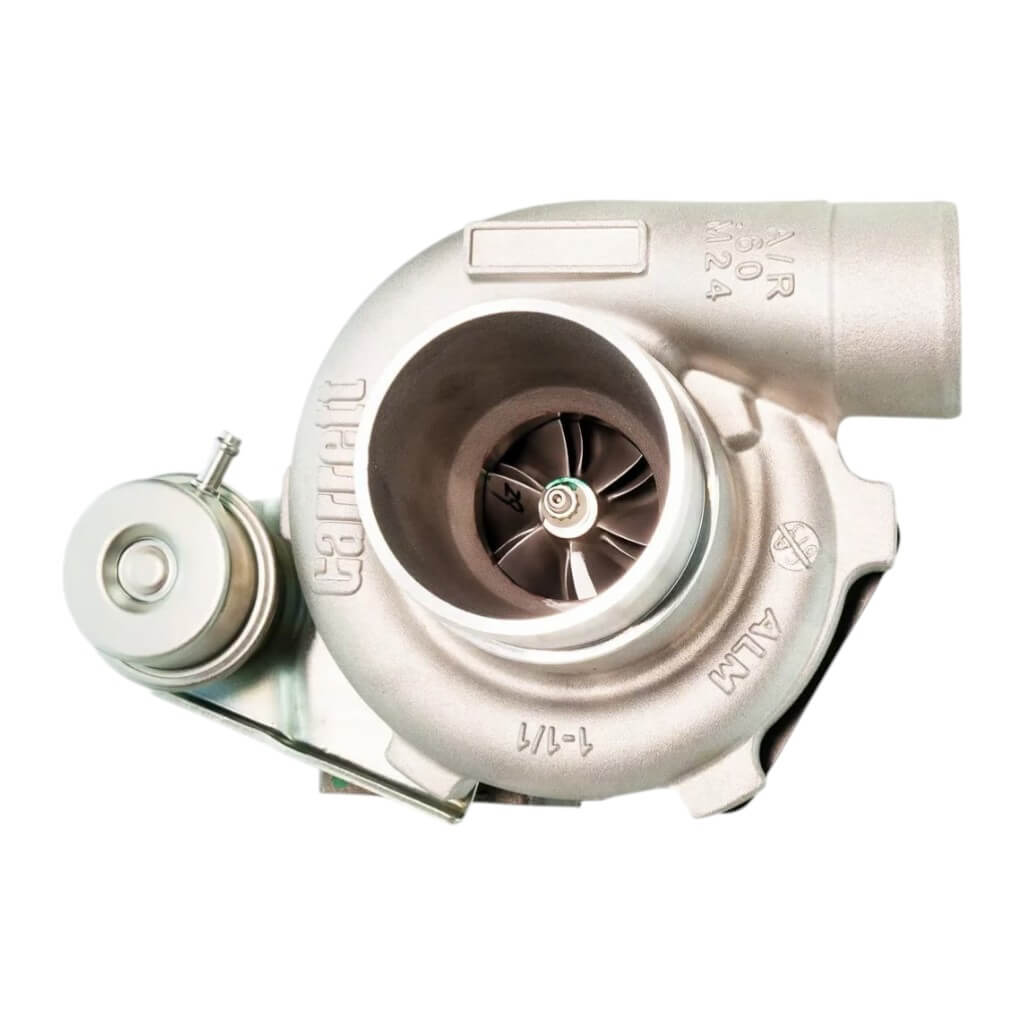

GARRETT 836026-5014S Turbocharger GT2860RS 0.64 A/R, T25 / 5-bolt, Internal Wastegate Photo-0

GARRETT 836026-5014S Turbocharger GT2860RS 0.64 A/R, T25 / 5-bolt, Internal Wastegate

AED 5,359.91

Tax included. Shipping calculated at checkout

GARRETTP/N: 836026-5014S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 18.06.2026
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 836026-5014S Turbocharger GT2860RS 0.64 A/R, T25 / 5-bolt, Internal Wastegate

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description GARRETT 836026-5014S Turbocharger GT2860RS 0.64 A/R, T25 / 5-bolt, Internal Wastegate

The Garrett GT2860RS turbocharger is designed for performance street and motorsport applications that need responsive boost delivery and proven GT-Series hardware.

The smaller turbine housing improves response and makes it attractive for compact street and drift applications. This version uses a 0.64 A/R turbine housing with an internal wastegate, and it combines ball bearing support with a water-cooled chra for dependable operation.

  • Model: GT2860RS
  • Part Number: 836026-5014S
  • Turbo Type: Turbocharger
  • Bearing Type: Ball Bearing
  • Horsepower Rating: 250-360 HP
  • Displacement Range: 1.8L-3.0L
  • Turbine Housing: 0.64 A/R
  • Turbine Inlet: T25
  • Outlet Flange: 5-Bolt
  • Wastegate: Internal
  • Compressor Wheel: 47mm inducer / 60mm exducer
  • Turbine Wheel: 54mm inducer / 47mm exducer
  • Cooling: Water-Cooled CHRA
