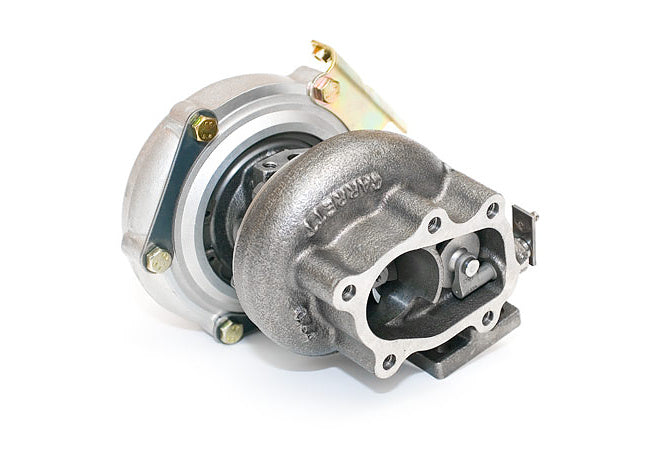

GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator Photo-0
GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator Photo-1

GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator

AED 5,884.25

Tax included. Shipping calculated at checkout

GARRETTP/N: 836026-5011S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650



Ball bearing.
Oil & Water cooled bearign system.
Direct replacement upgrade turbocharger for GT2560R - 466541-0001 & GT2560R - 466541-0004 used on Nissan SR20DET engine
Upgrade turbocharger for GT2860RS - 739548-0001; turbine stage outline interchangeable.
Provide better boost response than GT2871R - 743347-0001 & GT2871R - 743347-0002 turbochargers.
T25 turbine inlet flange.
Great size for applications with packing constrains.
Ideal for smaller displacement engines making up to 460 Hp.
Turbine housing option available.
Actuator not include.
HORSEPOWER 280HP - 460HP
DISPLACEMENT 1.8L - 2.7L

Turbo Part Number Model Turbine side Compressor side
New Part Old Part O.D.mm I.D.mm TRIM A/R O.D.mm I.D.mm TRIM A/R
836026-5011S 472560-5015S GT2871R 53.8 47.0 76 .64 71.0 51.2 52 .60




C.H.R.A. Part Number
New Part CHRA Old Part CHRA
835998-5009S 446179-5067S

Applicable Garrett P/N's:
TBO -  472560-0015
            472560-15
CHRA - 446179-0067
