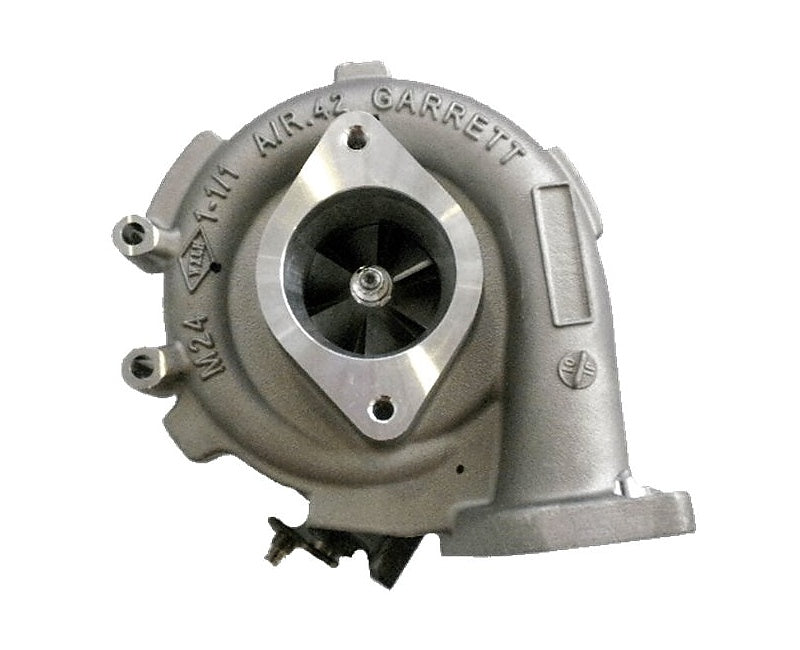

GARRETT 836026-5005S Turbocharger GT2860R TRIM 62 A/R 0.60
Quantity:
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
GARRETT 836026-5005S Turbocharger GT2860R TRIM 62 A/R 0.60
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Ball bearing
Oil & Water cooled bearign system
T25 turbine inlet flange with threaded bolt holes instead of traditional through holes.
Turbine housing has a unique "compact" 5-bolt outlet that is not interchangeable with traditional T25 5-bolt outlets.
Turbine housing is cast from high-nickel "Ni-Resist" material for extreme applications.
Turbine wheel is cast from "Inconel" material for extreme applications.
Direct replacement upgrade turbocharger for GT2556R (702987-0007) used on Nissan Skyline R34 GT-R.
Great size for applications w/packing constrains.
Ideal for smaller displacement engines making up to 360 Hp.
Turbine housing option available
| Turbo Part Number | Model | Turbine side | Compressor side | |||||||
| New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R | |
| 836026-5005S | 707160-5005S | GT2860R | 53.8 | 47.0 | 76 | .64 | 60.0 | 47.0 | 62 | .60 |
HORSEPOWER 350HP - 360HP
DISPLACEMENT 1.8L - 3.0L
| C.H.R.A. Part Number | |
| New Part CHRA | Old Part CHRA |
| 835998-5006S | 446179-5051S |
Applicable Garrett P/N's:
707160-0005
GT2860R
446179-0051
707160-05
707160-5005S
836026-5
836026-5005
836026-05
836026-5005S
