GARRETT 836014-5003S CHRA Cartridge Trim 84 (60 mm) for GARRETT GTX3076R

Sale priceAED 4,384.50 Regular priceAED 5,480.62

Tax included. Shipping calculated at checkout

GARRETTP/N: 836014-5003S
Only 1 unit left
Quantity:
Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 836014-5003S CHRA Cartridge Trim 84 (60 mm) for GARRETT GTX3076R

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup currently unavailable

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description GARRETT 836014-5003S CHRA Cartridge Trim 84 (60 mm) for GARRETT GTX3076R

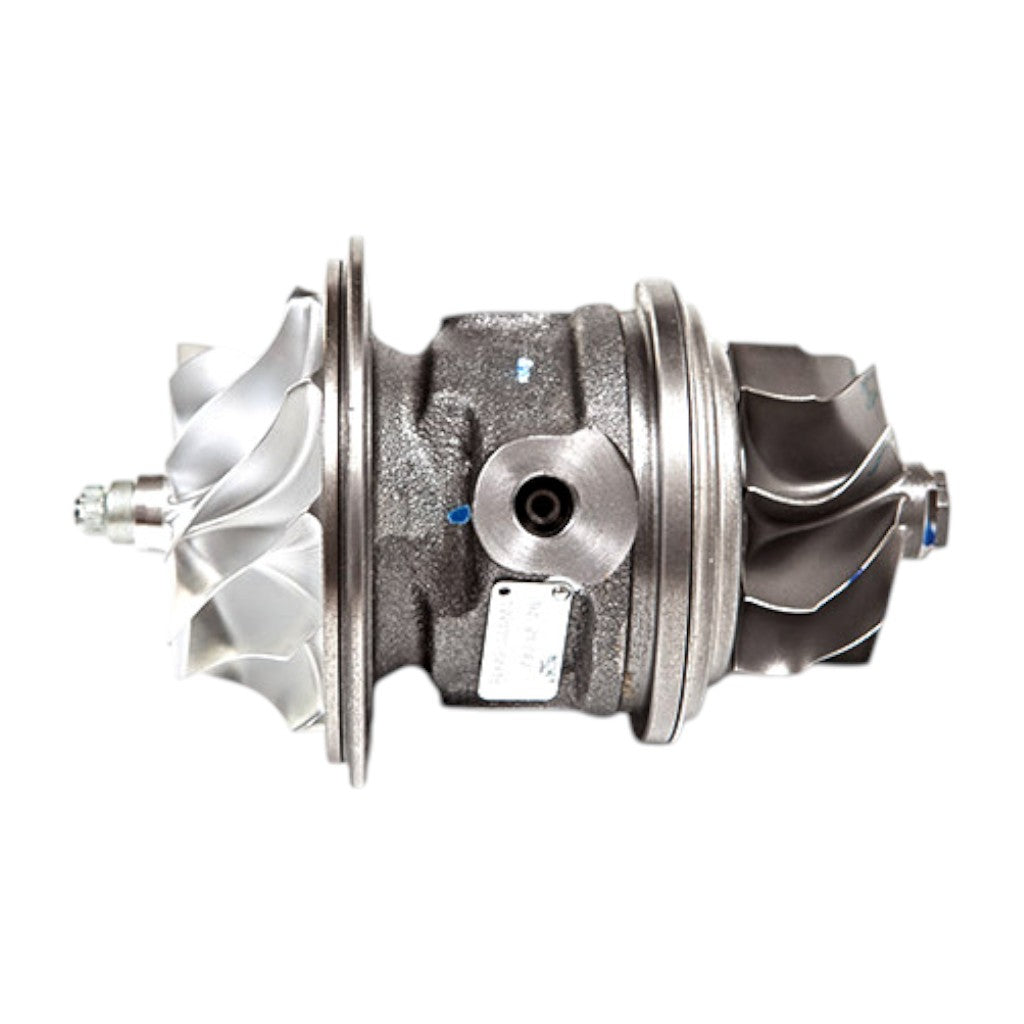

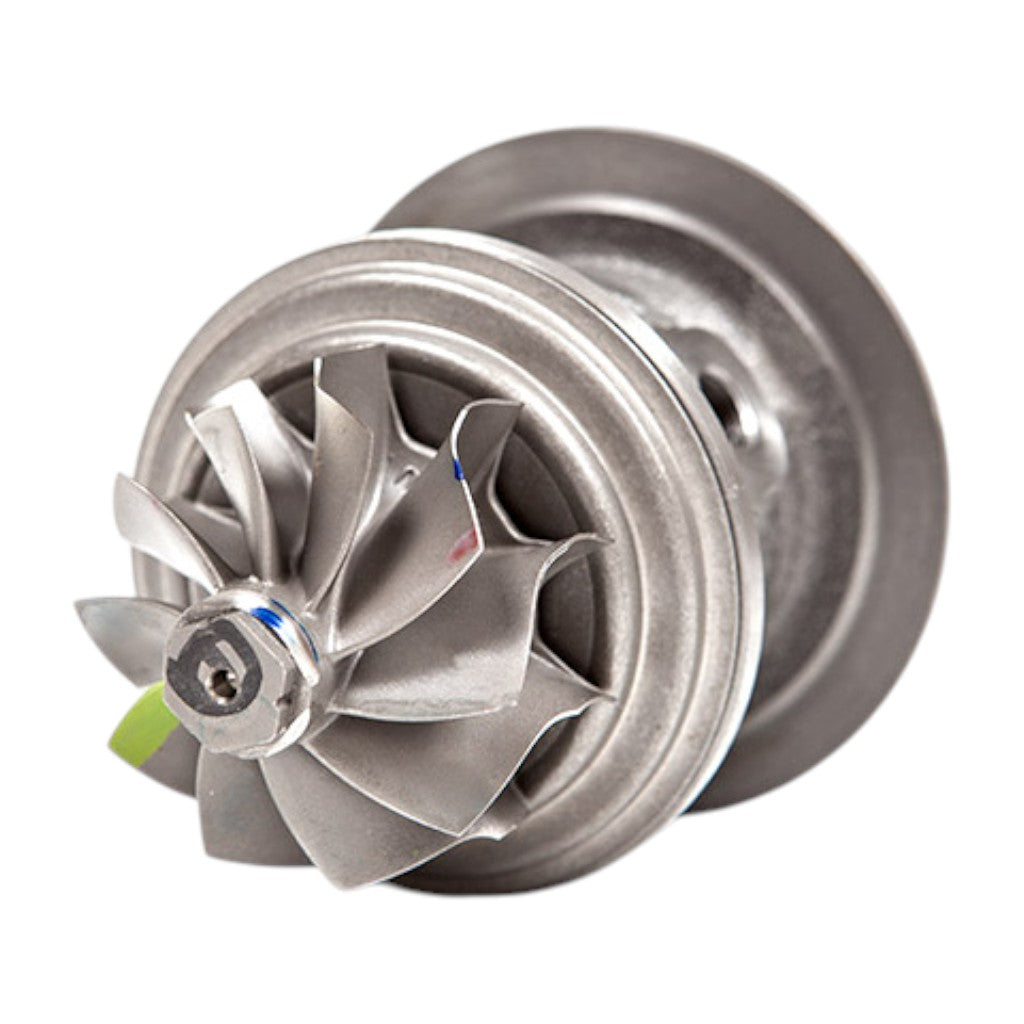

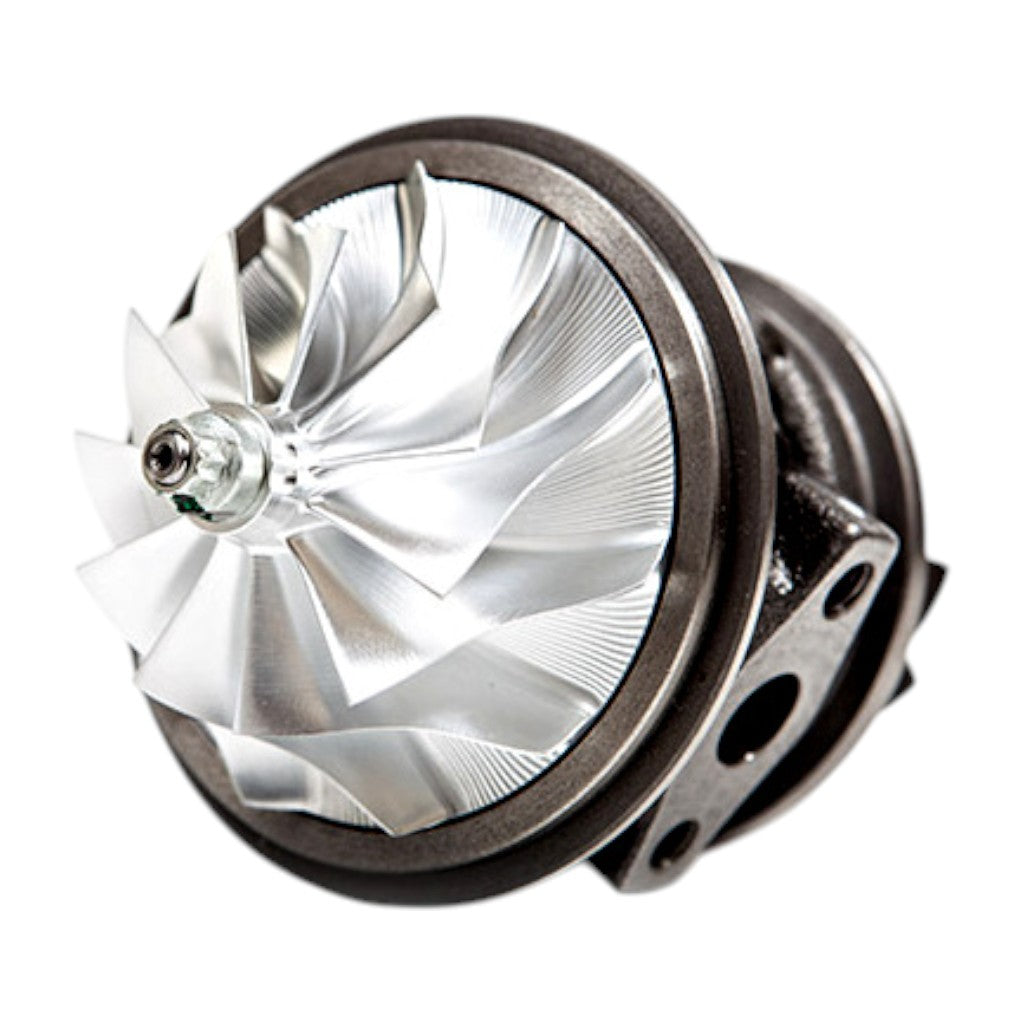

The GARRETT 836014-5003S CHRA cartridge is a complete center hub rotating assembly designed for the GTX3076R turbocharger. This unit integrates the shaft that connects the compressor wheel and turbine, ensuring reliable and efficient operation. Constructed with Garrett’s proven durability, it is engineered to withstand demanding performance conditions, making it ideal for turbocharger rebuilding or servicing. Featuring oil and water cooling, the bearing housing provides consistent thermal stability and longevity under high load applications.

  • High-strength Garrett CHRA assembly for GTX3076R turbos
  • Trim 58 compressor (76.6 mm – 58.0 mm)
  • Trim 84 turbine (60.0 mm)
  • Oil and water-cooled bearing housing for improved durability
  • Direct replacement solution for GTX3076R turbochargers

Specifications:

  • Compressor Side: Trim 58 (76.6 mm – 58.0 mm)
  • Turbine Side: Trim 84 (60.0 mm)
  • Bearing Housing: Oil & Water Cooled

Fitment:

  • GTX3076R - 788550-5007S
  • GTX3076R - 788550-5008S

Applicable Garrett Part Numbers:

  • 700177-5042S
