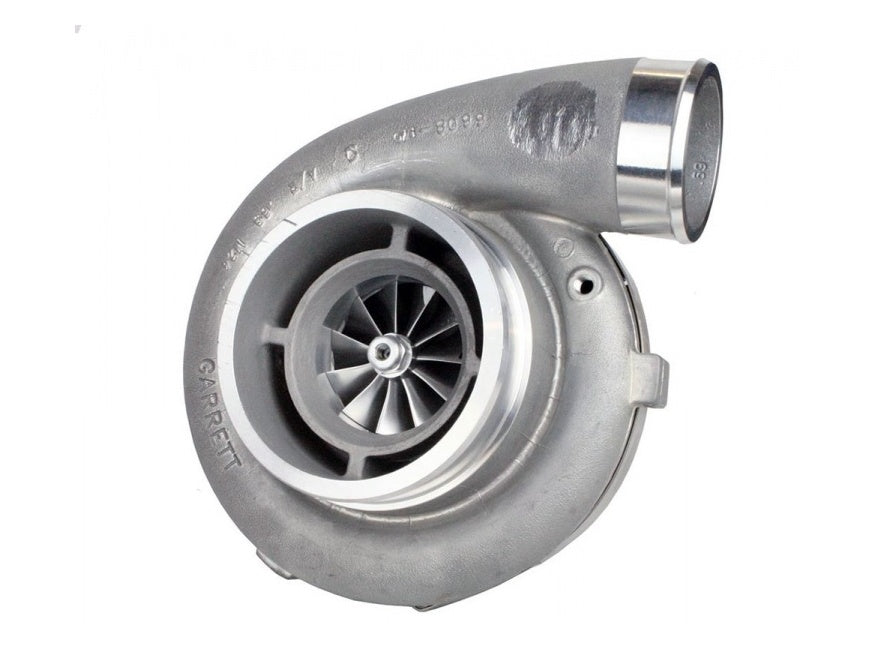

GARRETT 800270-5001S Turbocharger GTX4508R 87mm; 85 Trim 108mm; 55 Trim 0.69 A/R 80mm
GARRETT 800270-5001S Turbocharger GTX4508R 87mm; 85 Trim 108mm; 55 Trim 0.69 A/R 80mm
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
The next step in the evolution of the turbocharger is here! Garrett® GTX-R Turbos feature all new compressor wheels with next generation aerodynamics and improved efficiency to deliver wicked performance!
Garrett® GTX-R Turbochargers provide higher flow and greater boost pressure ratios beyond the world-class Garrett GT Series compressor wheels
- 10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
- Forged, fully machined wheels (billet) for expedited release
- 11 Full-blade design for improved efficiency and ultra quiet operation
- Outline interchangeable with Garrett® GT Series turbos

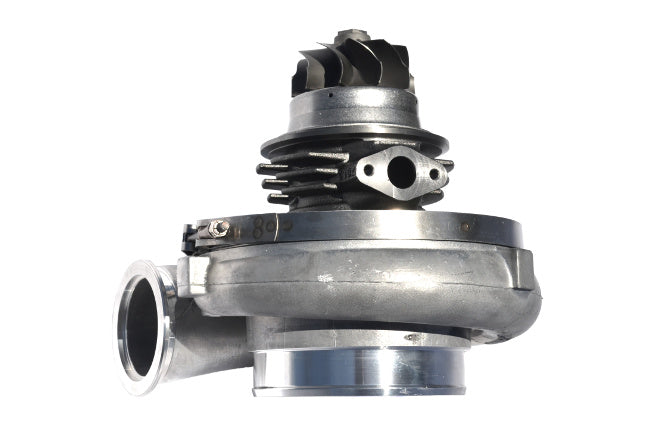

- Drag Race GTX4508R
- Special 55 Trim, 79.8 mm inducer and 108 mm exducer with NO TURBINE HOUSING
- This turbo is built meet to class requirement that are limited to a 80mm compressor wheel
- Turbine side of this turbo will mate to any GT45 series turbine housing
- Same compressor housing style as GT45
- Externally exterchangeable with an existing GT45 turbo setup
|
Options Housing
| Part Number | Size | Material | A/R | TRIM | Inlet | Outlet |
| 757707-0605 | GT45 | SS | 1.00 | 84 | V-Clamp | V-Clamp |
| 757707-0600 | GT45 | SS | 1.00 | 85 | V-Clamp | V-Clamp |
| 757707-0005 | GT45 | Ni-Resist | 1.01 | 85 | T4 twin scroll | V-Clamp |
| 757707-0006 | GT45 | Ni-Resist | 1.15 | 85 | T4 twin scroll | V-Clamp |
| 757707-0007 | GT45 | Ni-Resist | 1.28 | 85 | T4 twin scroll | V-Clamp |
| 757707-0008 | GT45 | Ni-Resist | 1.44 | 85 | T4 twin scroll | V-Clamp |
Garret part old
| Turbo Part | CHRA Part |
| 800270-1 | 451888-45 |
| 800270-5001S |
