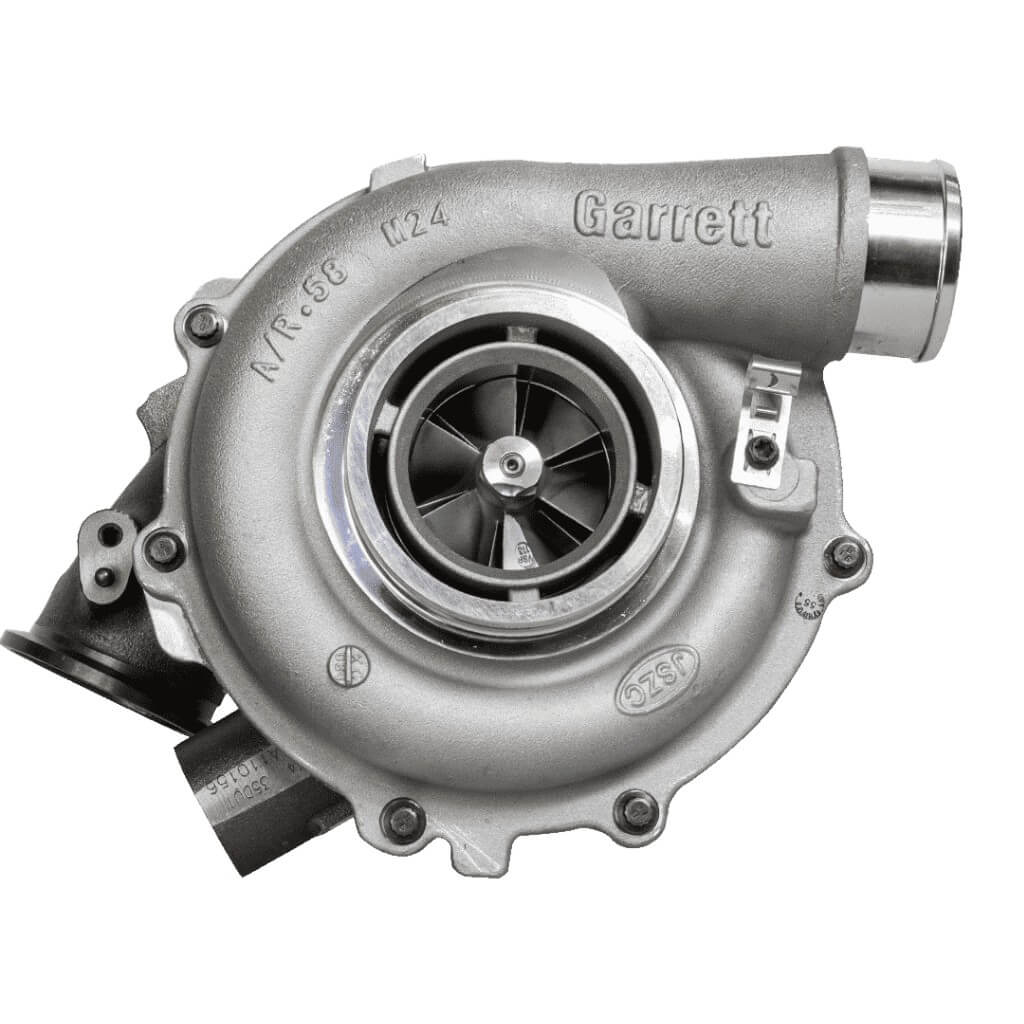

GARRETT 777469-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0LD 2003 Photo-0

GARRETT 777469-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0LD 2003

AED 8,365.81

Tax included. Shipping calculated at checkout

GARRETTP/N: 777469-5002S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 777469-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0LD 2003

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description GARRETT 777469-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0LD 2003

The Garrett GT3788VA turbocharger is designed as a performance upgrade for the Ford Power Stroke 6.0L (2003), incorporating the patented Advanced Variable Nozzle Turbine (AVNT) technology. This system uses nine movable vanes to precisely control exhaust flow, significantly improving turbine efficiency, boost response, and overall engine performance across the entire RPM range.

Specifications

  • Power Rating: 560 HP
  • Compressor Inducer Diameter: 64 mm
  • Compressor Exducer Diameter: 88 mm
  • Compressor Trim: 52
  • Compressor A/R: 0.58
  • Turbine Inducer Diameter: 73 mm
  • Turbine Exducer Diameter: 66 mm
  • Turbine Trim: 84
  • Turbine A/R: 0.90
  • AVNT variable nozzle turbine with nine movable vanes for improved efficiency
  • Enhanced boost response from low RPM through peak torque range
  • Electro-hydraulic actuation with proportional solenoid for precise control
  • Upgraded compressor wheel for increased power potential
  • Maintains lower turbo speeds for improved durability at equivalent power
  • Direct-fit upgrade for Ford Power Stroke 6.0L (2003)
