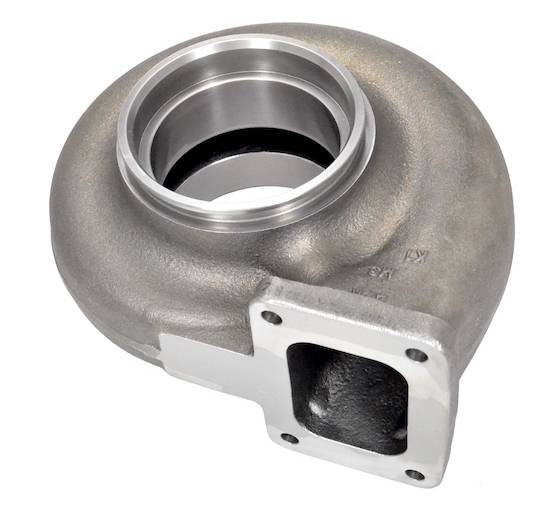

GARRETT 761208-0071 Turbine Housing Kit G55 T6/V-Band 1.00 A/R Photo-0

GARRETT 761208-0071 Turbine Housing Kit G55 T6/V-Band 1.00 A/R

AED 4,359.53

Tax included. Shipping calculated at checkout

GARRETTP/N: 761208-0071
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

GARRETT 761208-0071 Turbine Housing Kit G55 T6/V-Band 1.00 A/R

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 15% (Compared to GTX Gen II, see graph below). The large 90 trim turbine stage measures 112mm at the inducer and 106mm at the exducer. G55 is offered with stainless steel turbine housings in:
V-Band Inlet: 1.24 A/R, 1.40 A/R
T6 Inlet: 1.00 A/R, 1.12 A/R, and 1.24 A/R, 1.40 A/R

Part Numbers

  • 1.24 A/R: 761208-0069 (V-band inlet & Outlet)
  • 1.40 A/R: 761208-0070 (V-band inlet & Outlet)
  • 1.00 A/R: 761208-0071 (T6 inlet & V-Band Outlet)
  • 1.12 A/R: 761208-0072 (T6 inlet & V-Band Outlet)
  • 1.24 A/R: 761208-0073 (T6 inlet & V-Band Outlet)
  • 1.40 A/R: 761208-0074 (T6 inlet & V-Band Outlet)
