GARRETT 740902-0028 Turbine Housing Kit GT/GTX30R Div T3/V-Band 1.01 A/R (Ni-Resist)

Description GARRETT 740902-0028 Turbine Housing Kit GT/GTX30R Div T3/V-Band 1.01 A/R (Ni-Resist)

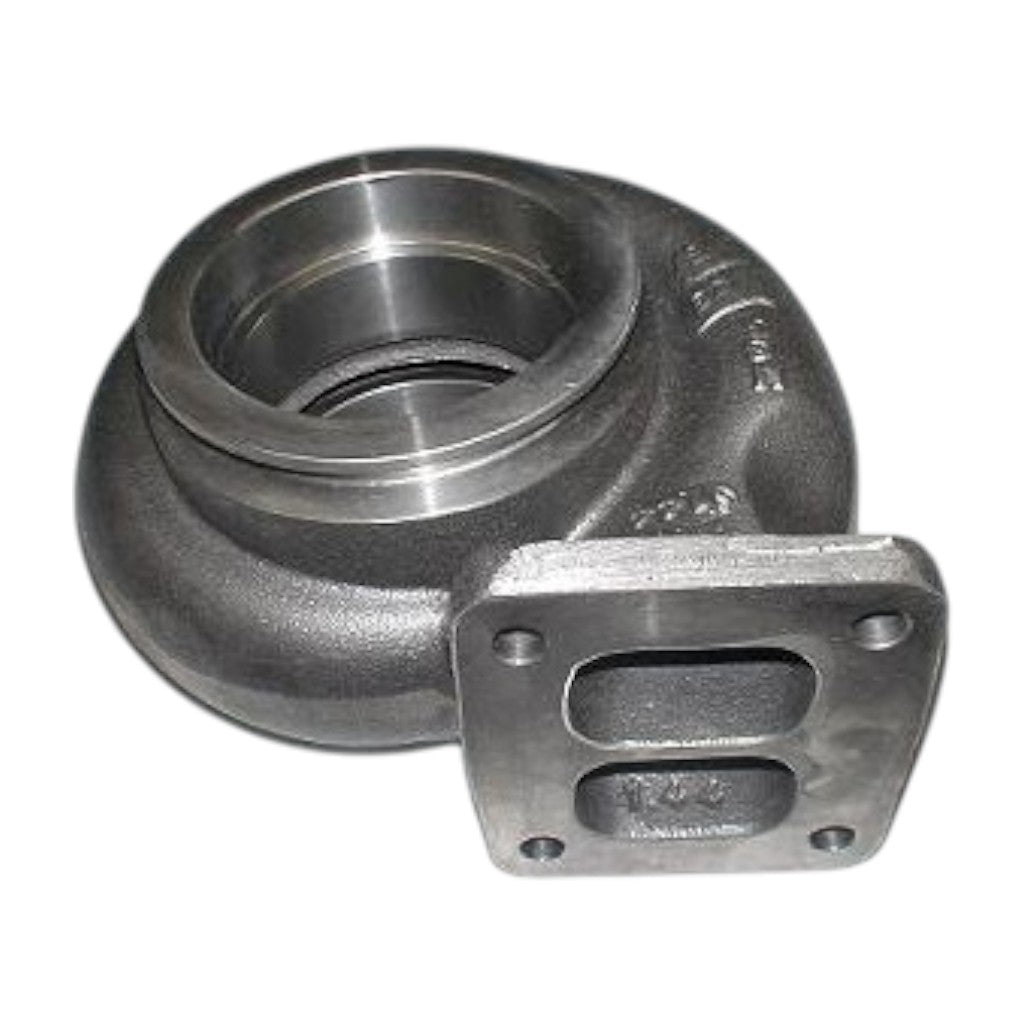

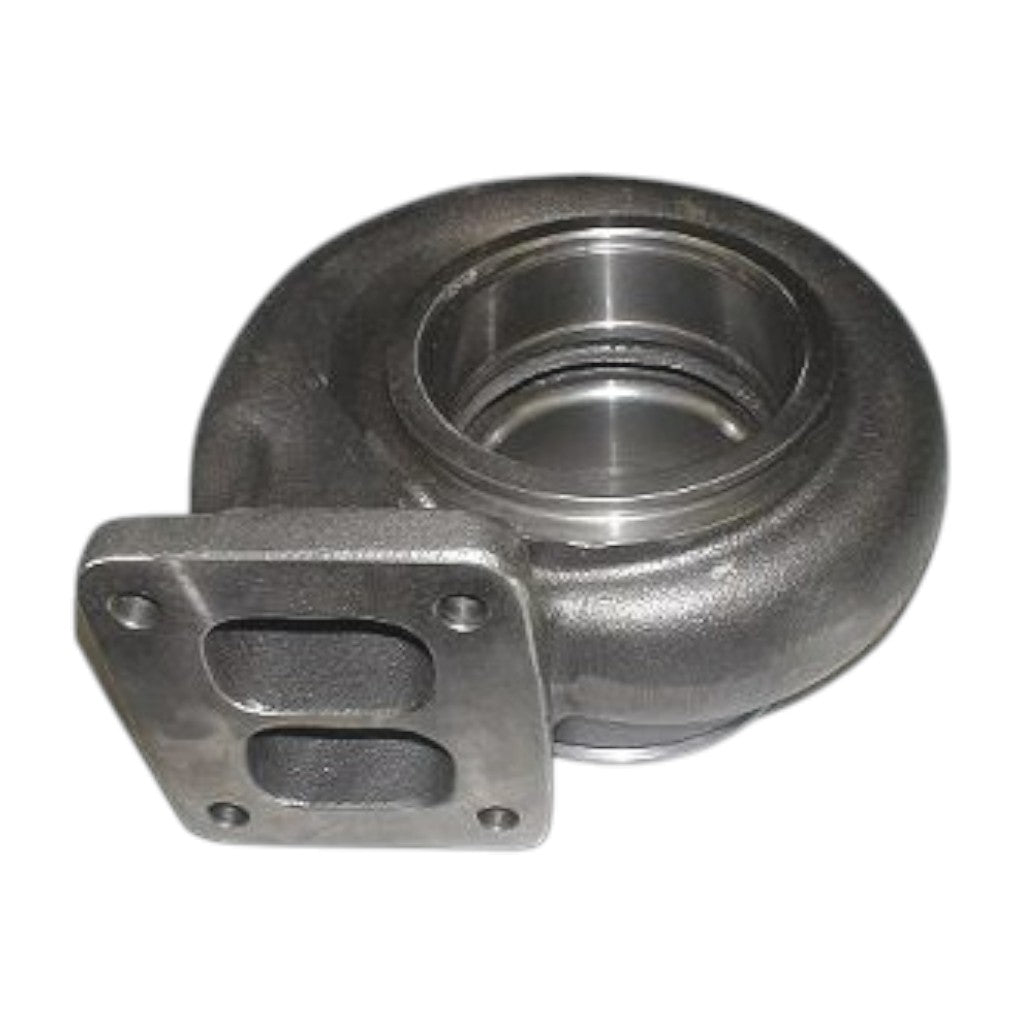

The GARRETT 740902-0028 turbine housing is designed for GT30 and GTX30 series turbochargers, featuring a T3 twin-scroll inlet and a 3.55-inch (90.2 mm) V-band outlet. Manufactured from Ni-Resist, a high-nickel alloy known for superior heat resistance, this housing supports high-temperature operation common in motorsport and high-performance applications. With a 1.01 A/R ratio and 84 trim, it ensures optimal exhaust flow and turbine efficiency.

• Compatible with GT30/GTX30 turbochargers featuring a 60 mm turbine wheel
• Ni-Resist material offers excellent thermal durability under extreme conditions
• T3 twin-scroll flange improves exhaust pulse energy utilization
• 3.55-inch V-band outlet simplifies installation and enhances sealing

Specifications:

• Part Number: 740902-0028
• Size: GT30
• Material: Ni-Resist
• A/R: 1.01
• Trim: 84
• Inlet: T3 twin scroll
• Outlet: V-clamp, 3.55" (90.2 mm)
