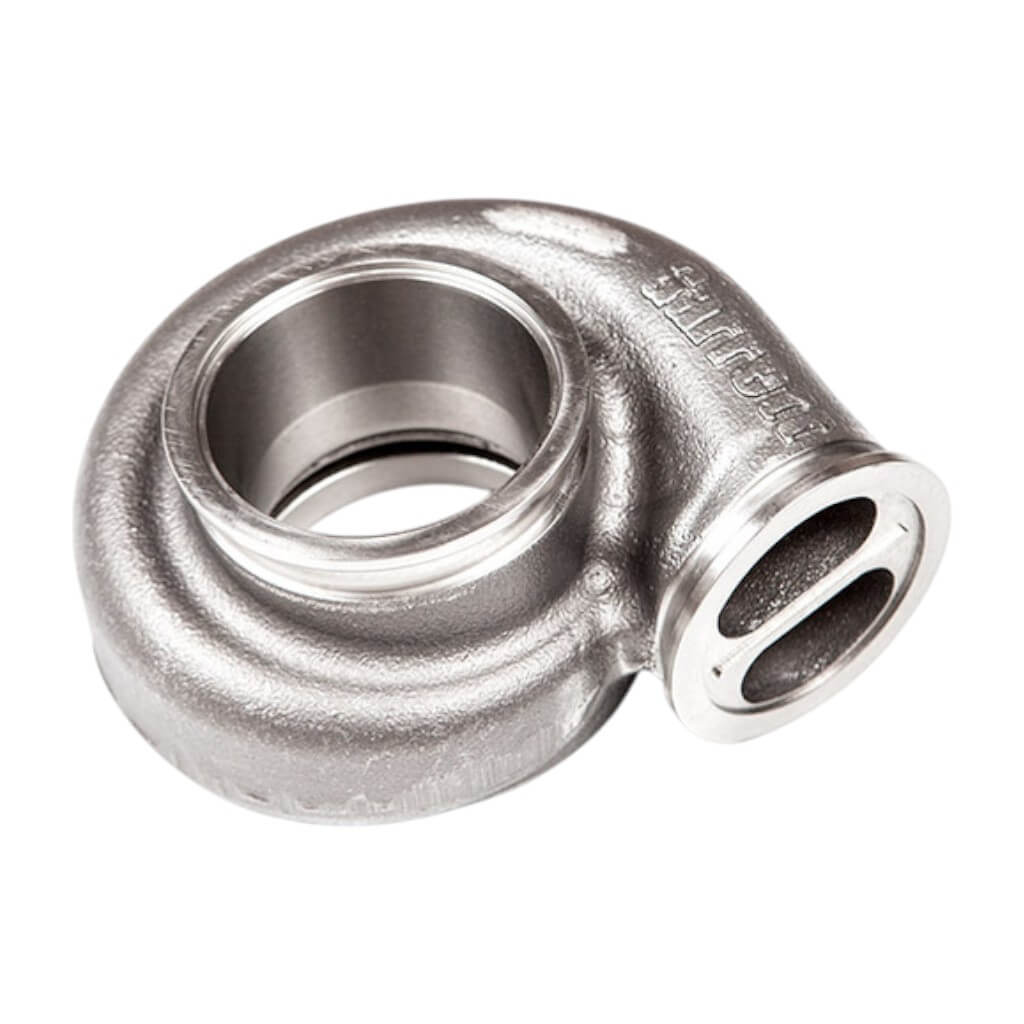

GARRETT 740902-0022 Turbine Housing Kit GT30 Div V-Band/V-Band 1.01 A/R (Ni-Resist)

Description GARRETT 740902-0022 Turbine Housing Kit GT30 Div V-Band/V-Band 1.01 A/R (Ni-Resist)

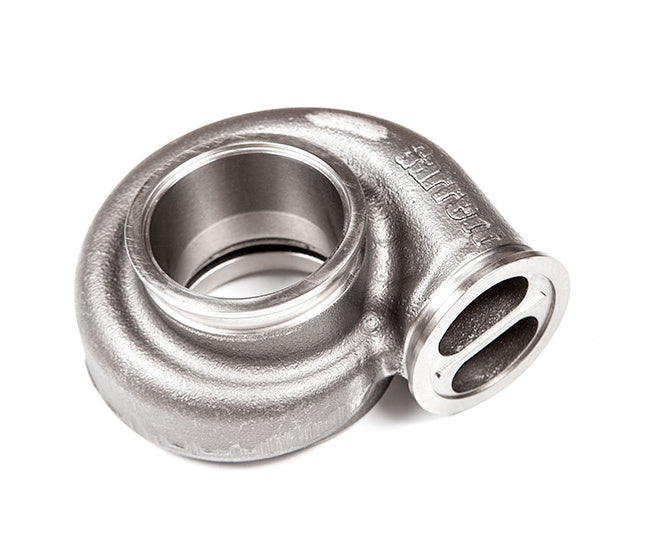

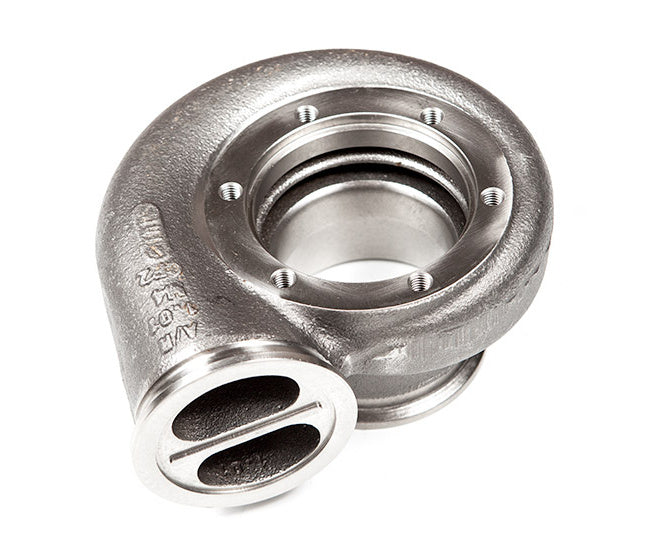

The GARRETT 740902-0022 turbine housing kit is engineered for high-performance applications utilizing GT30 and GTX30 series turbochargers. This internally gated twin-scroll housing features V-band inlet and outlet connections to ensure optimal sealing and simplified installation. Constructed from Ni-Resist material, the housing offers superior heat resistance, making it suitable for demanding motorsport environments. With a 1.01 A/R ratio and 84 trim, it is optimized for flow and response across a wide operating range.

• Compatible with Garrett GT30 and GTX30 series turbochargers
• Twin-scroll design enhances pulse energy utilization and turbo efficiency
• Ni-Resist construction provides excellent thermal durability under extreme conditions
• V-band inlet and outlet facilitate secure, leak-free installation and ease of service

Specifications:

• Part Number: 740902-0022
• Size: GT30
• Material: Ni-Resist
• A/R: 1.01
• Trim: 84
• Inlet: Twin scroll / V-Clamp (3.00" / 76.2 mm)
• Outlet: V-Clamp (3.55" / 90.2 mm)
