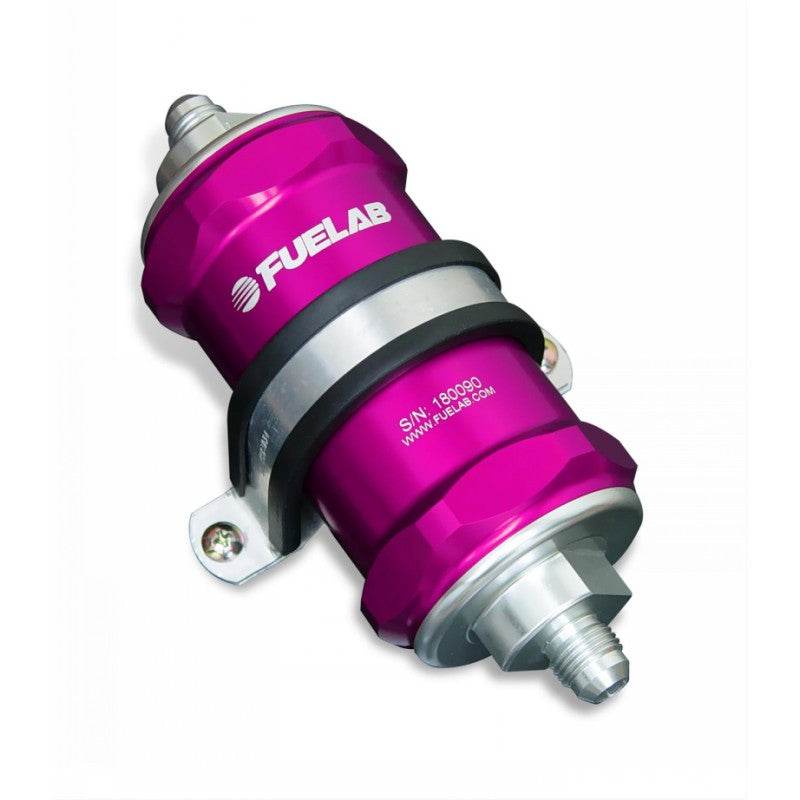

FUELAB 84831-4 In-Line Fuel Filter With Check Valve (6AN in/out, 3 inch 6 micron fiberglass element) Purple

6AN inlet/outlet Fuelab High Flow Integrated Filter/Check Valve with (3 inch) 6 micron / Micro-Fiberglass Element

Filter Features

• Integrated Check Valve Assembly with filter
• Helps maintain fuel pressure after shutdown
• Greater flow capacity
• Increased filtration capacity
• Reduced maintenance frequency
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• -6AN male inlet/outlets
• Includes low profile saddle clamp mounting bracket(s)
• Replaceable filter element
• 200 PSIG maximum pressure rating
• Backed by a limited lifetime warranty

Includes (3 inch) 6 micron / Micro-Fiberglass Element - Our most advanced filter element provides extra particle protection and reduces maintenance requirements with improvements in filter efficiency. This element is disposable and not to be cleaned.

Models 848xx and 858xx integrated check valve and filter assemblies allow your fuel system to maintain fuel pressure after engine and pump shut down. Using a check valve in your fuel system helps prevent vapors building up in your fuel rails during engine cooling. Having a check valve will also help maintain fuel pressure during engine start-up. Our Check Valves are also Methanol, Ethanol, gasoline, and diesel fuel compatible (10 Micron / Paper elements are NOT compatible with Methanol or E85 usage). Since we integrate these two components, the check valve assembly is protected by the filter. No more scrambling to add a separate component and adapting it for your fuel system with extra fittings. FUELAB has both, all in one.
