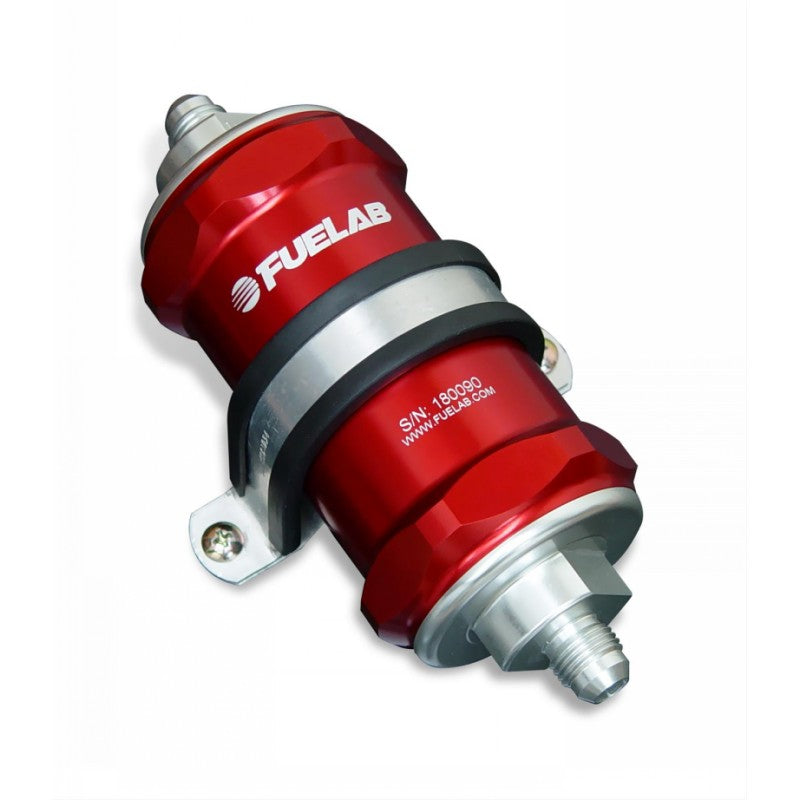

FUELAB 84812-2 In-Line Fuel Filter With Check Valve (8AN in/out, 3 inch 40 micron stainless steel element) Red

8AN inlet/outlet Fuelab High Flow Integrated Filter/Check Valve with (3 inch) 40 micron / Stainless Steel Element

Filter Features

• Integrated Check Valve Assembly with filter
• Helps maintain fuel pressure after shutdown
• Greater flow capacity
• Increased filtration capacity
• Reduced maintenance frequency
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• -8AN male inlet/outlet
• Includes low profile saddle clamp mounting bracket(s)
• Replaceable or cleanable filter element
• 200 PSIG maximum pressure rating
• Backed by a limited lifetime warranty

Includes (3 inch) 40 micron / Stainless Steel Element - Made for harsh racing conditions and ultimate fuel compatibility. It is cleanable and does not necessarily require replacement for maintenance.

Models 848xx and 858xx integrated check valve and filter assemblies allow your fuel system to maintain fuel pressure after engine and pump shut down. Using a check valve in your fuel system helps prevent vapors building up in your fuel rails during engine cooling. Having a check valve will also help maintain fuel pressure during engine start-up. Our Check Valves are also Methanol, Ethanol, gasoline, and diesel fuel compatible (10 Micron / Paper elements are NOT compatible with Methanol or E85 usage). Since we integrate these two components, the check valve assembly is protected by the filter. No more scrambling to add a separate component and adapting it for your fuel system with extra fittings. FUELAB has both, all in one.
