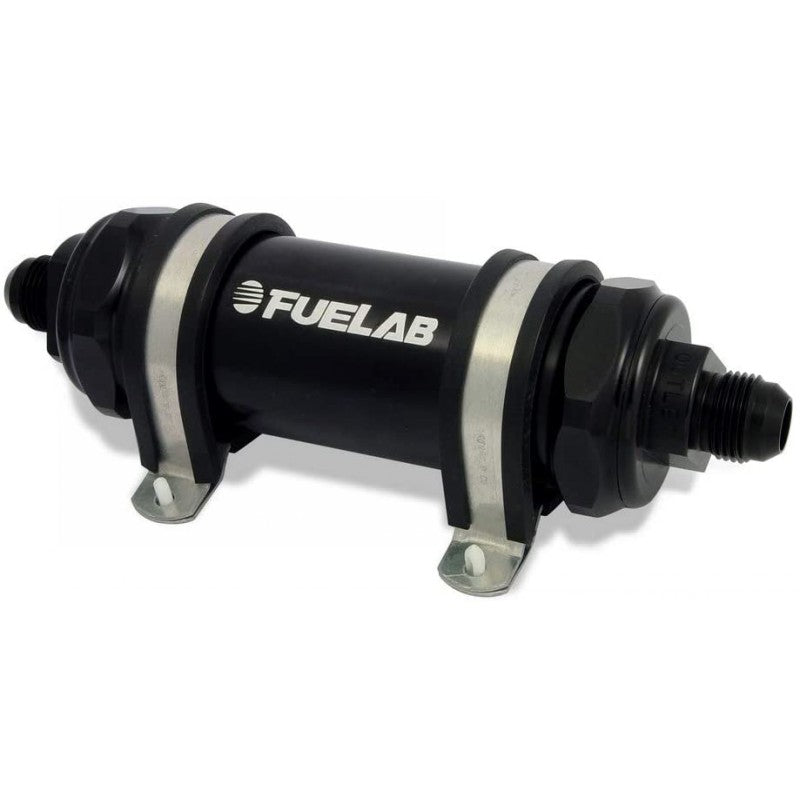

FUELAB 82811-1 In-Line Fuel Filter (6AN in/out, 5 inch 40 micron stainless steel element) Black

6AN inlet/outlet Fuelab filter with long (5 inch) 40 micron / Stainless Steel Element

Filter Features

• Less pressure drop
• Greater flow capacity
• Increased filtration capacity
• Reduced maintenance frequency
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• -6AN male inlets and outlets
• Includes low profile saddle clamp mounting bracket(s)
• Replaceable or cleanable filter element
• 200 PSIG maximum pressure rating
• Backed by a limited lifetime warranty

Includes Long (5 inch) 40 micron / Stainless Steel Element - Made for harsh racing conditions and ultimate fuel compatibility. It is cleanable and does not necessarily require replacement for maintenance.

FUELAB In-Line Fuel Filters keep your engine running clean. They feature male AN / 37°Flared fitting end caps, so you can attach them directly to other fuel system components*. Also featured are machined internal radii for minimal pressure drop. The compact 818 Series Fuel Filter includes a 3-inch element. For greater flow capacity and increased filtration, the larger 828 Series Fuel Filter is equipped with a 5-inch element. (10 Micron / Paper elements are NOT compatible with Methanol or E85 usage). *With AN female ports. O-ring required. Consult component manufacturer’s port specifications.
