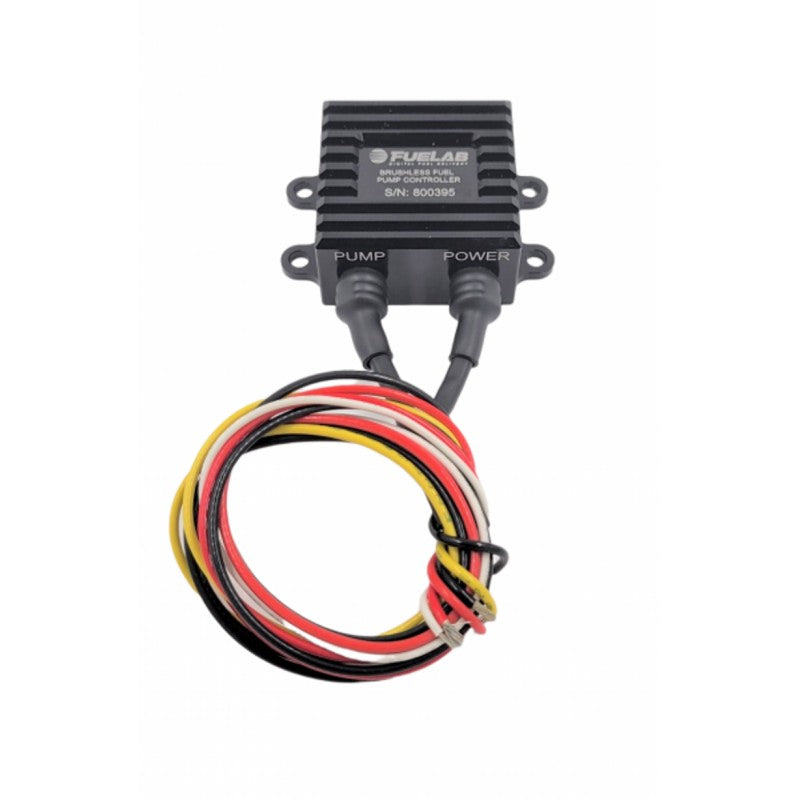

FUELAB 72004 Fuel Pump Controller DC Brushless (External) 25A
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
FUELAB 72004 Fuel Pump Controller DC Brushless (External) 25A
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Electronic (External) DC Brushless Fuel Pump Controller (Full or Variable Speed, PWM, 0-5v Input) 25A Rated
Features
- Advanced CAN Integration
- User friendly CANopen communication allows easy tie in to controller
- CAN Customizable calibration options
- Data Streams include - Pump State (on,off), Pump Voltage, Pump Amperage, Pump Motor speed, PWM frequency and controller temp
- Offers multiple default and data codes for accurate diagnostics
- Compatible with 3-Phase DC Brushless Fuel Pumps
- (3-wire) without Internal Controllers Only
- 12 and 24v electrical system compatibility
- Billet Aluminum Enclosure
- Backed by a limited lifetime warranty
Pulse Width Modulation Compatibility (PWM) or 0-5v Input Signal
- Compatible with most aftermarket ECU's with PWM output frequency
- Compatible from 100Hz to 5000Hz
