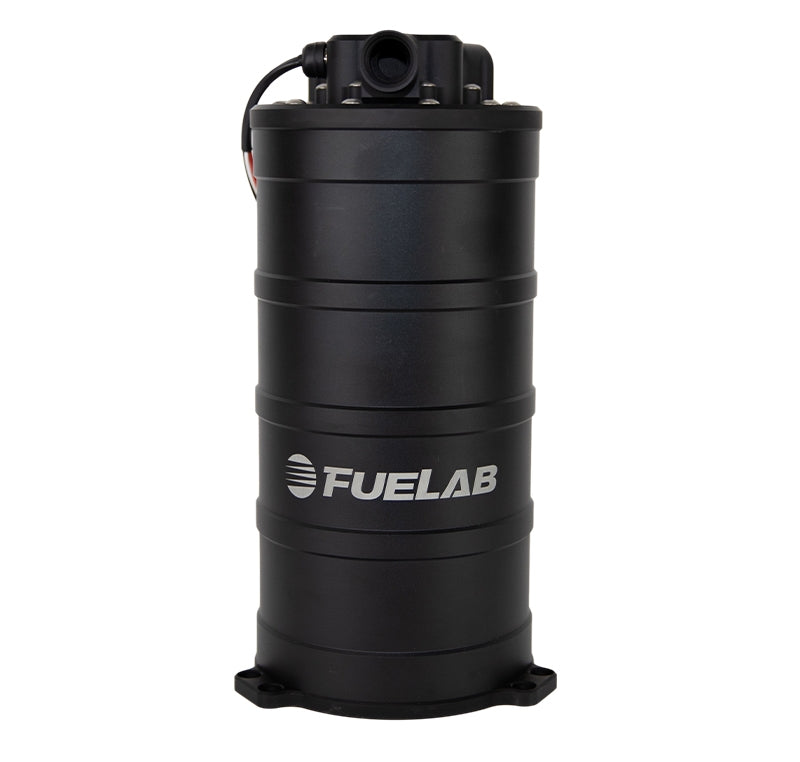

FUELAB 61713 Fuel Surge Tank System 500 LPH, 290 mm Tall
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
FUELAB 61713 Fuel Surge Tank System 500 LPH, 290 mm Tall
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
2.7L Fuel Surge Tank System with Speed Controllable, Twin Screw DC Brushless Fuel Pump, 500lph
Our latest entry into cutting edge fuel system products is our 617 Series Fuel Surge Tank Systems. These 2.1L or 2.7L Fuel Surge Tank Systems utilize our H/E Series brushless twin screw pumps with integrated controller electronics and PWM speed control. 8 models are available in 250lph, 350lph, 500lph and 600lph flow configurations to support up to 1500 horsepower. For maximum efficiency delivering in circuit, drift, or off-road use where fast changes in G-Forces are an issue, this system eliminates fuel slosh problems even with low fuel levels. Compatible with gasoline, ethanol and methanol fuels.
Product Features:
- Allows for high fuel flow output with little or no modifications to the OE fuel tank and module
- Prevents fuel sloshing by maintaining a ready volume of fuel
- 290mm Tall
- FST Rated volume: 2.7 L
- Single Twin Screw DC Brushless fuel pump included
- Rated to flow 350lph at 45psi, 125psi Max
- Integrated controller with PWM speed control
- Billet aluminum and O-ring Construction using -8AN Fuel Ports
- Compatible with Pump and Racing Gasoline, and E85
- Return line is required, returns excess fuel back to the vehicle fuel tank
- Optional FST Upgrade Accessory Kits Sold Separately
- Backed by a limited lifetime warranty
Pulse Width Modulation Compatibility (PWM)
- Compatible with most aftermarket ECU's with PWM output frequency
- Compatible from 100Hz to 2500Hz
- AEM
- ECU Masters
- Fueltech
- Haltech
- Holley
- Link Engine Management
- Megasquirt
