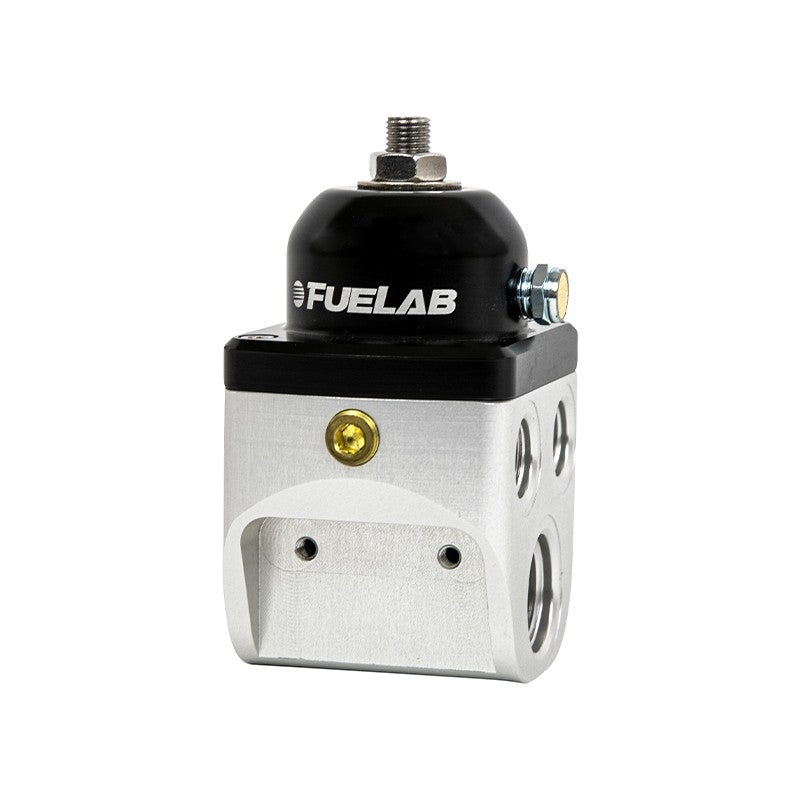

FUELAB 58501 Fuel Pressure Regulator Blocking Style Carbureted 4 port High Flow (4-12 psi, 10AN-In, 6AN-Out)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
FUELAB 58501 Fuel Pressure Regulator Blocking Style Carbureted 4 port High Flow (4-12 psi, 10AN-In, 6AN-Out)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Universal CARB Adjustable Fuel Pressure Regulator, 4 Port Blocking Style, 4-12 psi, (2) -10AN Inlet, (4) -6AN Outlets
Regulator Features
- Gasoline, Diesel, methanol and ethanol fuel compatible
- Advanced poppet design for smooth regulating capability
- No creep soft seat
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Changeable seat assembly
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8” NPT gauge port with plug for external pressure gauge
- 1/8” NPT breather vent
- Backed by a limited lifetime warranty
The 585xx Series Fuel Pressure Regulator expands the line of Blocking Style (non-bypass) Regulators like our 555xx and 575xx Series, in a traditional 4-Port package. The main seat assembly can be quickly exchanged in case of seat damage, such as debris. The seat assembly can be taken apart further to enable o-ring replacement of the Soft-Seat design. With dual -10AN Inlet Ports and four -6AN Outlet Ports (port spread allows for -8AN line size) gives the regulator ability for extremely high flow rates with a flattened curve for pressure stability through its use of a 1.5 inch diaphragm assembly.
