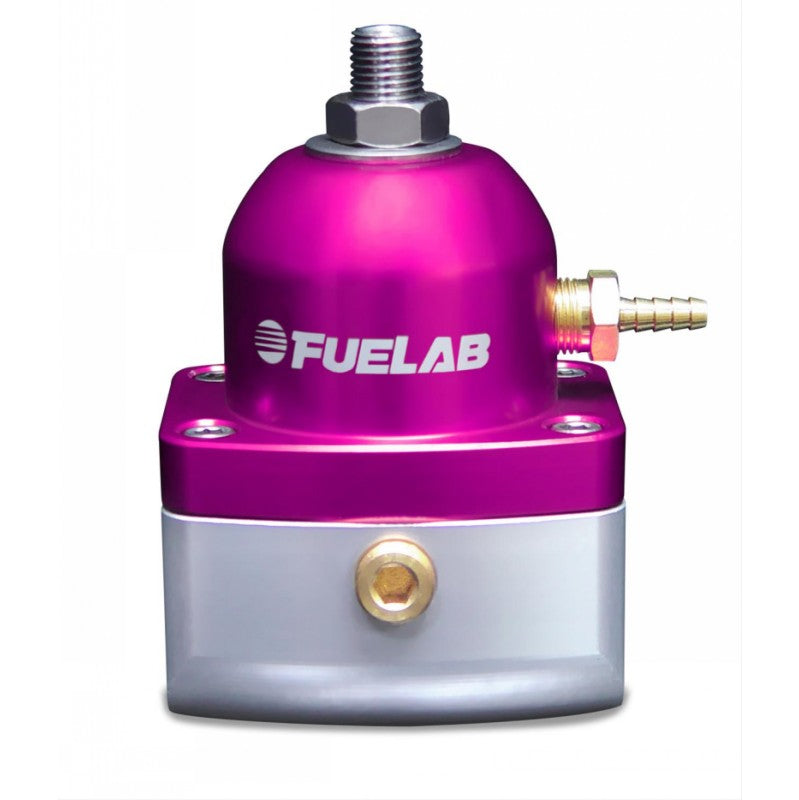

FUELAB 53502-4-T Mini Fuel Pressure Regulator TBI (10-25 psi, 6AN-In, 6AN-Out) Purple
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
FUELAB 53502-4-T Mini Fuel Pressure Regulator TBI (10-25 psi, 6AN-In, 6AN-Out) Purple
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Universal TBI Adjustable Mini Fuel Pressure Regulator, 10-25 psi, (2) -6AN Inlets, (1) -6AN Return
Regulator Features
- Weighs 50% less than our 515/525 Series
- Easy installation in limited space areas
- Two -6AN inlet ports and one -6AN return port
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8” NPT gauge port with plug for external pressure gauge
- 1/8” NPT pressure reference port with barbed fitting
- Backed by a limited lifetime warranty
FUELAB® 535/545 Series Fuel Pressure Regulators have all the same great features as our 515/525 series, only smaller and weigh 50% less. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 10 PSID to fuel injected applications up to 125 PSID. The 535 Series Fuel Pressure Regulator has a -6AN return port located on the bottom. The 545 Series has its return port in-line with the inlet port (not on the bottom) which allows for easy installation in extremely tight locations.
