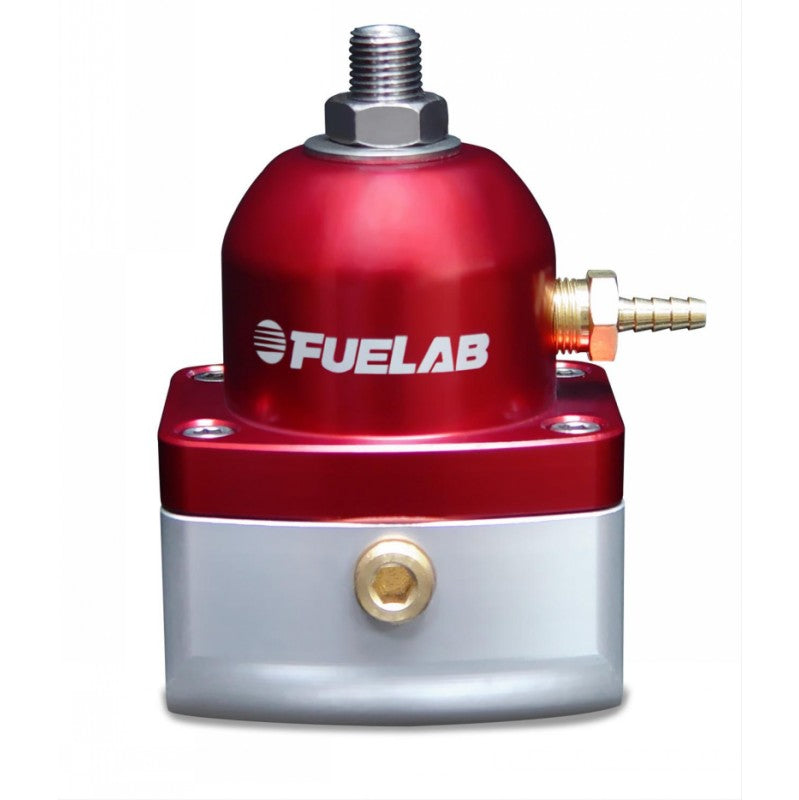

FUELAB 51502-2 Fuel Pressure Regulator EFI (25-90 psi, 6AN-In, 6AN-Out) Red
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
FUELAB 51502-2 Fuel Pressure Regulator EFI (25-90 psi, 6AN-In, 6AN-Out) Red
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Universal EFI Adjustable Fuel Pressure Regulator, 25-90 psi, (2) -6AN Inlets, (1) -6AN Return
Regulator Features
- Two -6AN inlet ports and one -6AN return port
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8” NPT gauge port with plug for external pressure gauge
- 1/8” NPT pressure reference port with barbed fitting
- Backed by a limited lifetime warranty
FUELAB® 515/525 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 PSID to fuel injected applications up to 125 PSID. The 515 Series Fuel Pressure Regulator has a -6AN return port located on the bottom. The 525 Series has its return port in-line with the inlet port (not on the bottom) which allows for easy installation in extremely tight locations.
