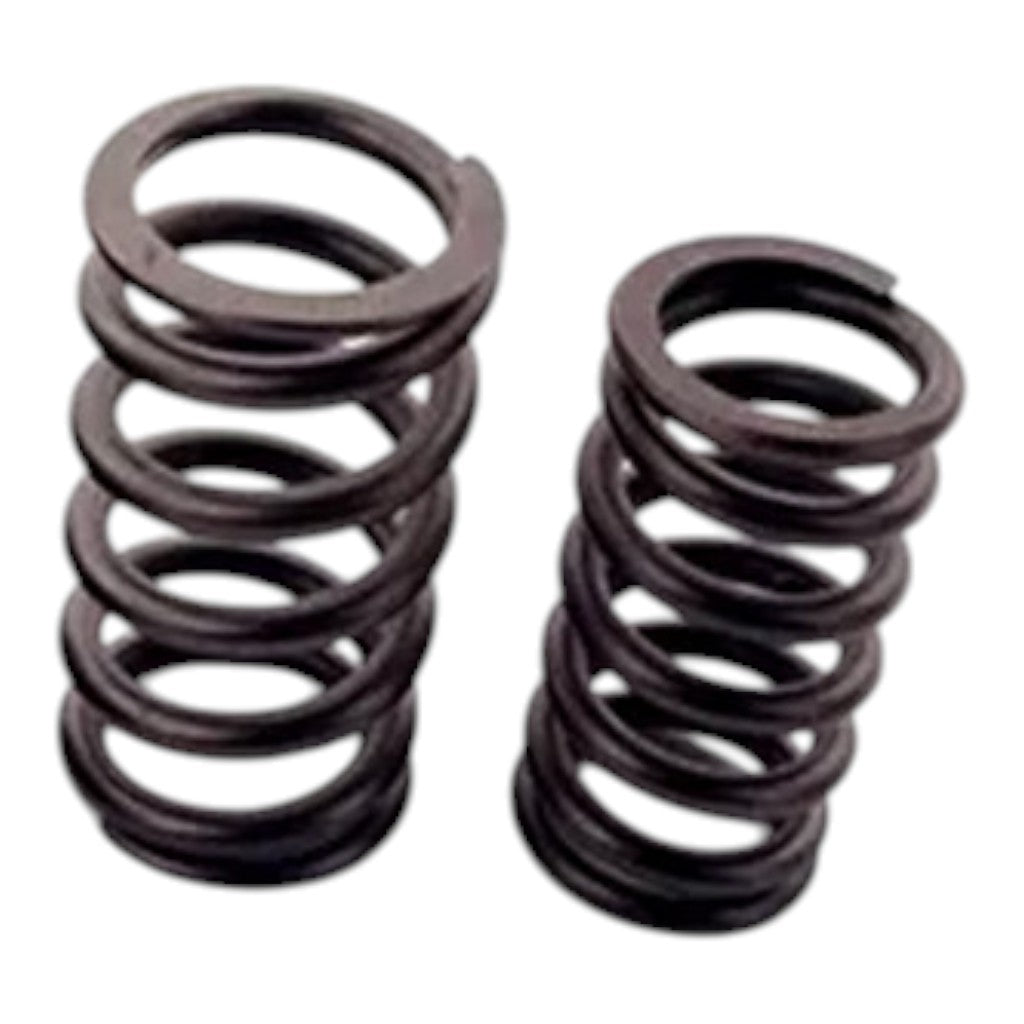

Description FERREA S10183 Valve Spring for TOYOTA GR Corolla (E210)
The FERREA S10183 valve spring is engineered for the Toyota GR Corolla (E210) equipped with the 1.6L G16E-GTS DOHC 12-valve engine. Designed as a single PAC-enhanced spring manufactured from a special alloy, it provides precise valve control under high-load and high-RPM operation. The spring is specified for both intake and exhaust applications, ensuring consistent performance across the valvetrain.
- Single PAC-enhanced spring made from a special alloy
- Dedicated intake and exhaust spring configuration
- Requires specific Ferrea titanium retainer and spring seat locators
- Supports controlled valve operation at elevated RPM levels
- Warning: maximum valve net lift must not be exceeded due to valvetrain clearance limits
Specifications:
- Application: GR Corolla 1.6L G16E-GTS DOHC 12 valves
- Outside Diameter: 22.53 mm
- Inside Diameter: 15.52 mm
- Seat Pressure: 90 lbs @43.3 mm (INT) / 90 lbs @45 mm (EXH)
- Open Pressure: 190 lbs @33.3 mm (INT) / 190 lbs @35 mm (EXH)
- Rate: 253 lbs/inch
- Coil Bind: 30.5 mm
- Max Net Lift: 12 mm (INT) / 12 mm (EXH)
- Required Components: Ferrea Titanium Retainer E11152, Spring Seat Locator SL1186 (Intake), Spring Seat Locator SL1187 (Exhaust)
