EVENTURI EVE-M2C-CF-INT Intake System (Carbon) for BMW M2 Competition (F87)

Description EVENTURI EVE-M2C-CF-INT Intake System (Carbon) for BMW M2 Competition (F87)

The EVENTURI EVE-M2C-CF-INT carbon intake system for the BMW M2 Competition (F87) is designed to optimize airflow to the twin-turbocharged engine, resulting in significant gains in performance and throttle response. With a proven increase of 12–20 hp and 12–16 ft-lb of torque, this system leverages patented Venturi housing technology and sealed carbon ducts to maintain low intake temperatures and reduce turbo drag. Unlike conventional cone filters, the system invokes the Venturi effect to deliver smooth, laminar airflow with minimal restriction.

Utilizing high-grade prepreg carbon fiber and bespoke filtration elements, the system ensures optimal efficiency under dynamic driving conditions. Integrated MAF sensor mounts and precisely shaped carbon intake tubes maintain consistent airflow velocity across complex routing. From its structural integrity to its refined aesthetic, the Eventuri system is engineered to enhance both engine performance and visual presentation in the engine bay.

• Performance gains of 12–20 hp and 12–16 ft-lb torque
• Patented Venturi housings for efficient laminar airflow
• Sealed carbon ducts to isolate ambient intake air from engine heat
• Optimized intake tube geometry for consistent flow and MAF accuracy
• Full prepreg carbon fiber construction with CNC-machined components

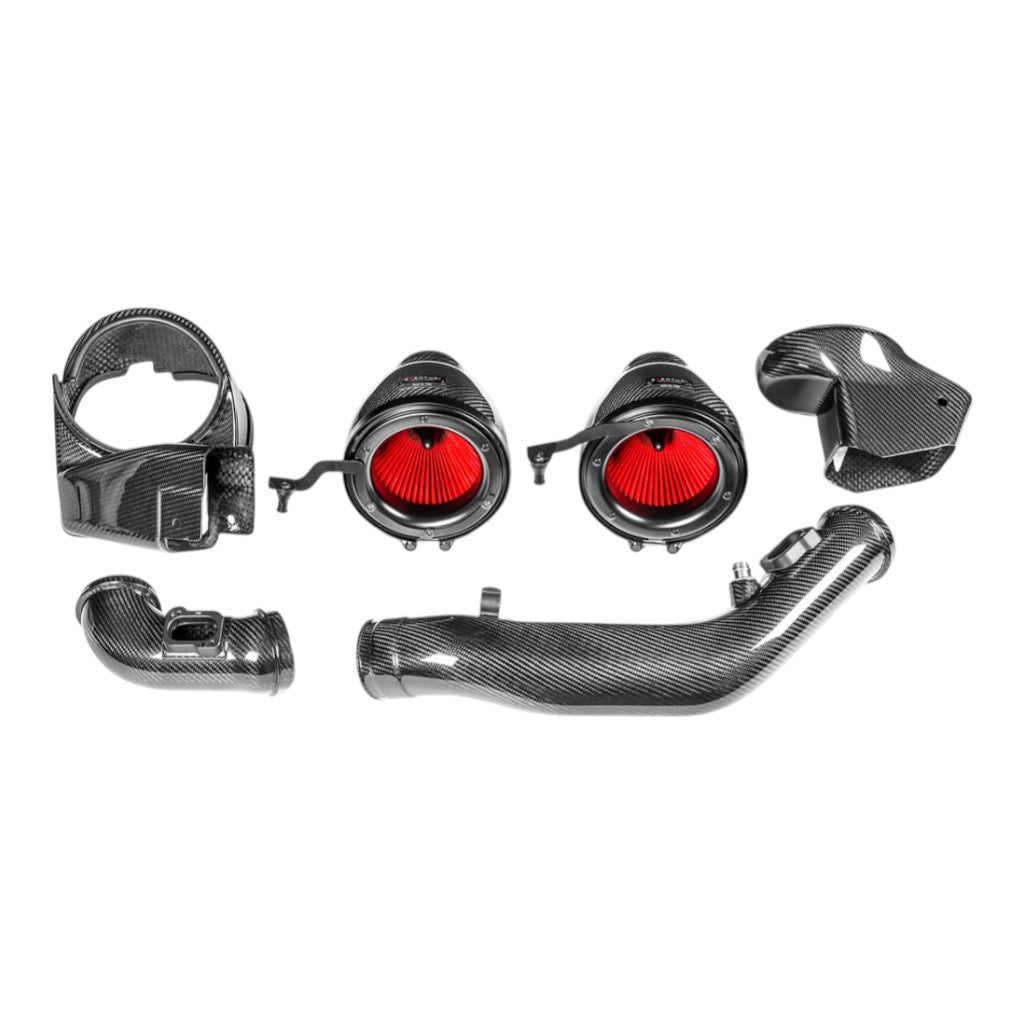

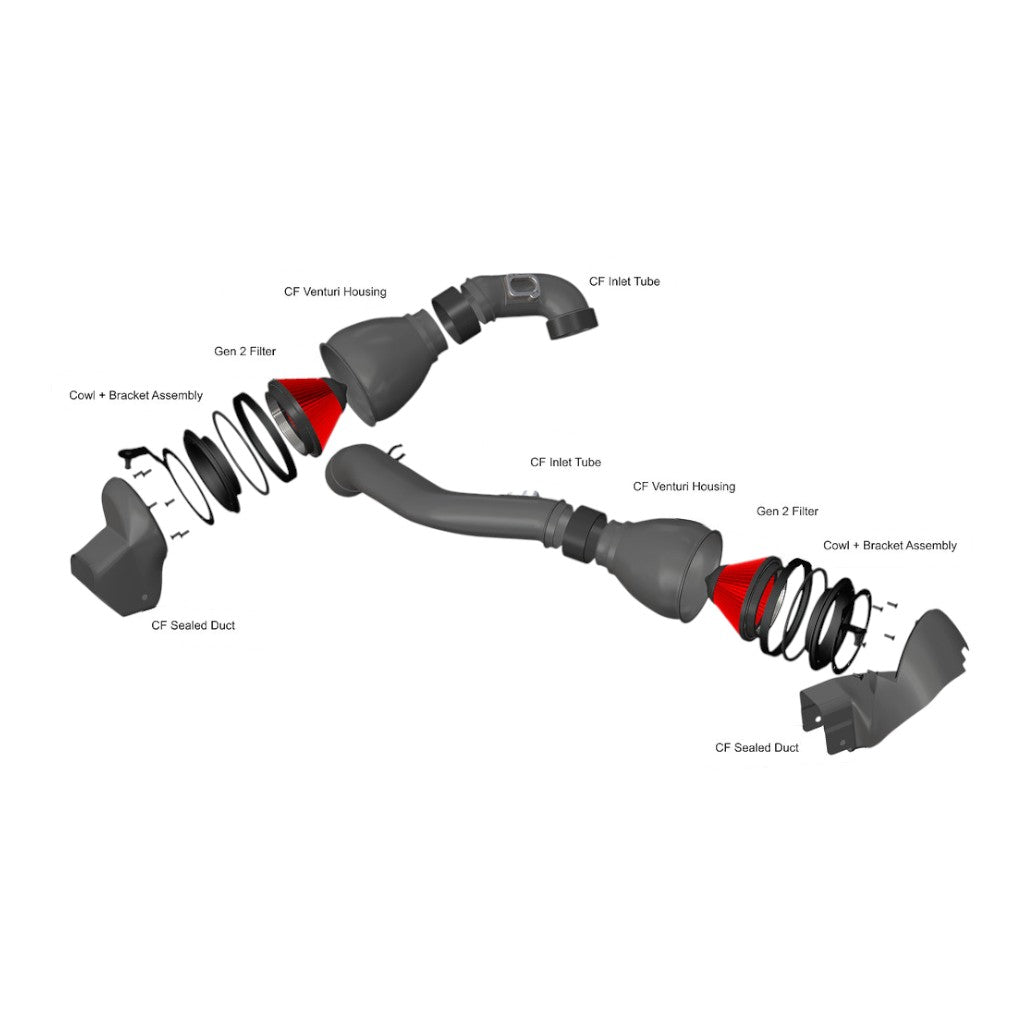

Kit Contents:

• 2 × Patented Carbon Fiber Venturi Housings
• 2 × Bespoke High Flow Generation 2 Filters
• 2 × Aluminium Cowls for smooth air entry
• Left and Right Carbon Fiber Intake Tubes with integrated MAF mounts
• 2 × Carbon Fiber Intake Ducts
• Laser Cut Stainless Steel Mounting Brackets
• High-Quality Silicone Couplers with BMW-Spec Hose Clamps

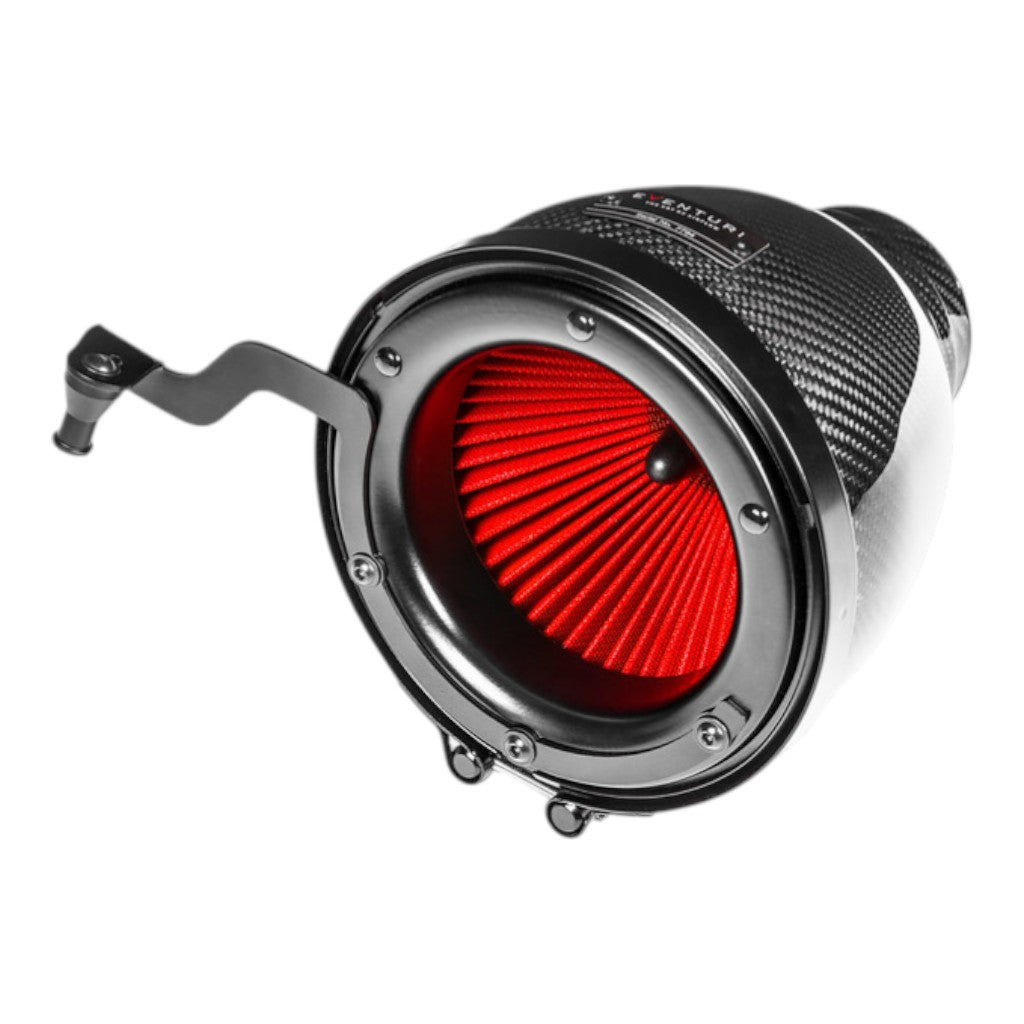

Filter Housing Assemblies:

Each housing integrates a high-flow filter, aluminium air cowl, and patented carbon pod. The carbon structure acts as a large velocity stack that induces the Venturi effect—accelerating airflow while maintaining laminar flow. This configuration ensures uniform air velocity at the housing outlet, maximizing flow efficiency and turbo response.

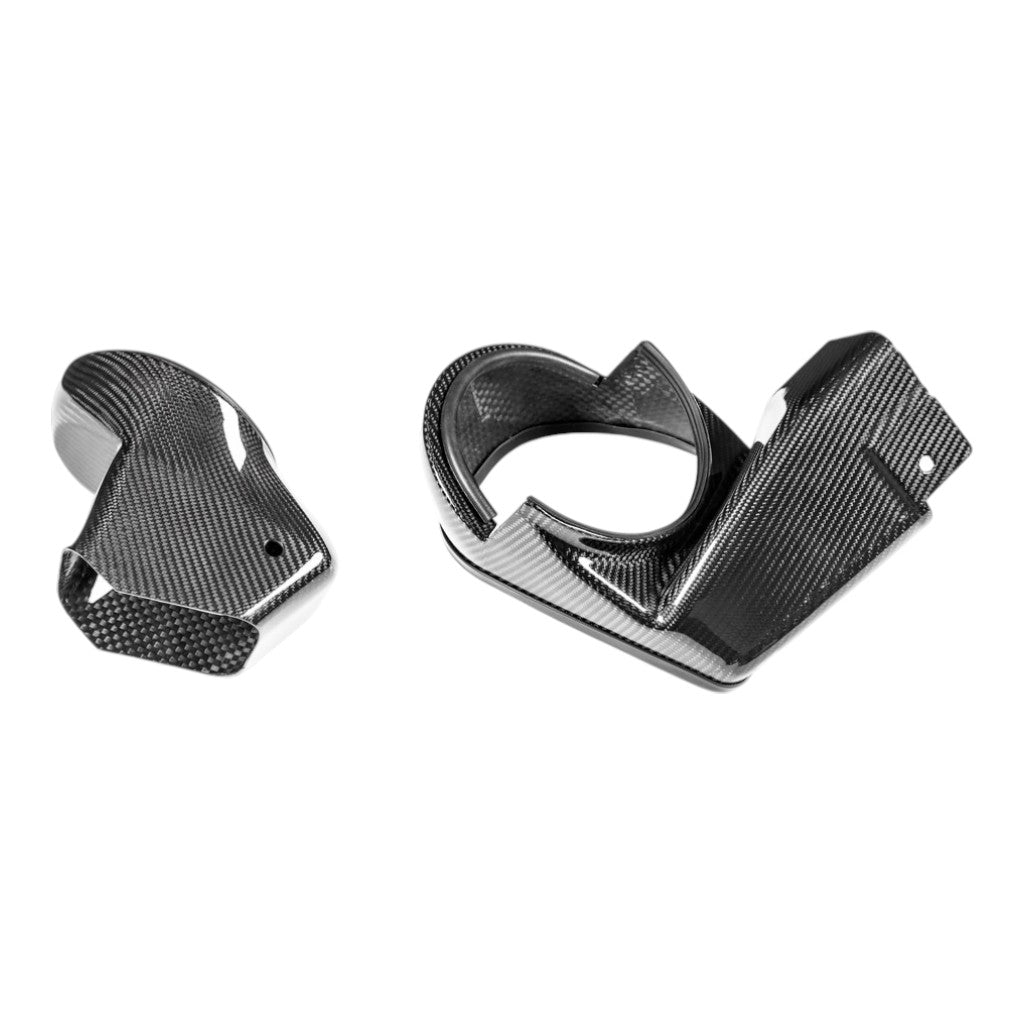

Carbon Sealing Ducts:

The system includes carbon ducts that seal against the filter housings and align with OEM cold air channels. These ducts guide ambient air directly into the filters while isolating engine bay heat, preserving intake air density and reducing heat soak.

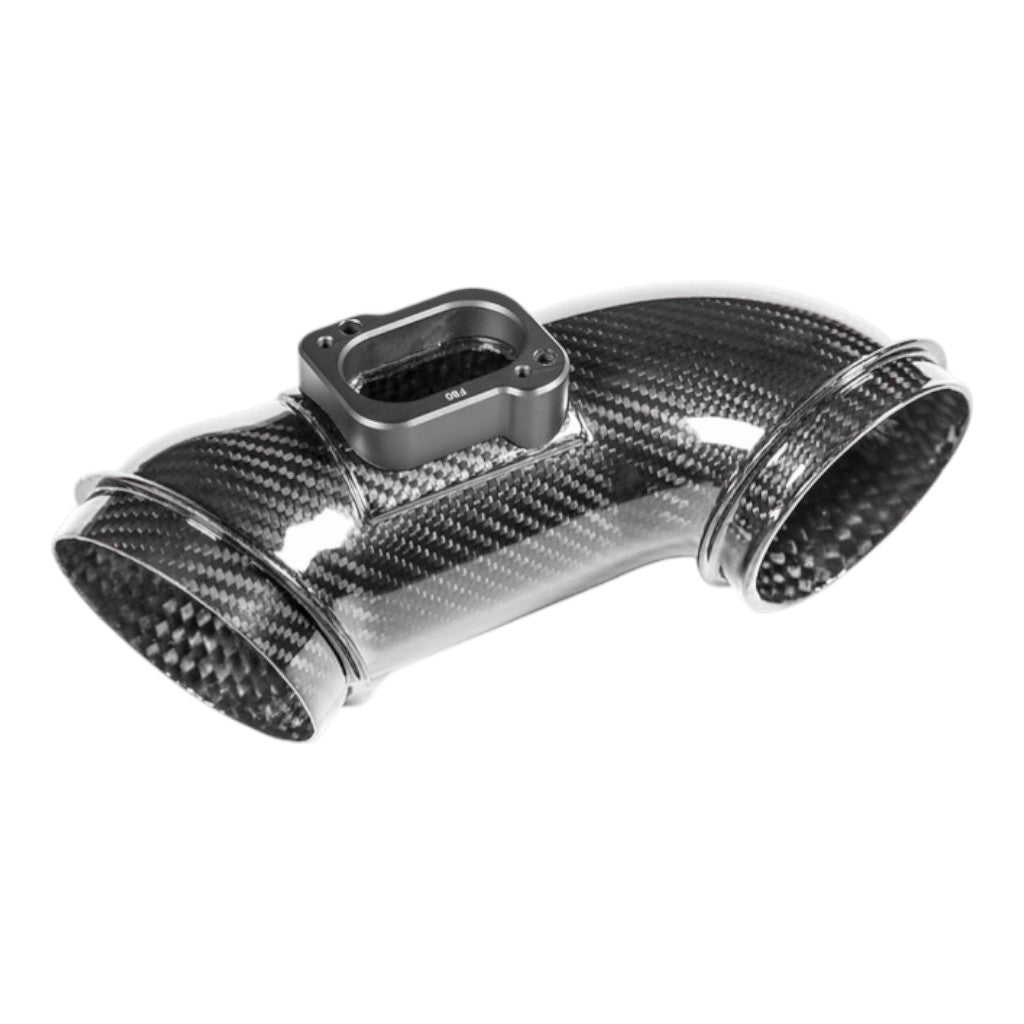

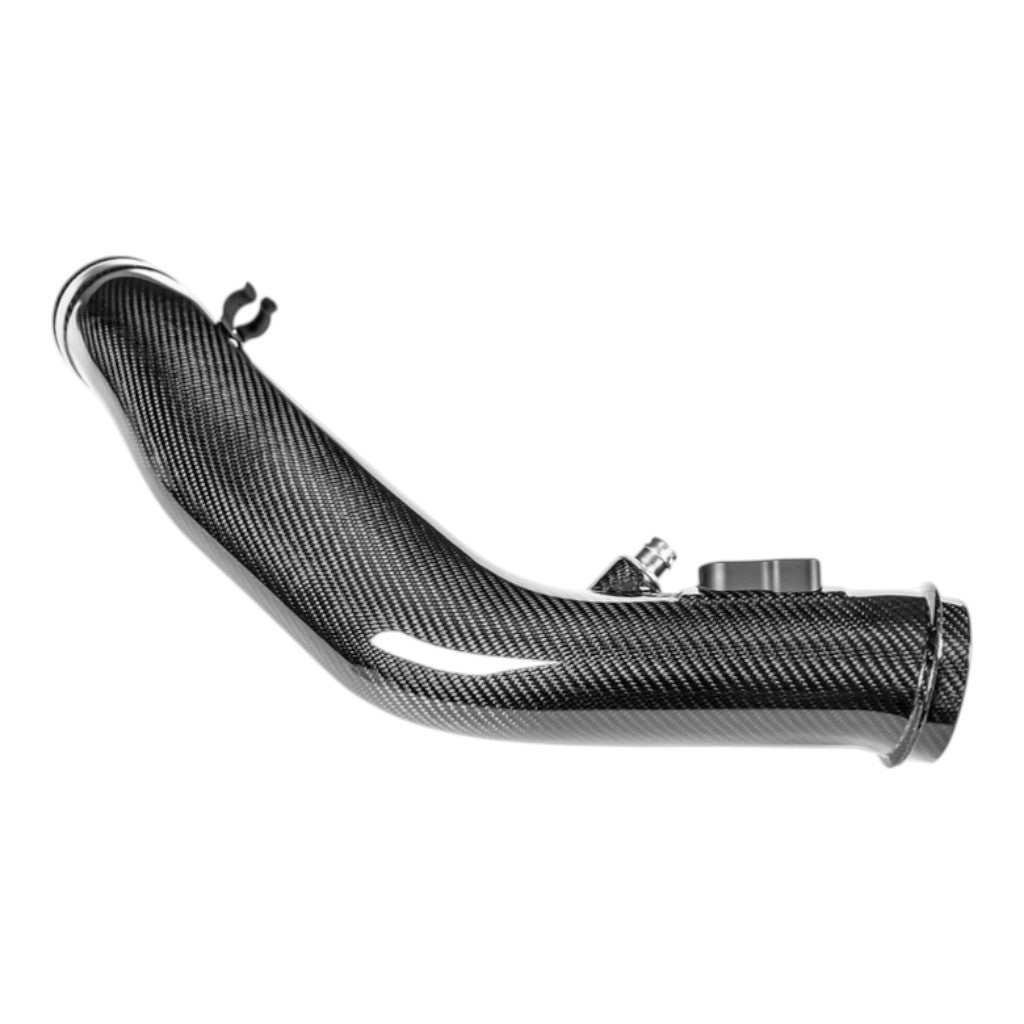

Carbon Intake Tubes:

Crafted from 100% prepreg carbon fiber, the intake tubes feature CNC-machined aluminium MAF sensor mounts. The left-side tube provides a direct path to the turbo, while the right-side tube is shaped to clear engine bay obstructions using a gradually transitioning oval-to-round cross-section—ensuring consistent cross-sectional area and undisturbed airflow velocity.
