EVENTURI EVE-HCN-CF-INT Carbon Air Intake System for LAMBORGHINI Huracan
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
EVENTURI EVE-HCN-CF-INT Carbon Air Intake System for LAMBORGHINI Huracan
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Performance Gain: 12-15hp, 20Nm
The Eventuri Huracan intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

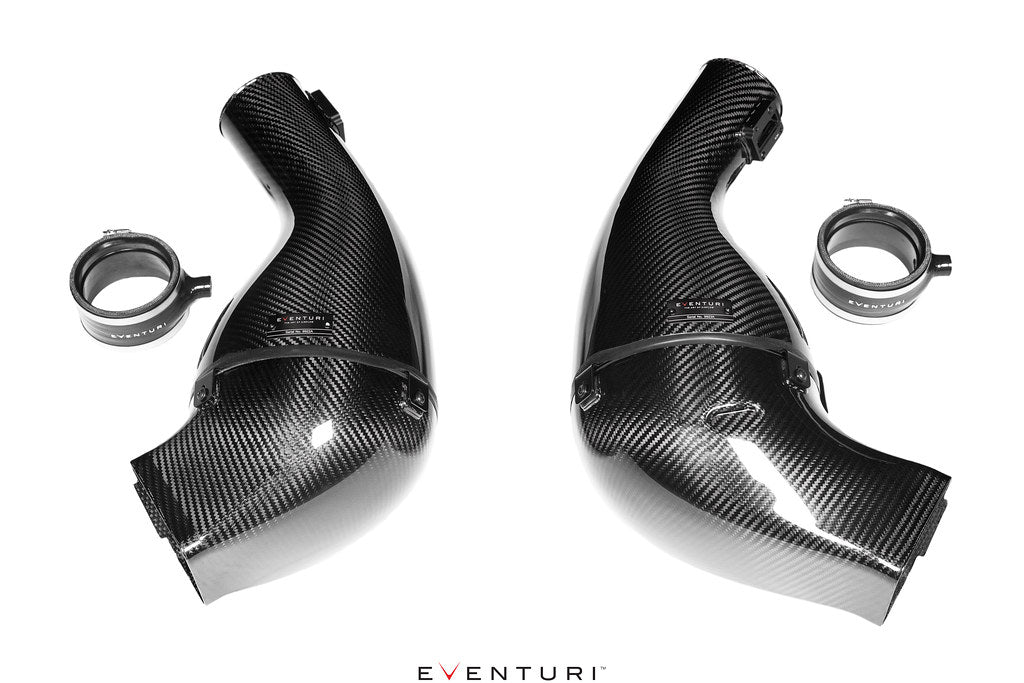

Each intake system consists of:
- Carbon Fiber Patented Venturi Filter Housings
- Bespoke High Flow Dry Cone Filters
- Carbon Fiber Inlet Ducts
- Custom Silicon Couplers
- OPF (DWNA) Breather adapter
- Laser Cut Heat Shields
- Laser Cut Stainless Steel Brackets

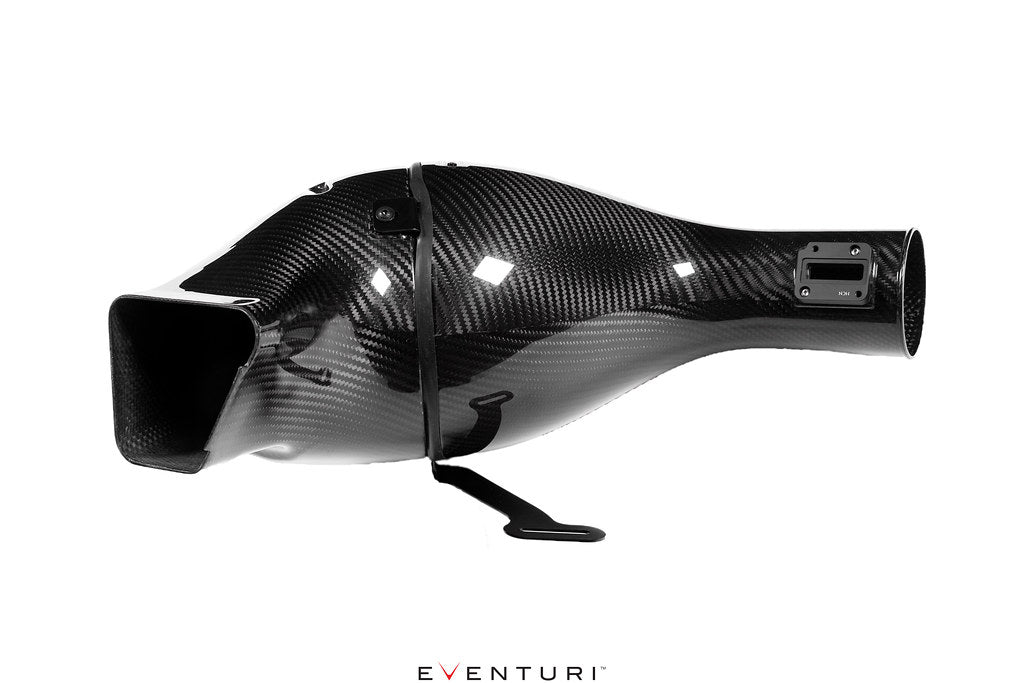

Patented Venturi Filter Housing Assembly

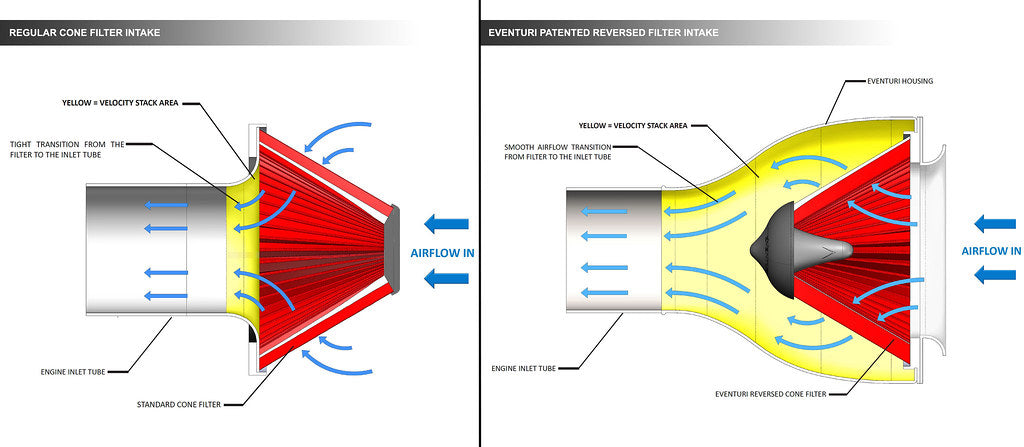

The filter housings comprise of a bespoke high flow filter, aluminium cowl, laser cut brackets and the carbon pod itself. The carbon pod shrouds the reverse mounted filter and smoothly shape the airflow down to the intake tubes. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patented design and a regular intake system. Further details can be read in the Technology page.

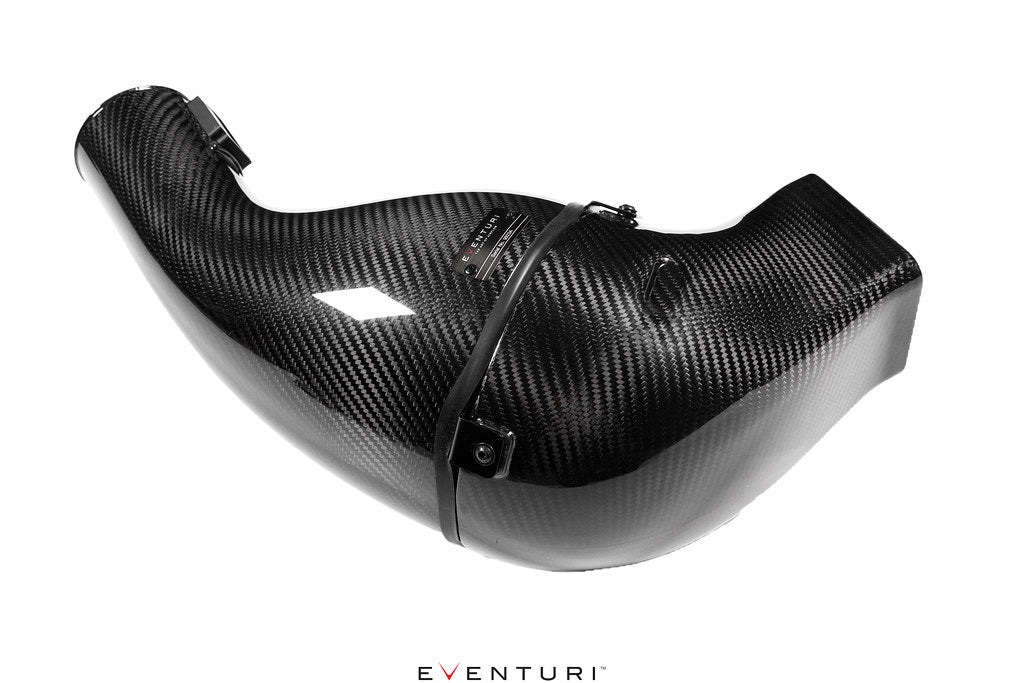

Carbon Fiber Intake Duct
The duct seals to the housing and channels ambient air from the side air outlets to the filter. It fits over the OEM ducting system and smoothly transitions to the circular filter housing shape. In order to ensure a good seal against engine bay heat, it seals to the filter housings using neoprene gaskets.

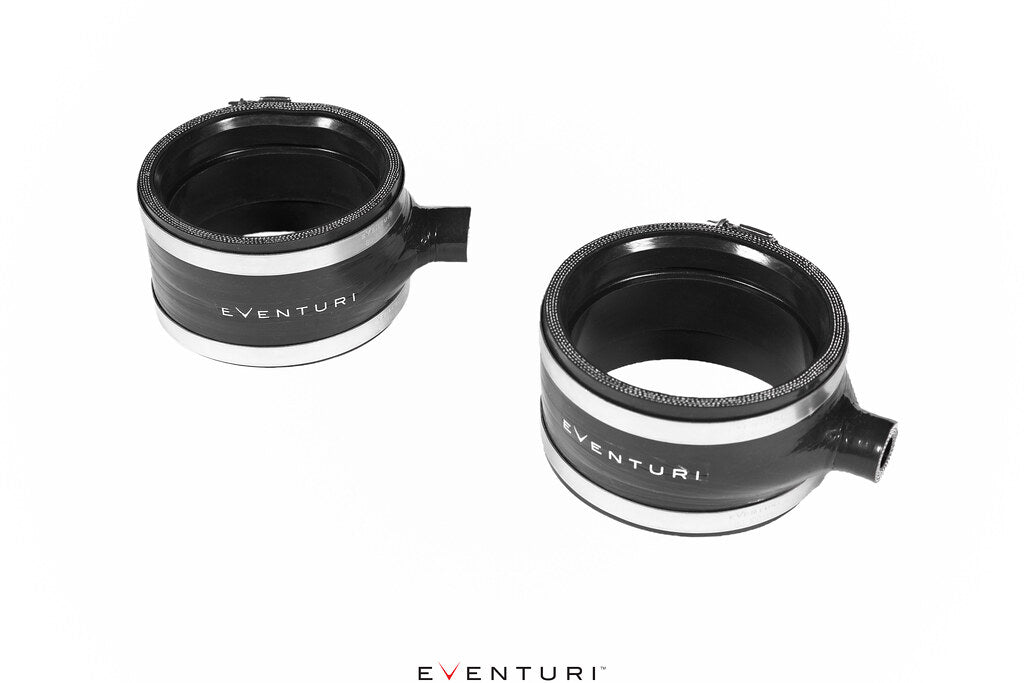

Custom Silicon Couplers
The filter housings secure to the inlet manifold with our custom couplers which replace the OEM flexible hoses. Our couplers provide a much smoother flow path to the plenum and feature internal steps to match to the walls of the throttle body ensuring there are no steps for the airflow which would create turbulence. Movement is catered for in the housing assembly itself.
