EVENTURI EVE-F8XMV2-CF-INT Intake System Ver2 (Carbon) for BMW M3 (F80) / M4 (F82)

Description EVENTURI EVE-F8XMV2-CF-INT Intake System Ver2 (Carbon) for BMW M3 (F80) / M4 (F82)

The EVENTURI EVE-F8XMV2-CF-INT Version 2 carbon intake system for BMW M3 (F80) and M4 (F82) is a comprehensive solution engineered to deliver maximum performance and consistent intake air temperatures (IAT). With measured gains of 15–20 hp and 18–23 ft-lb of torque, this system utilizes sealed filter housings, carbon intake ducts, and front scoops to create an efficient, thermally stable intake pathway. The patented Venturi housings are shaped to accelerate airflow while maintaining laminar conditions, significantly reducing resistance and improving turbo response.

Every component—from the scoops to the ducts and intake tubes—is designed to form a unified system that ensures consistent delivery of cool ambient air. Constructed from 100% prepreg carbon fiber and CNC-machined aluminium, the system integrates seamlessly into the engine bay, not only enhancing performance but also elevating the under-hood aesthetics with its OEM-matched carbon weave.

• Performance increase of 15–20 hp and 18–23 ft-lb torque
• Version 2 sealed housings reduce heat soak and stabilize IAT
• Patented Venturi filter housings for accelerated, laminar airflow
• Carbon ducts and scoops ensure consistent ambient air feed
• Complete system integration with premium carbon and aluminium construction

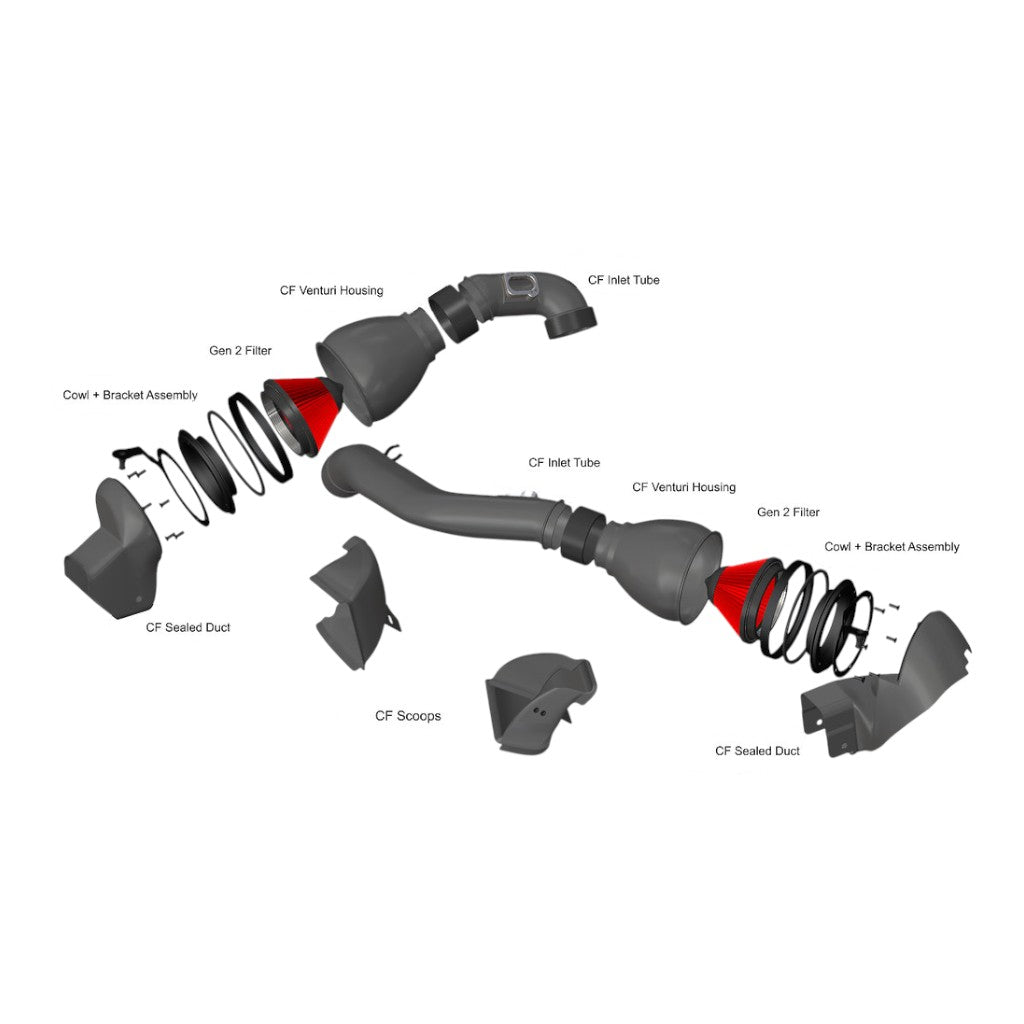

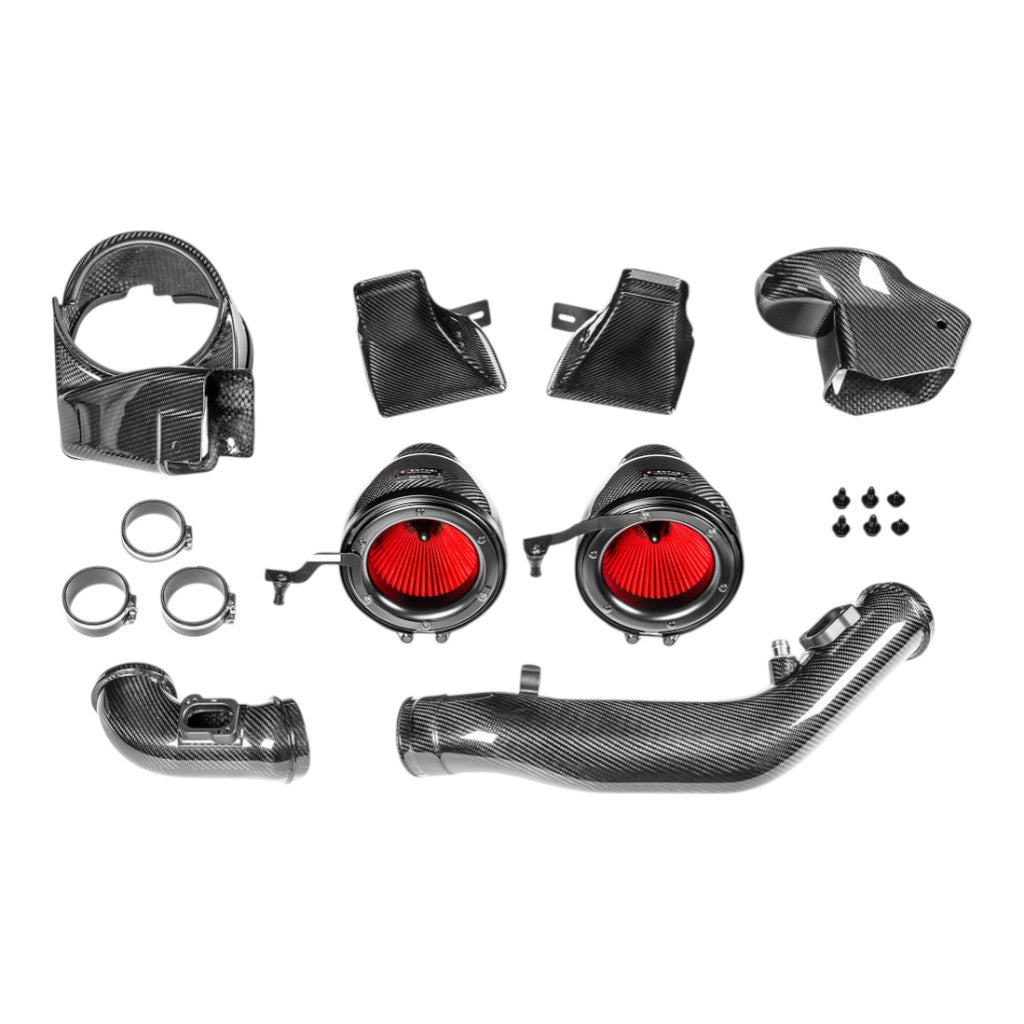

Kit Contents:

• 2 × Carbon Fiber Venturi Filter Housings
• 2 × High Flow Generation 2 Filters
• 2 × Aluminium Cowls for smooth air entry
• Left and Right Carbon Fiber Intake Tubes with CNC MAF Mounts
• 2 × Carbon Fiber Sealed Intake Ducts
• 2 × Carbon Fiber Front Air Scoops
• Laser Cut Stainless Steel Brackets
• High-Quality Silicone Couplers with BMW-Spec Hose Clamps

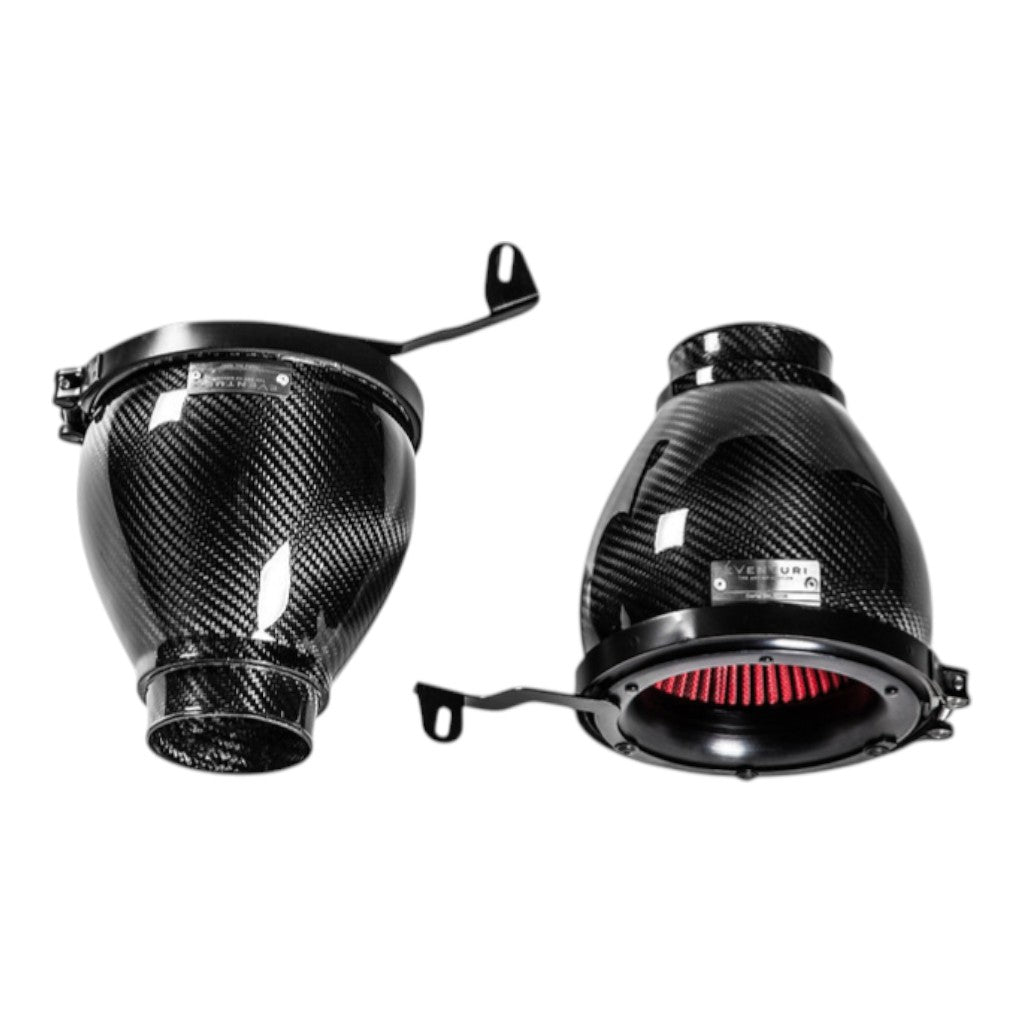

Carbon Filter Housings:

Each housing includes a high-flow reverse-mounted filter, aluminium entry cowl, and patented carbon pod. The internal geometry promotes the Venturi effect—accelerating the airflow through a smooth taper to the intake tube while maintaining laminar flow. This creates an even velocity profile, minimizing restriction and maximizing turbo efficiency.

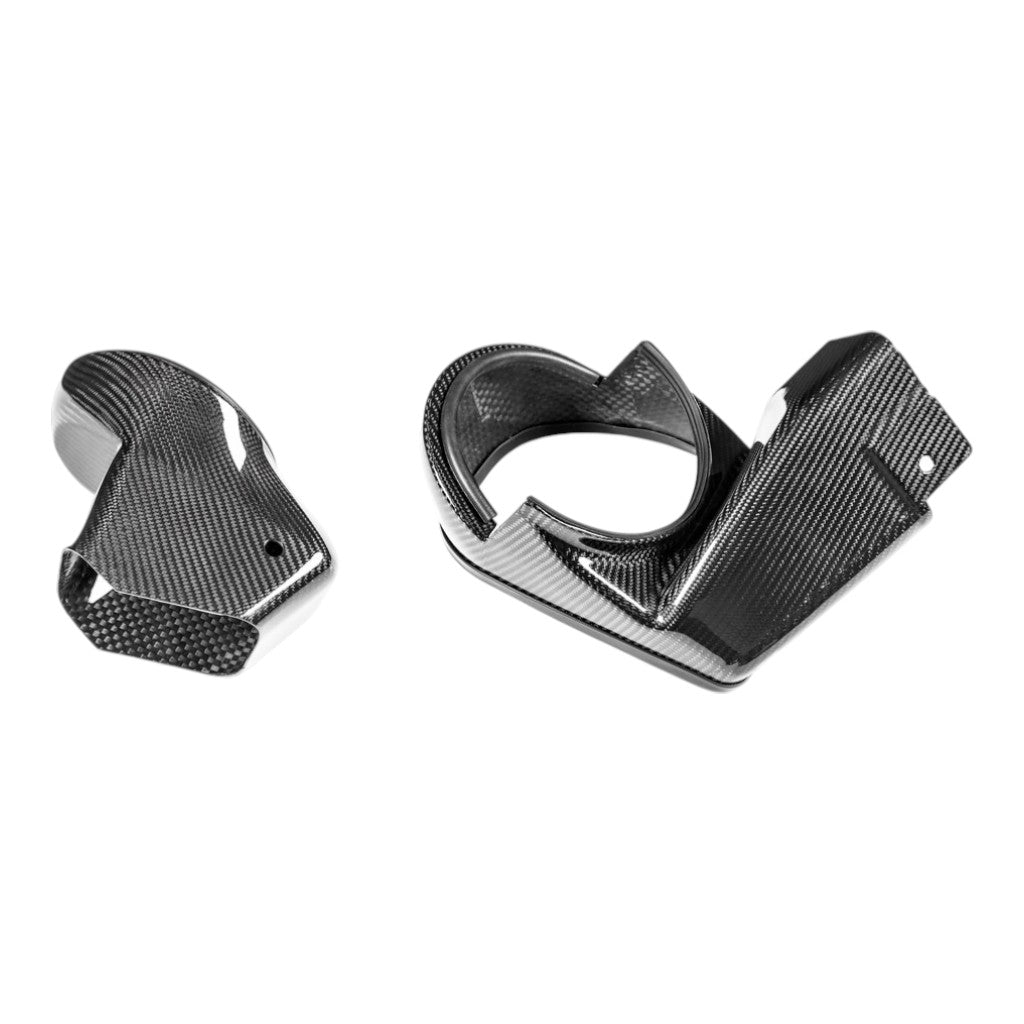

Carbon Sealing Ducts:

The ducts are precisely shaped to seal against the filter housings and overlay the factory cold air channels. Their function is to direct cool ambient air into the housings while isolating the filters from hot engine bay air, preserving intake air density and preventing heat soak.

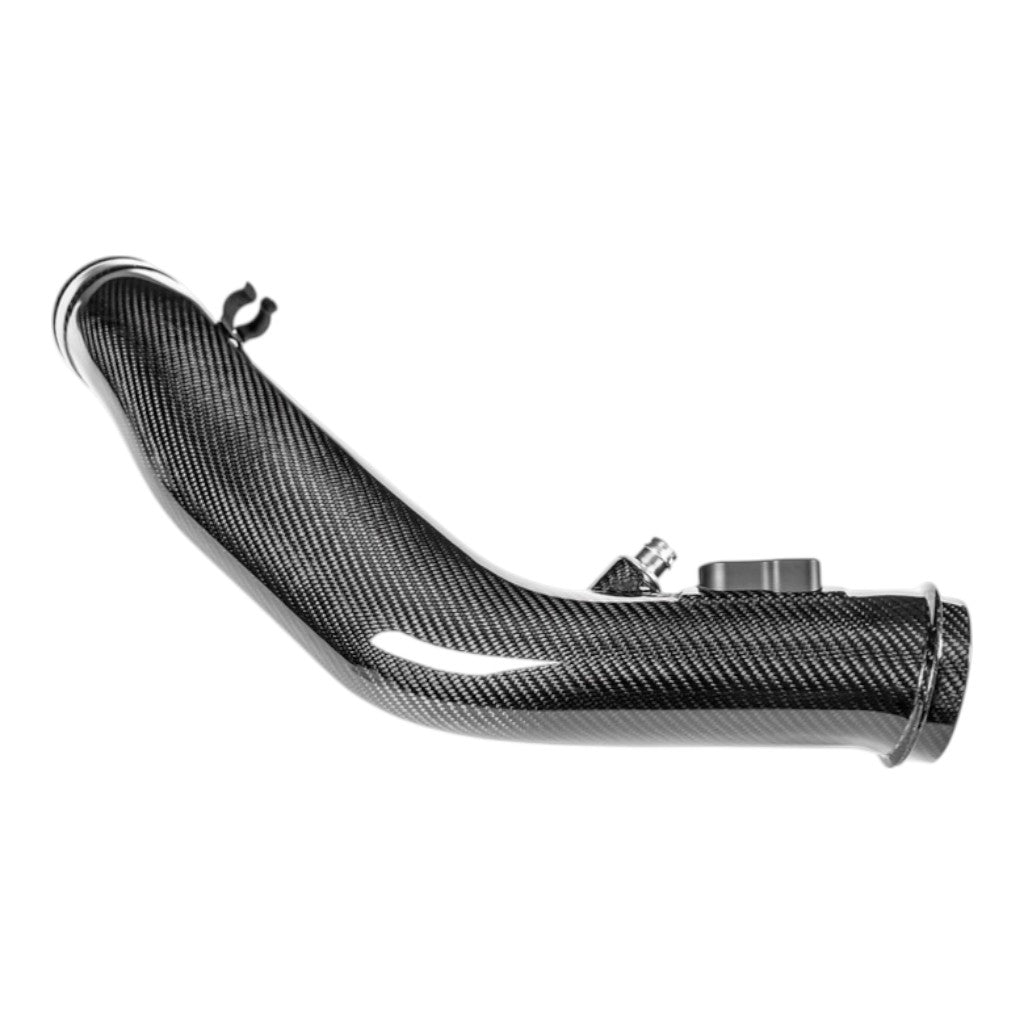

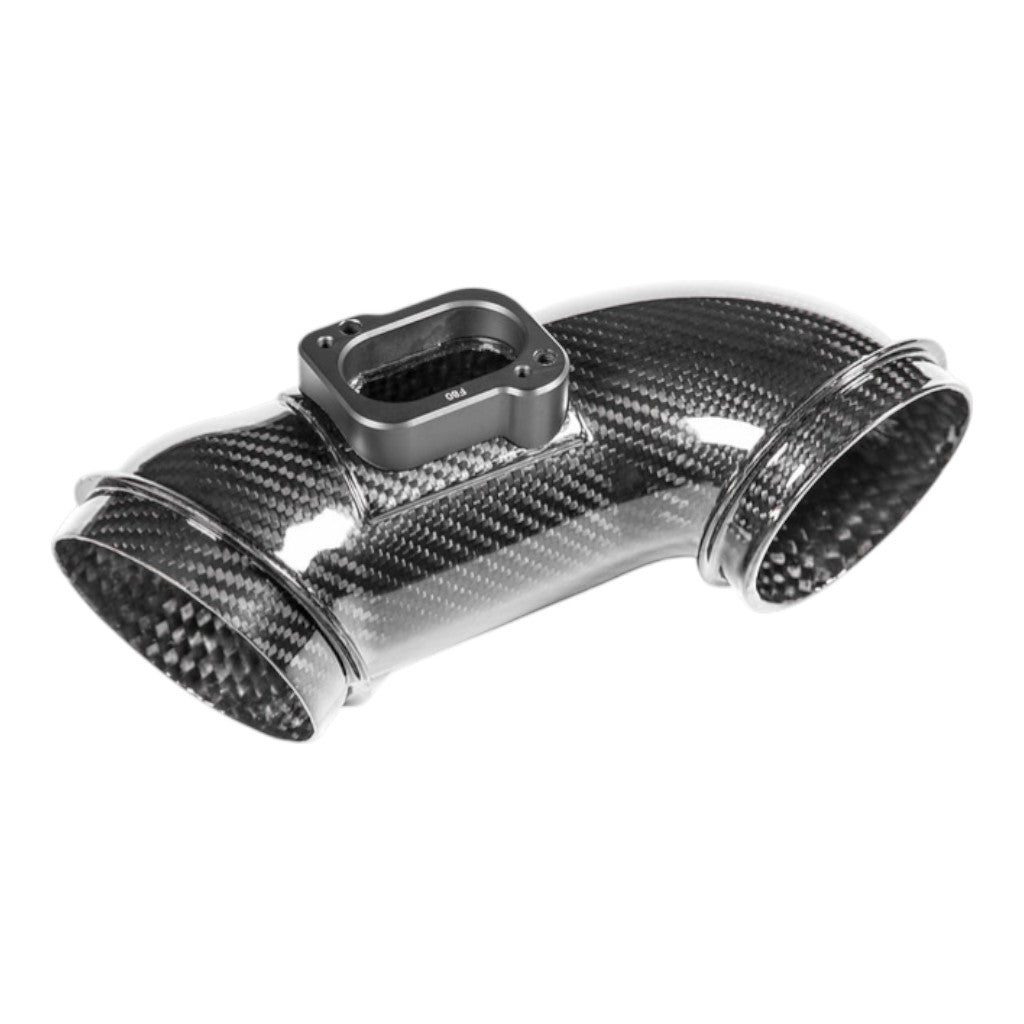

Carbon Intake Tubes:

Made from 100% prepreg carbon fiber, the intake tubes integrate CNC-machined aluminium mounts for MAF sensors. The left-side tube provides a direct, gradual path to the turbo inlet. The right-side tube transitions from circular to oval and back to circular to clear the fan shroud and strut brace—maintaining consistent cross-sectional area to preserve airflow velocity.

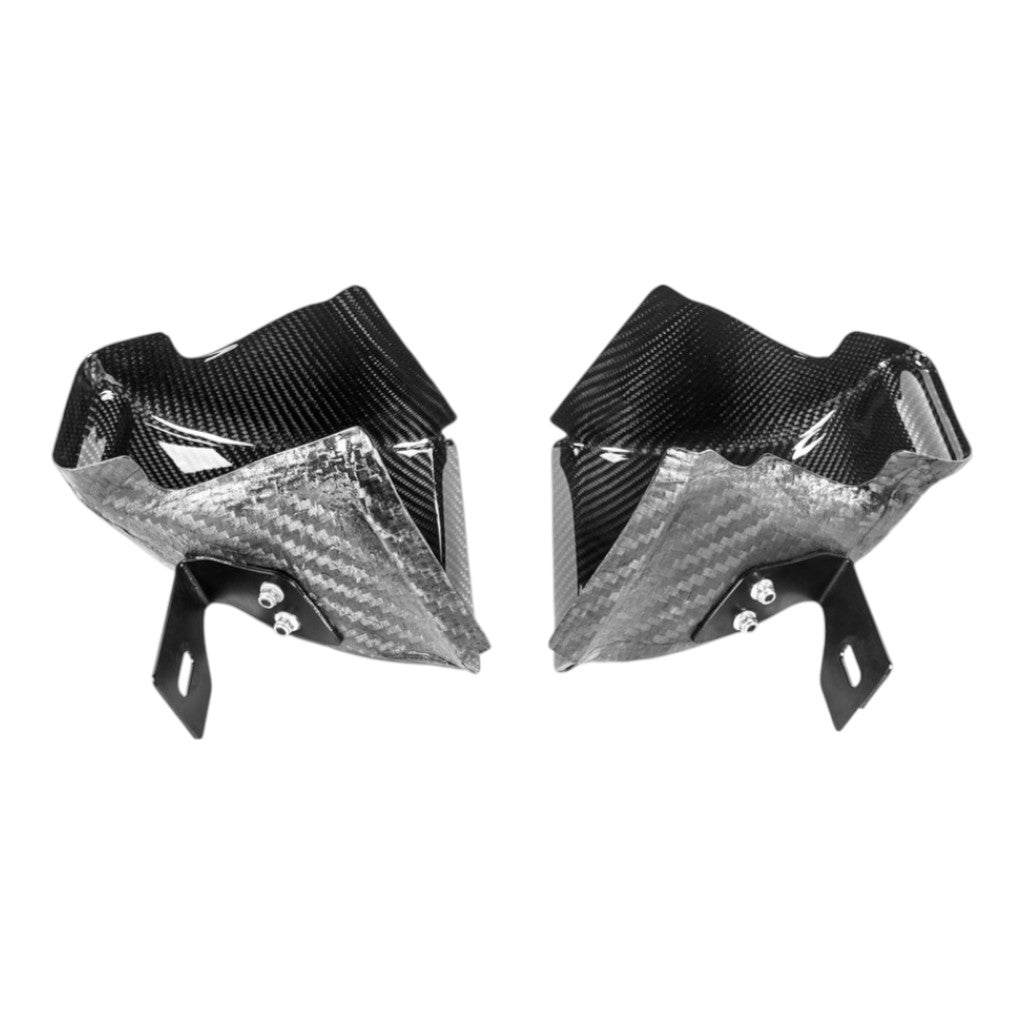

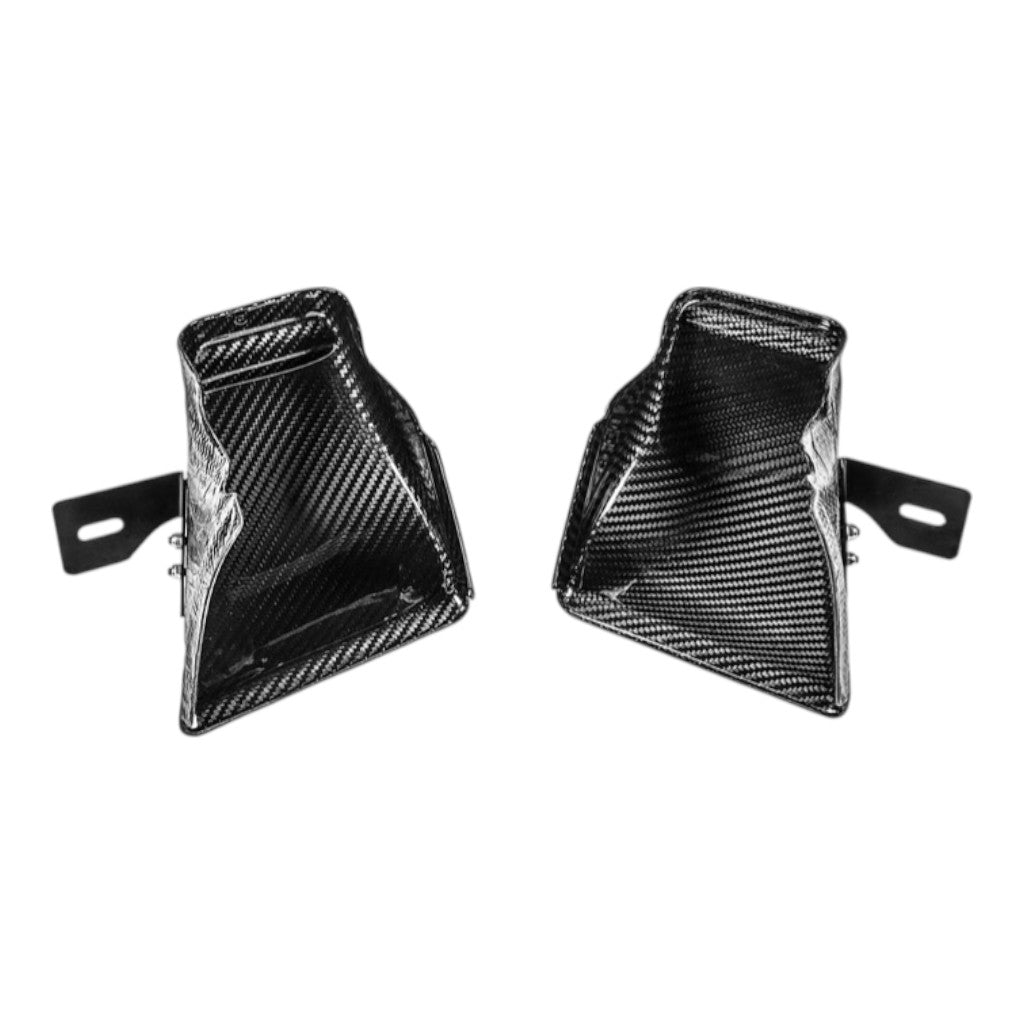

Carbon Air Scoops:

Designed to maximize ambient air capture, the carbon front scoops channel airflow directly into the sealed ducts. Unlike flat-profile scoops that disrupt flow, Eventuri’s sculpted geometry guides incoming air efficiently into the intake path—crucial for maintaining low IATs during both stationary and high-speed conditions.
