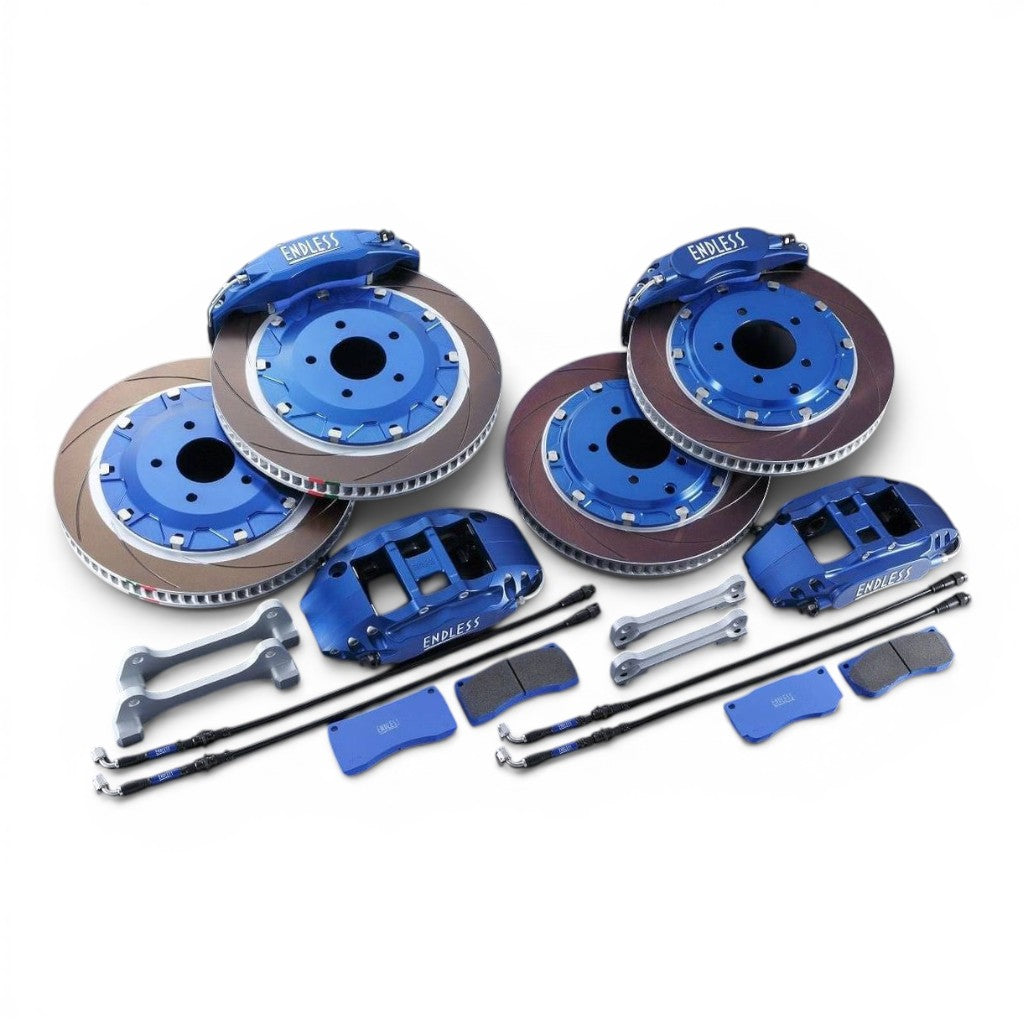

ENDLESS EGZPXE52 Front & Rear Brake Kit 6 Potwagon & S4r for NISSAN Elgrand (PE52 / TE52 / PNE52 / TNE52)

Description ENDLESS EGZPXE52 Front & Rear Brake Kit 6 Potwagon & S4r for NISSAN Elgrand (PE52 / TE52 / PNE52 / TNE52)

This dedicated minivan and wagon caliper inherits the design philosophy of the ENDLESS caliper range and uses a lightweight, high-rigidity forged aluminum body. Despite its compact dimensions, it uses staggered 27 mm, 32 mm, and 38 mm pistons to prevent uneven brake pad wear.

It improves braking performance on heavy wagons and minivans while also providing a strong visual upgrade. When combined with large-diameter brake rotors after a wheel upgrade, it delivers a significant improvement in braking performance and appearance.

The S4r is a cost-effective rear 4-piston caliper developed for street users who already have an ENDLESS front caliper but require a more affordable rear option than Racing 4. The forged construction is retained while the body is designed to be compact.

• Lightweight, high-rigidity forged aluminum body
• Staggered 27 mm, 32 mm, and 38 mm pistons to prevent uneven brake pad wear
• Designed for heavy wagons and minivans
• Compact forged S4r rear 4-piston caliper body

Specifications:

• Caliper: 6POT Compact Mini Wagon (EC671) / S4r (EC480)
• Brake pad type: RCP120 / RCP167
• Brake disc size: 355 x 32 mm / 332 x 30 mm
• Brake hose: ECBHE52F / ECBHE52R
