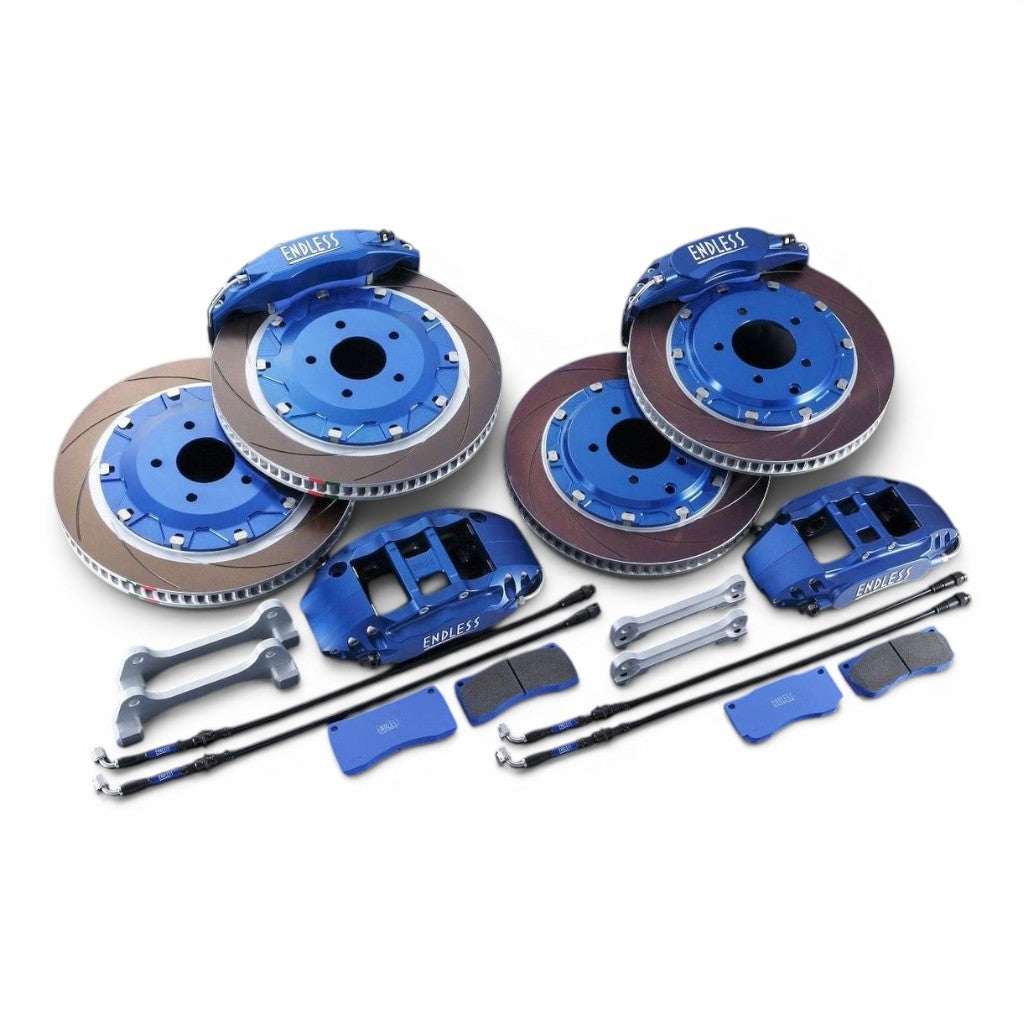

ENDLESS EDYSXZ34 Front & Rear Brake Kit MONO 6-T2 & 4r for NISSAN Fairlady Z (Z34)

Description ENDLESS EDYSXZ34 Front & Rear Brake Kit MONO 6-T2 & 4r for NISSAN Fairlady Z (Z34)

This is a monoblock caliper forged under thousands of tons of pressure. After four years of development, repeated testing, racing use, and numerous specification changes, the Racing MONO 6 achieved the lightweight, high-rigidity body required for competition.

The challenging piston cylinder machining was overcome using advanced special techniques. The finished body is treated with ultra-hard anodizing. This is the culmination of ENDLESS's “never-ending challenge” and unwavering commitment to forging.

This is a 4-piston version of the monoblock caliper, forged under thousands of tons of pressure. Through repeated testing and detailed design refinements, the RacingMONO4r was perfected to achieve optimal performance in areas such as weight reduction, durability, and heat dissipation. It can accommodate wheels as small as 15 inches, expanding the range of compatible wheels.

• Racing MONO caliper body uses ultra-hard anodized aluminum.
• RacingMONO4r caliper body uses ultra-hard anodized aluminum.
• Rotor bell housing features a Toughram coating.
• Toughram coating offers superior adhesion and corrosion resistance, providing greater durability than standard colored anodizing under high-temperature circuit racing conditions.

Specifications:

• Caliper: RacingMONO6 (EC6404-FN) / RacingMONO4r (EC4606N)
• Brake pad type: RCP121 / RCP147
• Brake disc size: 355 x 32 mm / 332 x 30 mm / F: Leading R: Leading
• Brake hose: ECBHZ34F / ECBHZ34R / F: 355 x 32 (320 x 28), R: 320 x 23 (308 x 16)
