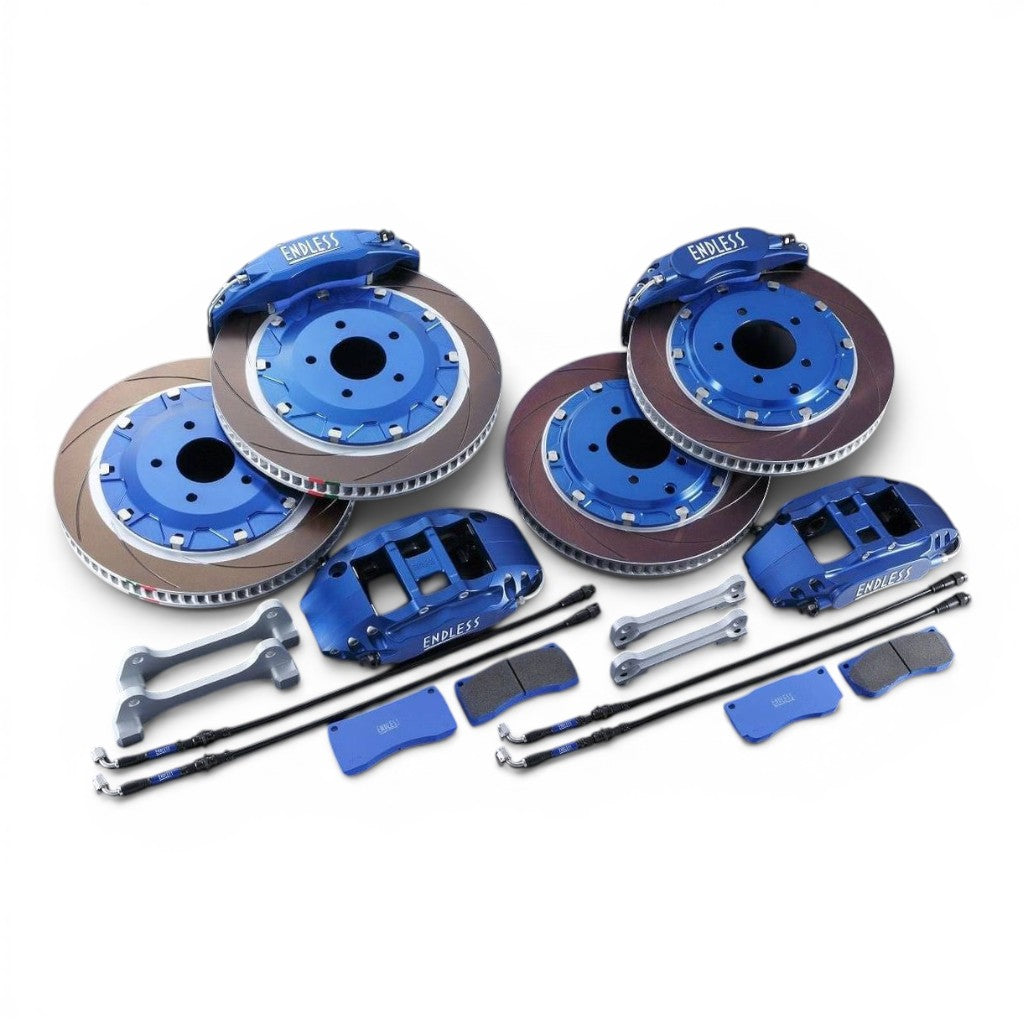

ENDLESS EDYCXDB22 Front & Rear Brake Kit Racing MONO 6 & Rear Inch Up Kit for TOYOTA Supra DB82 SZ / DB22 SZR

Description ENDLESS EDYCXDB22 Front & Rear Brake Kit Racing MONO 6 & Rear Inch Up Kit for TOYOTA Supra DB82 SZ / DB22 SZR

This is a monoblock brake caliper forged under thousands of tons of pressure. After four years of development, one year from prototype completion, repeated testing, racing use, and numerous specification changes, the Racing MONO 6 achieved the lightweight, high-rigidity body required for competition. The challenging piston cylinder machining was overcome using advanced special techniques. The finished body is treated with ultra-hard anodizing.

The Racing MONO brake caliper body uses ultra-hard anodized aluminum. The brake rotor bell housing also features a Toughram coating, which offers superior adhesion and corrosion resistance for greater durability than standard colored anodizing, even under high-temperature circuit racing conditions.

Electric parking brakes have become common on original rear brake calipers, but their construction prevents replacement with an ENDLESS brake caliper body. ENDLESS therefore developed an inch-up kit that retains the original electric parking brake caliper and combines it with a larger brake rotor and dedicated support bracket.

Note: The kit does not include a brake caliper body.

• Monoblock brake caliper forged under thousands of tons of pressure.
• Lightweight, high-rigidity body developed for competition.
• Ultra-hard anodized aluminum brake caliper body.
• Toughram-coated brake rotor bell housing.

Specifications:

• Brake caliper: RacingMONO6 (EC6404) / Rear Inch Up Kit (CA22-ST002)
• Brake pad type: RCP121 / EP540
• Brake disc size: 370x34 mm / 345x20 mm
• Brake hose: ECBHDB82F / ECBHDB82R
